Connection
5.1 Electric
SIPART PS2 with and without HART
84 Operating Instructions, 10/2013, A5E00074631-11
Alarm module Ex i/Ex n/Ex t
①
Non-hazardous area
⑤
Fault message
②
Potentially explosive atmosphere
⑥
Limit
③
Alarm module
⑦
Switching amplifier
④
Binary input 2
⑧
Switching output

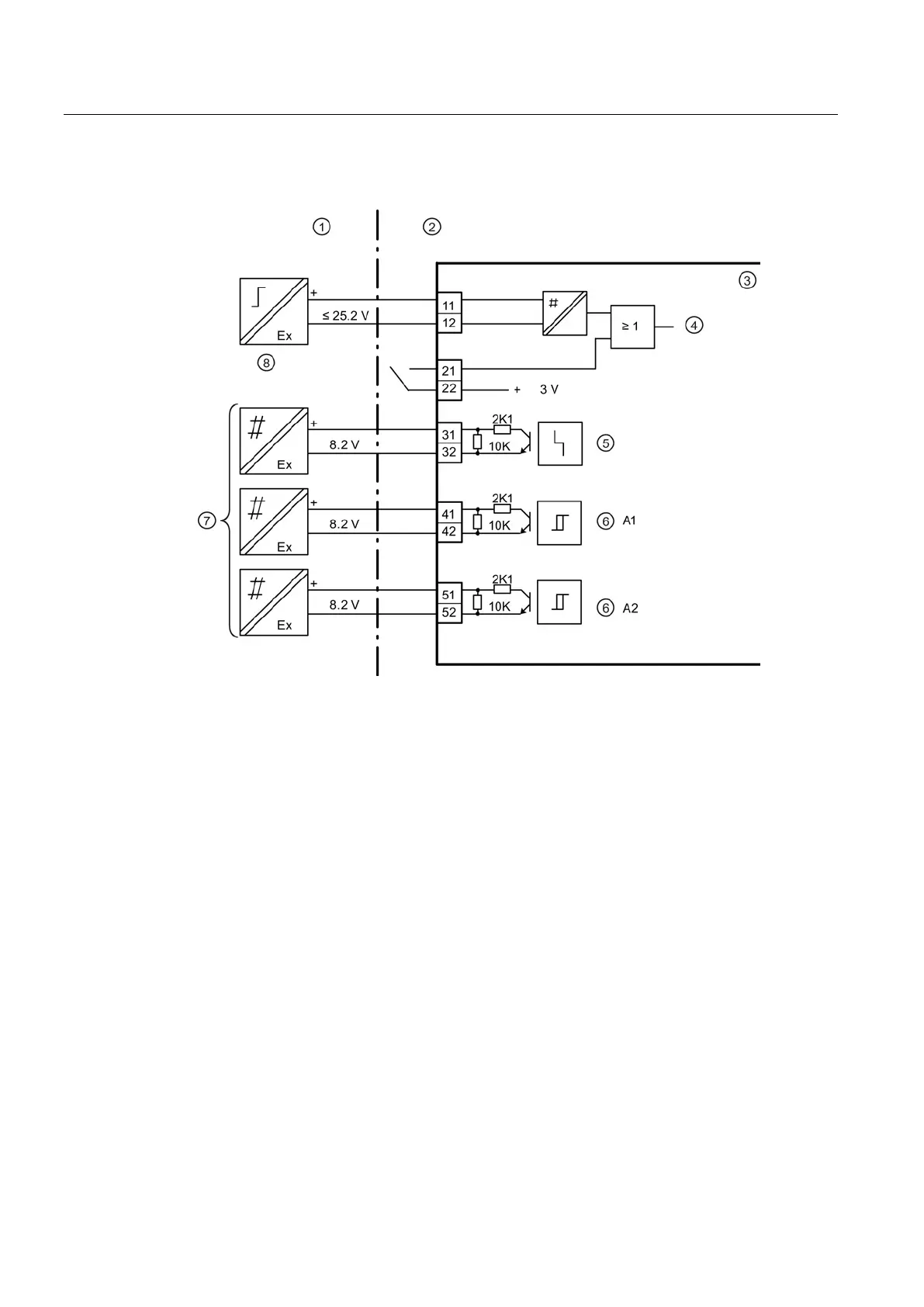

Figure 5-16 Alarm module 6DR4004-6A and 6DR4004-7A (Ex i/Ex n/Ex t)
