Chapter 3: Service program PowerSys SWT 3000 Equipment Manual
Page - 26 Edition p3_3_2x 08/09 © SIEMENS AG 2008
Programming of Flash memory in the PowerLink
Connecting the PC
For programming the CSP module the SSP connector (X14) has to be used. The connection to
the PC is established with the normal PC connection cable which is used for the PowerSys service
program. To enable the programming with “MemTool” the switch S2/1 must be in “ON” position.
1. Switch OFF the device with S1
2. To enable the programming with MemTool switch S2/1 to ON position
3. Switch ON the device
4. Press Reset S5 to proceed the upgrade

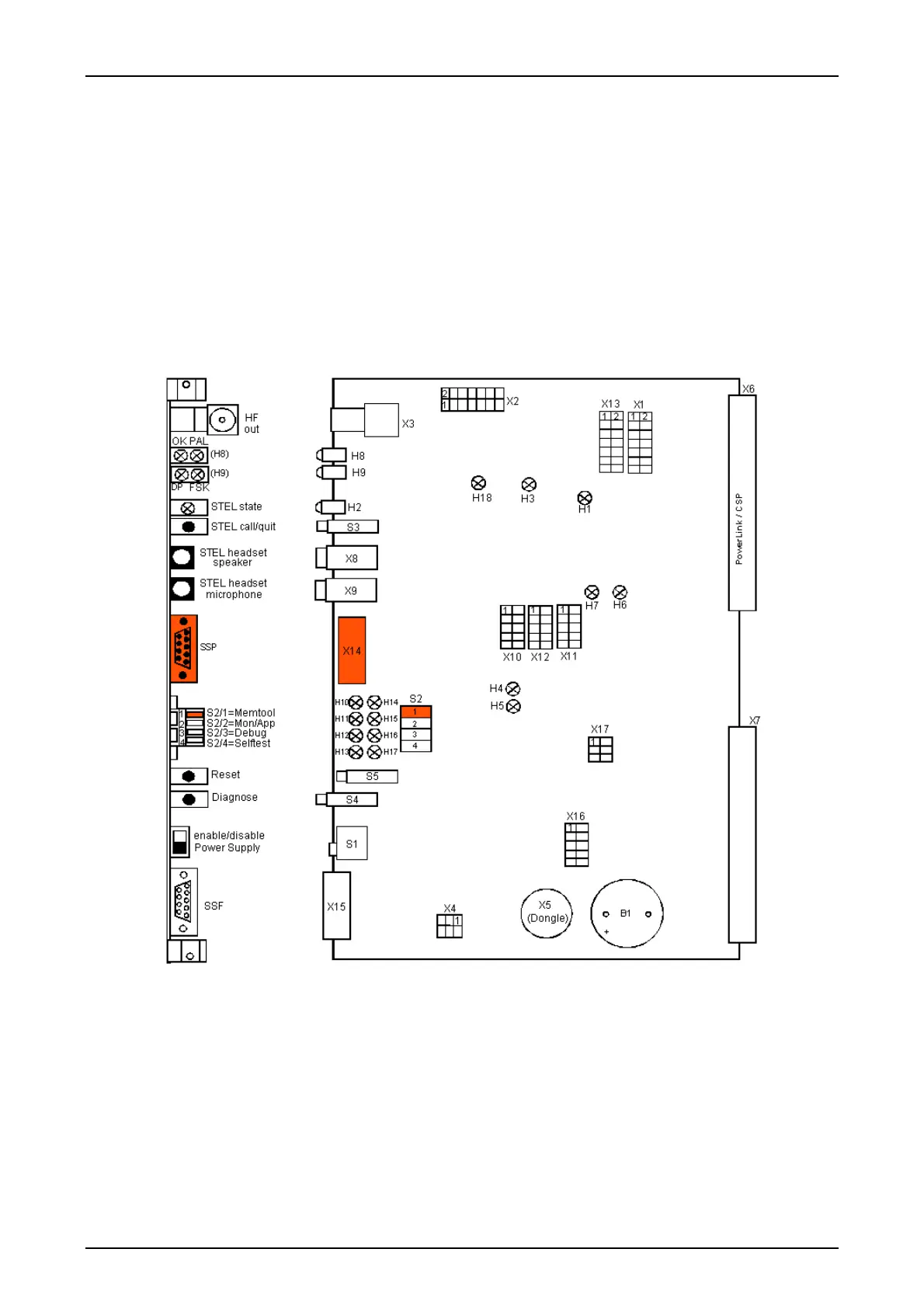

Figure 34: The CSP board
