SWT 3000 Equipment Manual Installation and Commissioning
Equipment of the sub rack with FOM slots
Due to the wider backplane only one SWT 3000 device can be installed in an ES902 sub rack.
LID1
LIA
SAL
EAL
S/N
>
>
IFC_2 IFC_1 PU3 CLE/
FOM-1
ALRS SV
LID2
OK
SWT 3000
SIEMENS
FOM-2
IFC_1 Slot 1 for the interface module IFC_x
IFC_2 Slot 2 for the interface module IFC_x
PU3f Processor module
CLE Copper line equipment (only with analog interface)
FOM-1 Slot position for the first FOM module
FOM-2 Slot position for the second FOM module
ALRS Alarm module
SV Power supply

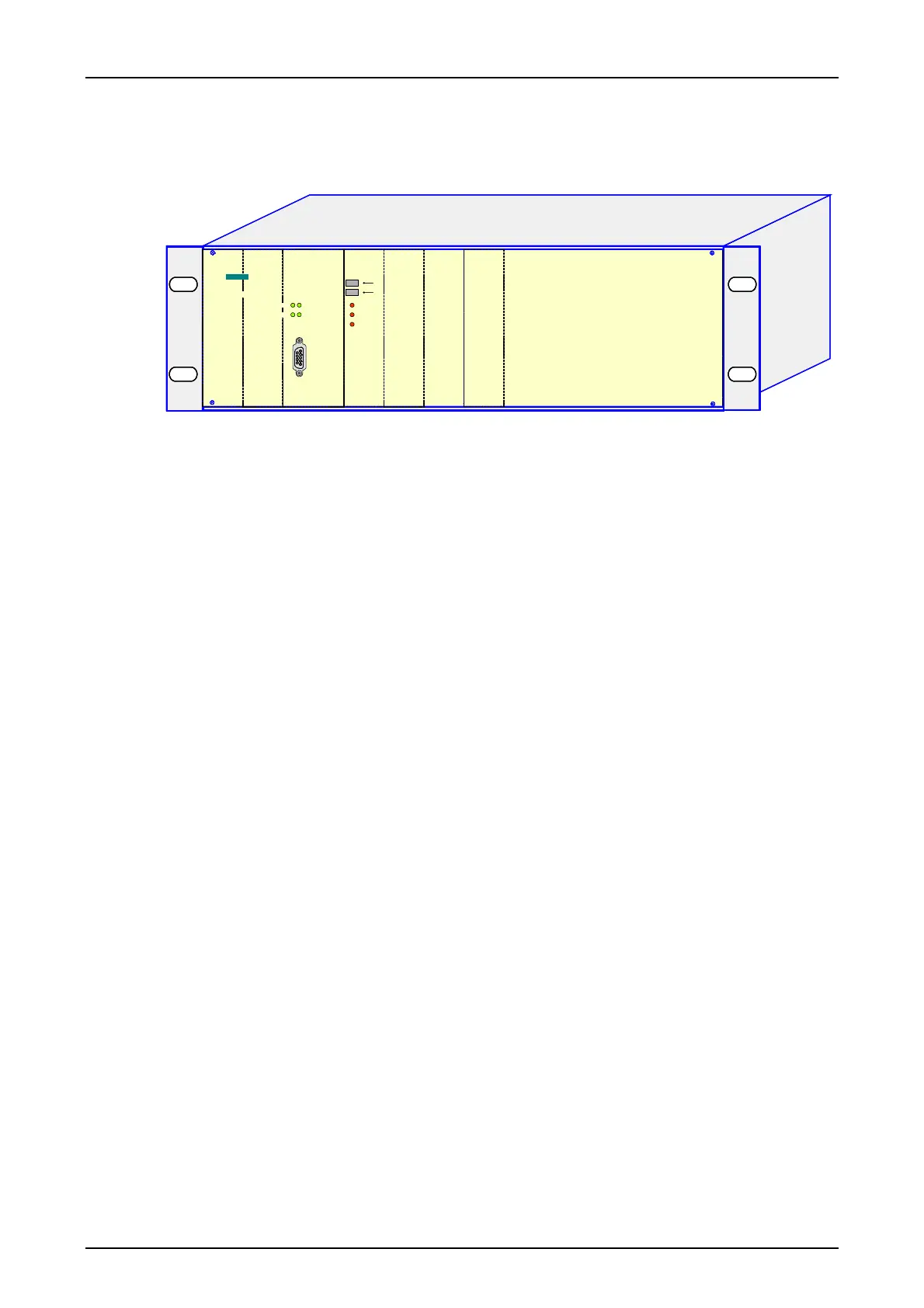

Figure 4: Equipment of the sub rack with a SWT 3000 system for using FOM modules
© SIEMENS AG 2008 Edition p3_3_2x 08/09 Page - 11
