Functional Description SWT 3000 Equipment Manual
Page - 34 Edition p3_3_2x 08/09 © SIEMENS AG 2008
Remote Monitoring (RM) and Service Channel (SC)
RM with analog interface
The Remote Monitoring function (RM) offers the option of accessing equipment data at the
SWT 3000 and PowerLink units via a serial interface with the service PC. With RM it is possible to
transmit equipment data between the terminals of one or more transmission routes. Transmission
is possible in both directions.
SSBSSF SSBSSF
SWT 3000
Adr.1
SWT 3000
Adr.2
Master Slave
Station 1 Station 2
SSF Front interface on the PU3
SSB Back interface

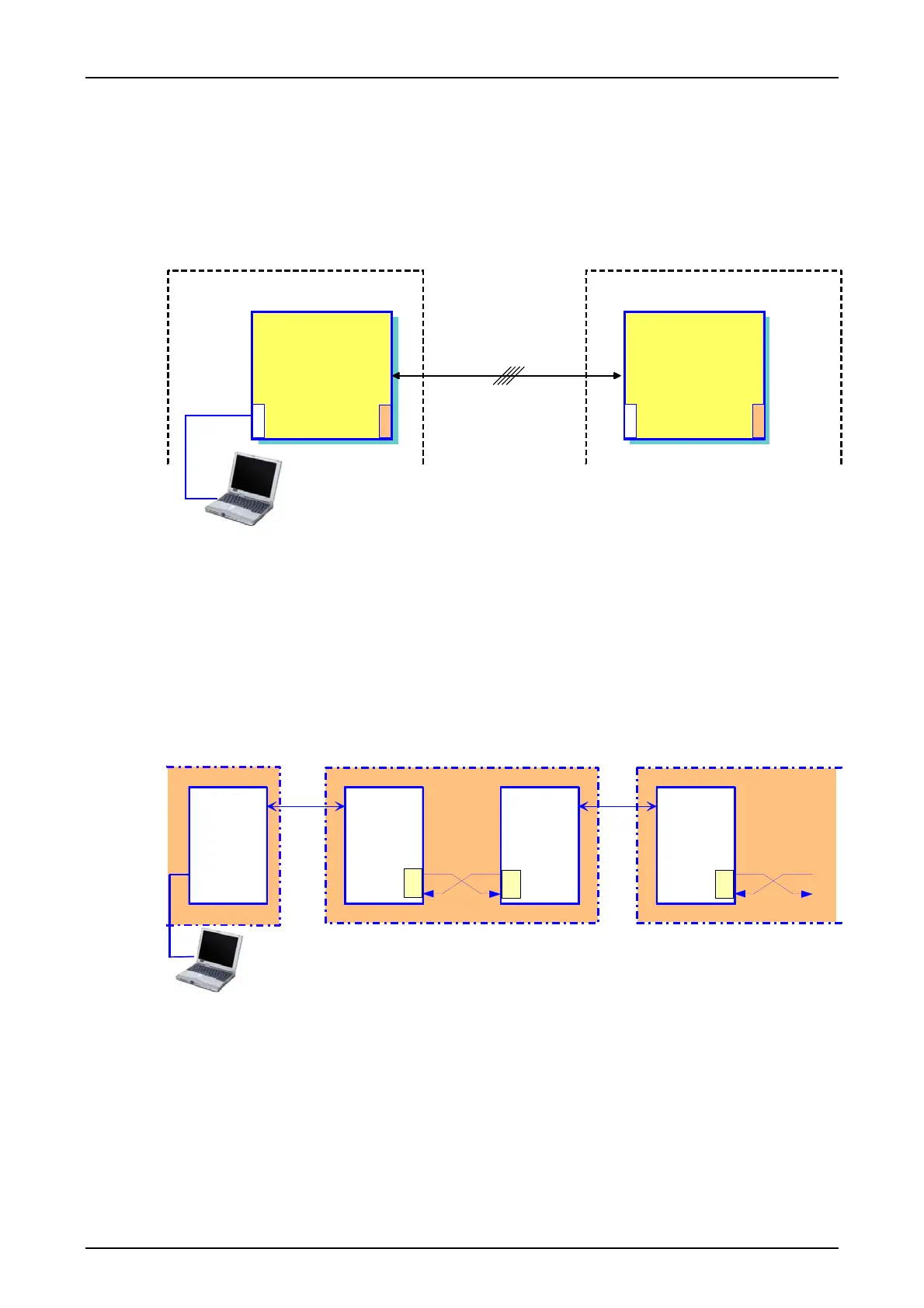

Figure 14: RM communication between units for an SWT 3000 connection
The event memory of the unit can, for example, be read out at station 2 with a service PC in sta-
tion 1 by means of RM.
For this purpose the units are assigned an RM address. A master - slave connection must also be
configured.
RM communication over several transmission routes is also possible by connecting two units via
the back RM interface (SSB).
Station 2 Station 3....Station 1
S
S
B
S
S
B
Adr.1 Adr.2
Adr.3
Adr.4
S
S
B
SWT 3000 SWT 3000 SWT 3000 SWT 3000
SSF Front interface on the PU3
SSB Back interface
Figure 15: Communication over two SWT 3000 connection routes
