Chapter 3: Service program PowerSys SWT 3000 Equipment Manual
Page - 28 Edition p3_3_2x 08/09 © SIEMENS AG 2008
Connection to the PowerLink target
For external FLASH modules the sector table is created on connect after determining the actual
type of the FLASH. The Sector list box is empty at this time.
Please click on the Connect button to establish connection to the target PowerLink system. Now
the sector list box contains the sector table of the selected FLASH module and the connect button
changes to disconnect.

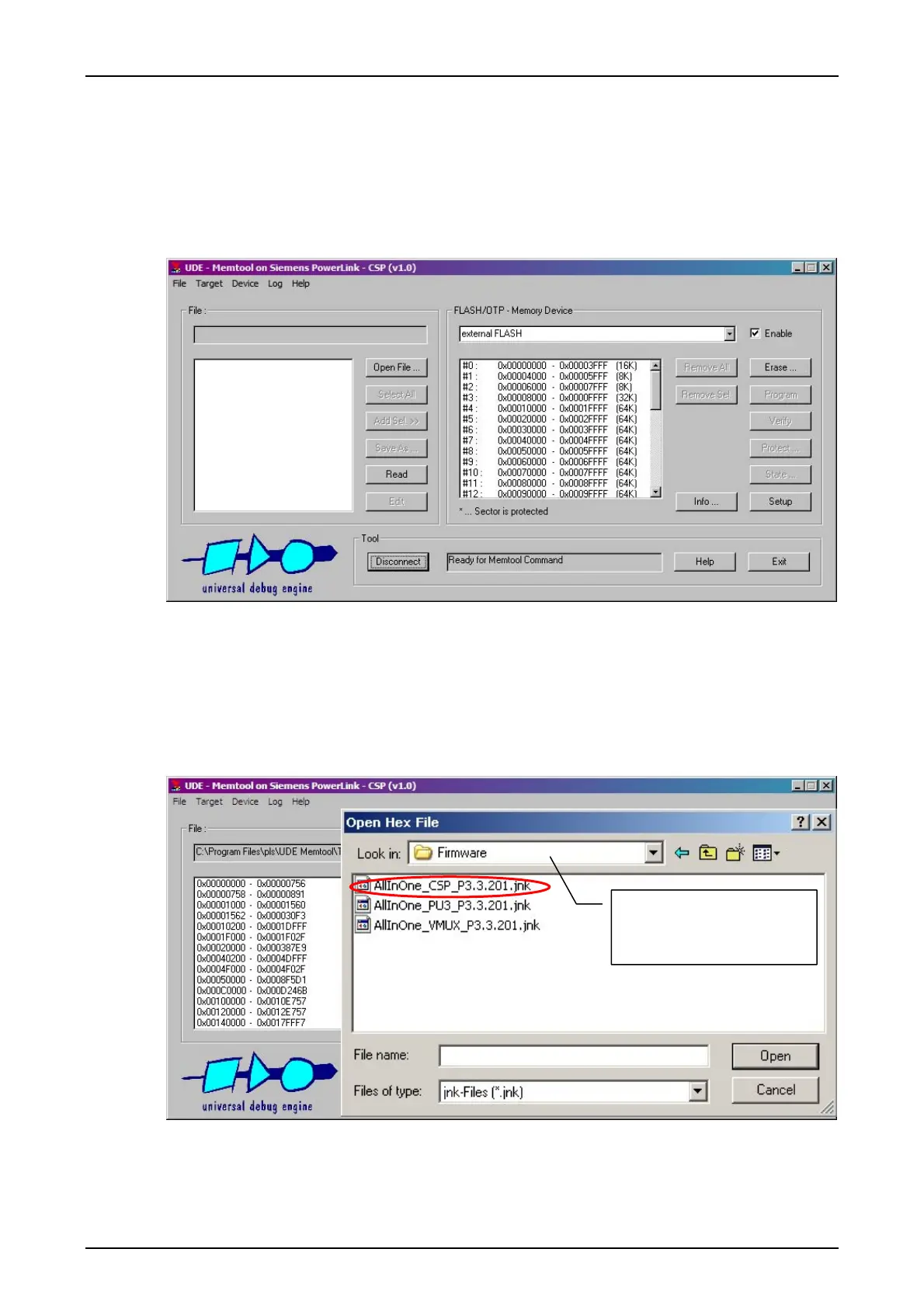

Figure 37: Display after the connection to the PowerLink has been established
Programming the application into the Flash Memory
Please click on the Open File button and select the AllInOne_CSP_Px.y.z.jnk (on the first time
you may have to select File type All Files or jnk Files and to navigate to the source folder ac-
cording chapter Getting Started). Click Open. After loading this file, in the left part of the MemTool
window the file name and a list of sections of the application are displayed.
Figure 38: Selection of the AllInOne files
Select the actual Power-
Sys Firmware version
