SWT 3000 Equipment Manual SNMP and Remote Access
© SIEMENS AG 2008 Edition p3_3_2x 08/09 Page - 21
Remote access examples
The figure below shows a RAS connection to the SWT3000. Information from the SWT 3000 in
station C can be read via in-band remote monitoring channel if the RM function is activated.
RS232
TCP/IP
RS232
TCP/IP
SWT3000
Station A Station B Station C
Office
PowerSys
*) RAS
orTerminal server
*)
Overhead line
SSB Remote Monitoring interface
SC Service channel interface
SSR Remote access interface SWT3000
RAS Remote access server
RAS
RM In-band remote monitoring channel
RM
Remote access Remote monitoring
Intranet (LAN)
SWT3000 SWT3000
SC
SWT3000
SSR SSB
SC
SSR SSB
SC
SSR SSB
SC
SSR SSB

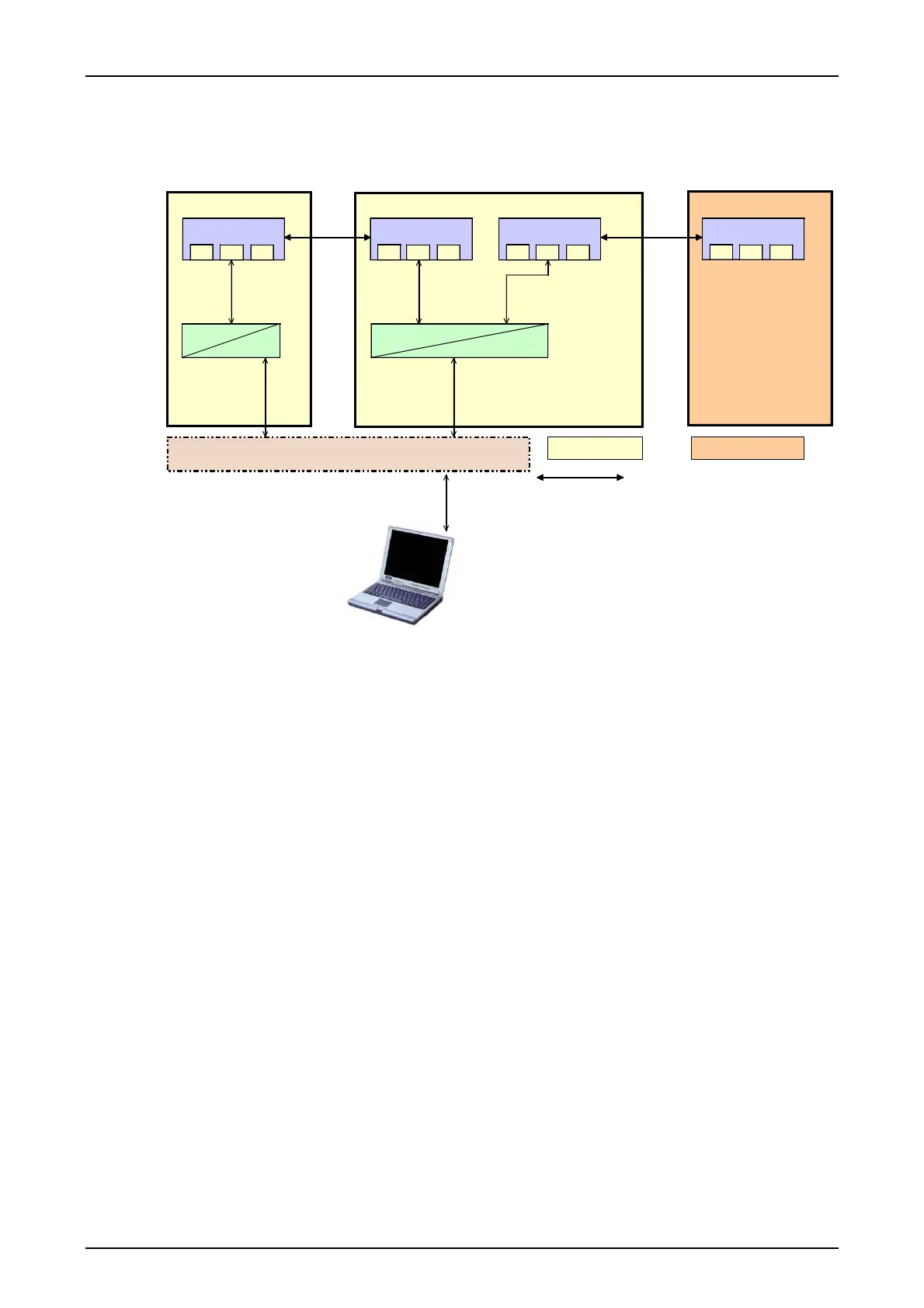

Figure 14: RAS connection to the SWT 3000 devices in the station A and B
