Siemens SWT-3000 User Manual

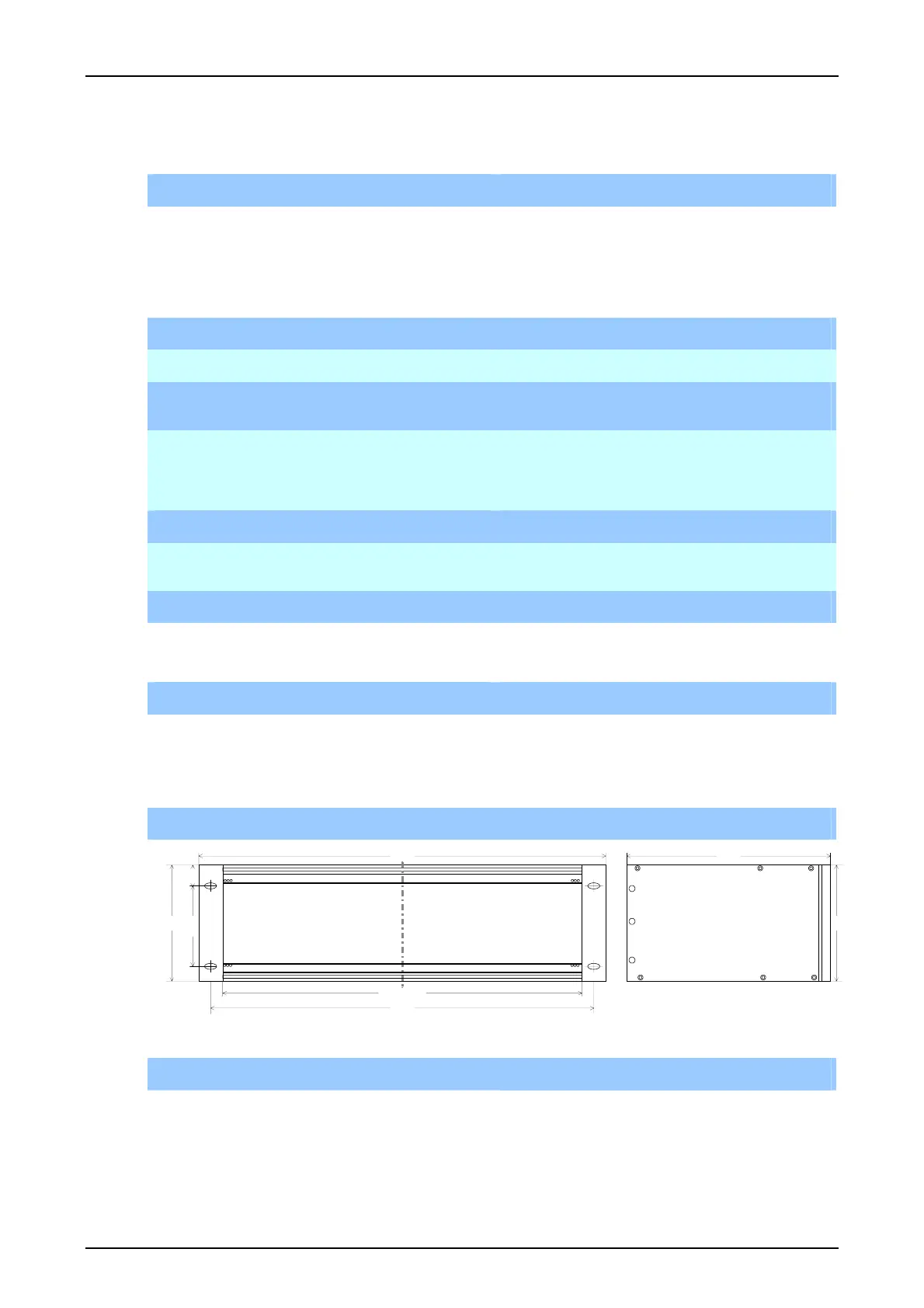

SWT 3000 Equipment Manual Technical Data
© SIEMENS AG 2008 Edition p3_3_2x 08/09 Page - 9
Service PC
Interface 9,6 kbps
RS 232/Sub-D 9 pol.
Electromagnetic Compatibility EMC
Immunity
Electrostatic discharge 8kV (contact discharge)
Radiated electromagnetic fields 10 V/m (80 – 2000 MHz)
Bursts
Power supply
Data lines
4 kV
4 kV
Surges
Common mode (line-to-line)
Differential mode (line-to-ground)
Direct coupling into shield
(communication cable)
4 kV
2 kV
2 kV
Conducted disturbances 10 V
eff
(150 kHz – 80 MHz)
Damped oscillatory waves
Common mode (line-to-line)
Differential mode (line-to-ground)
2,5 kV
2,5 kV
Direct coupling into shield
(communication cable) 2,5 kV
Emission
HF disturbance emission
(20 – 1000 MHz)
EN 50081-2
Limit Class B
Mechanical design
Dimensions
ES 902 C (19“ inch)
482.6
1
3
2
3
7
.
4
5
7
.
1
5
465.1
84TE=426.72
240
1
3
2
Weight
approx. 5 kg (one SWT 3000 in ES 902 C frame)
