SWT 3000 Equipment Manual SNMP and Remote Access
© SIEMENS AG 2008 Edition p3_3_2x 08/09 Page - 13
Installation of the SNMP
Connection principle of the SNMP server

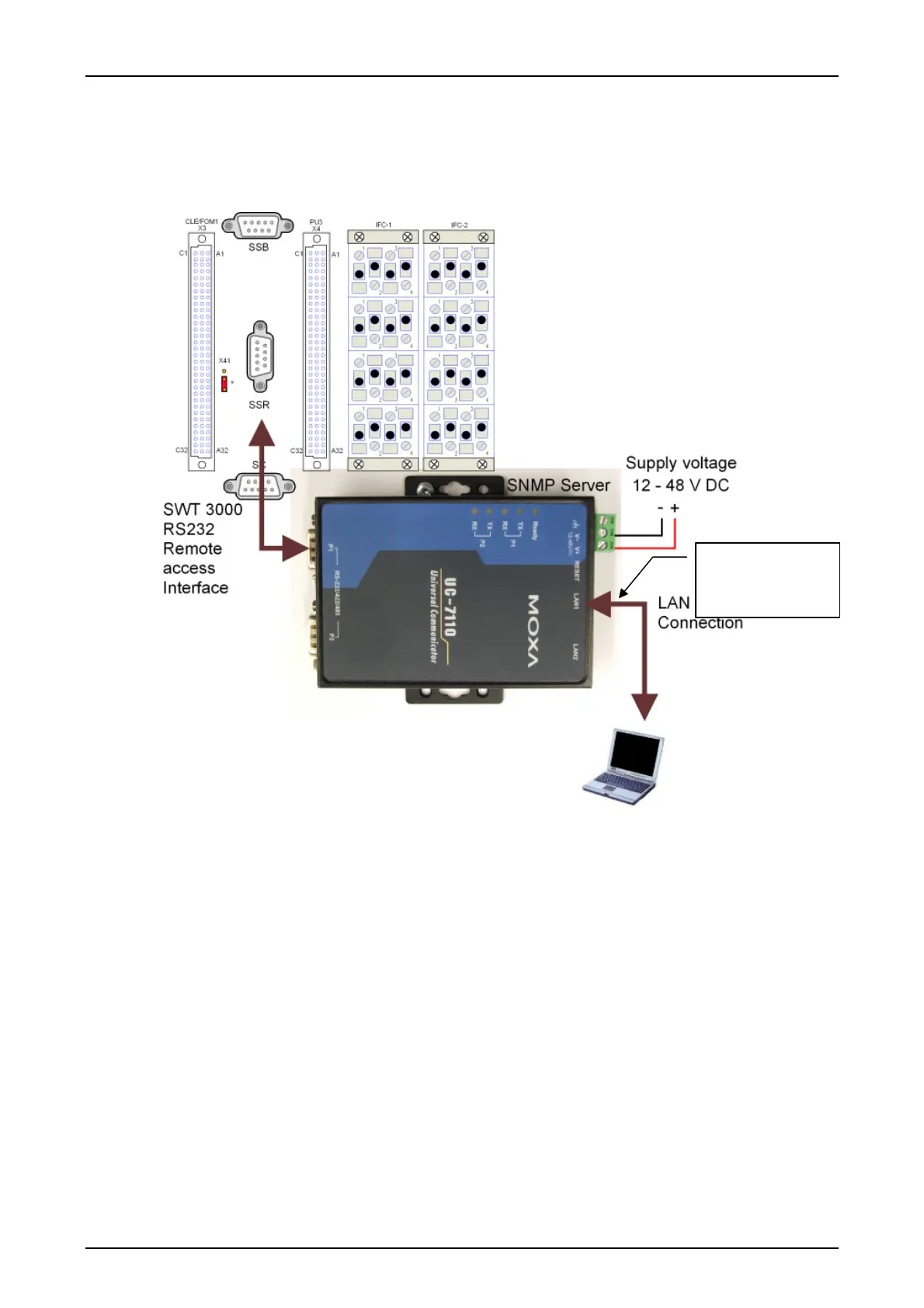

The figure below shows the connection principle for the SNMP server.
Figure 6: Connection principle
Use crossed
cables in case of
direct connection
