SWT 3000 Equipment Manual Chapter 3: Service program PowerSys
© SIEMENS AG 2008 Edition p3_3_2x 08/09 Page - 41
Click on Select All and then on Add Selection. The sections of the application are displayed (ac-
cording to the sectors they belong to) in the list box on the right-hand side.

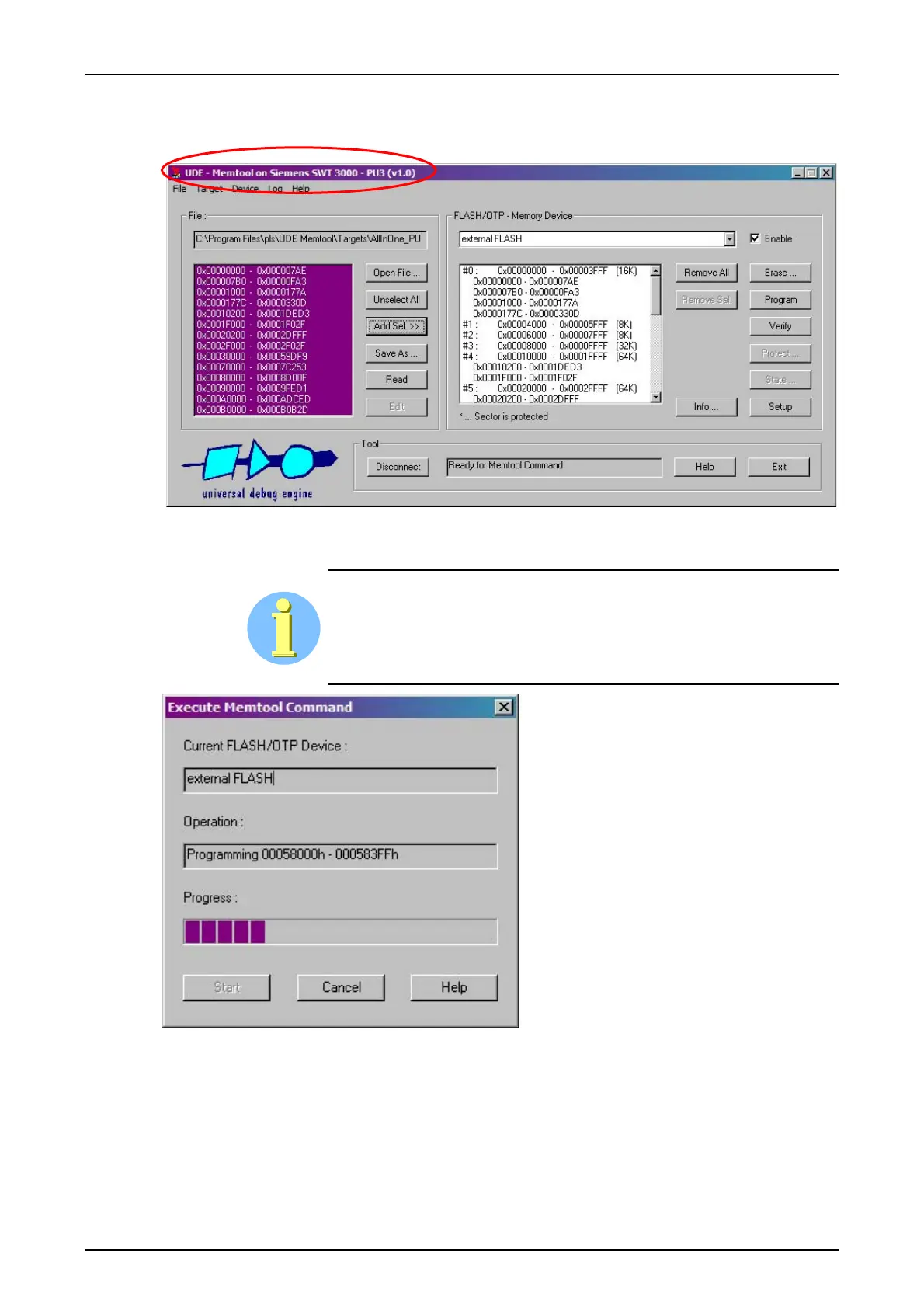

Figure 59: Display of the sections in the list box after the Add Select has been executed
Wrong file selection will result in unsuccessful flash programming. Verify
that the file selected matches to the target and device physically con-
nected.
Figure 60: The Memtool programming progress
Please click on the Program button to
start the programming cycle. The Execute
MemTool Command dialog will be opened
to show the programming progress. The
upgrade starts with erase of the flash,
programming and finally verification.
