Functional Description SWT 3000 Equipment Manual
Page - 36 Edition p3_3_2x 08/09 © SIEMENS AG 2008

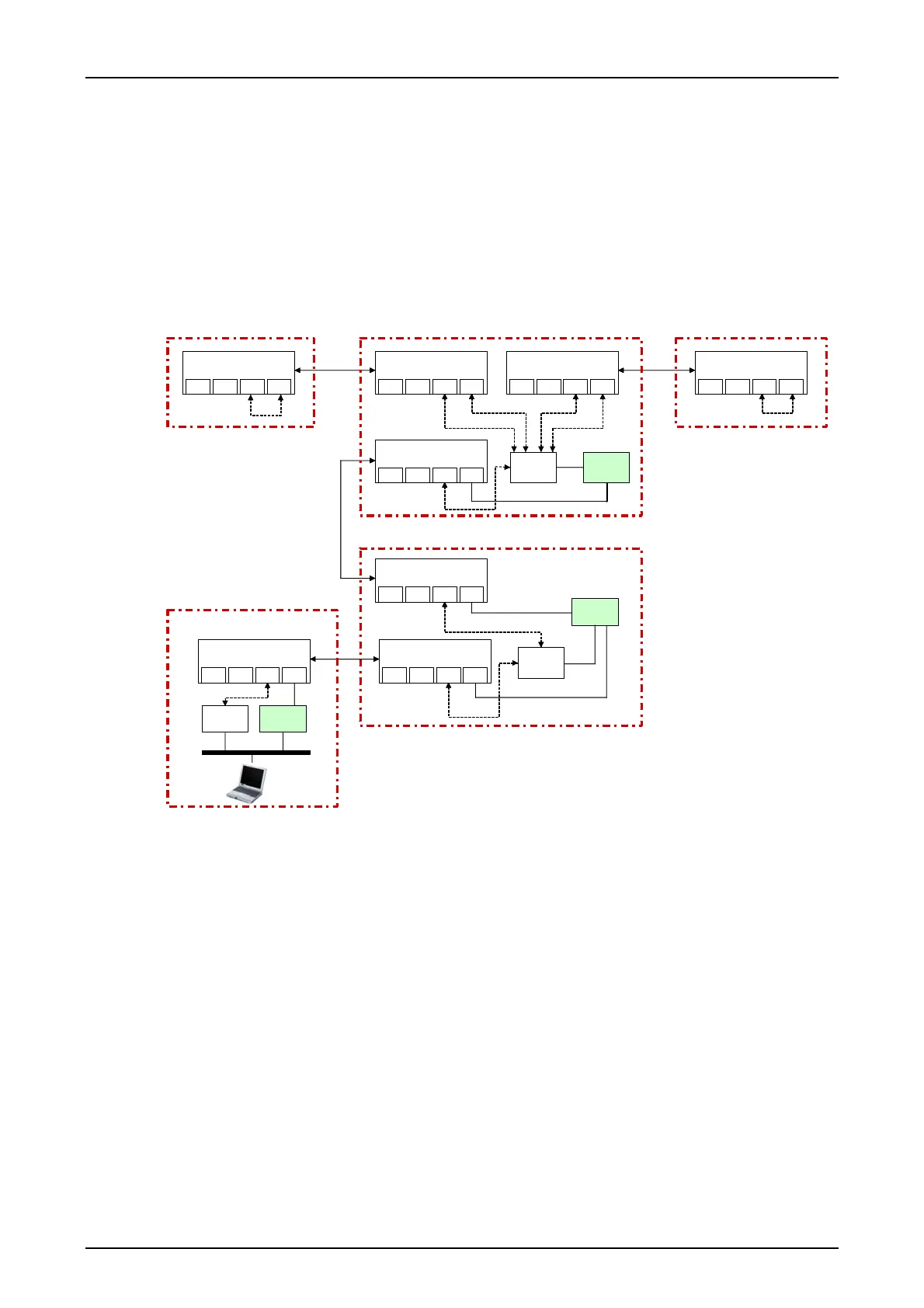

The figure above shows the stations A and B which are connected to the office via the intranet.
The SWT3000 units in these stations can be reached via the intranet with the service PC and the
PowerSys program using the corresponding TCP/IP address for the remote access server (RAS)
which is connected to the remote access interface (SSR) on the backplane.
The SWT 3000 unit in station C can be accessed over the SC connection via intranet in station B.
In this case the service channel in station C must be connected to the remote access (resp. SSB)
interface.
It is basically possible to have full access to the system via the SSB interface. For this the configu-
ration of the interface must be adjusted to
“Slave” in the service program “PowerSys”.
SWT3000
SSB SCSSF SSR
RAS
Station A
Station B
Station C Station EStation D
RS232
Router
RS232
RS232
RAS
Router
RS232
RS232
RS232
RS232 RS232
RS232
LAN
LAN
RS232
RS232
RS232
Router
LAN
RAS
RS232
RS232
SWT3000
SSB SCSSF SSR
SWT3000
SSB SCSSF SSR
SWT3000
SSB SCSSF SSR
LID
LID
LID
SWT3000
SSB SCSSF SSR
SWT3000
SSB SCSSF SSR
SWT3000
SSB SCSSF SSR
LID
SWT3000
SSB SCSSF SSR
SSB Rear interface RAS Remote Access Server
SSF Front interface SC Service Channel
SSR Remote access interface
Figure 17: Configuration of a complex network connection
