SWT 3000 Equipment Manual Installation and Commissioning

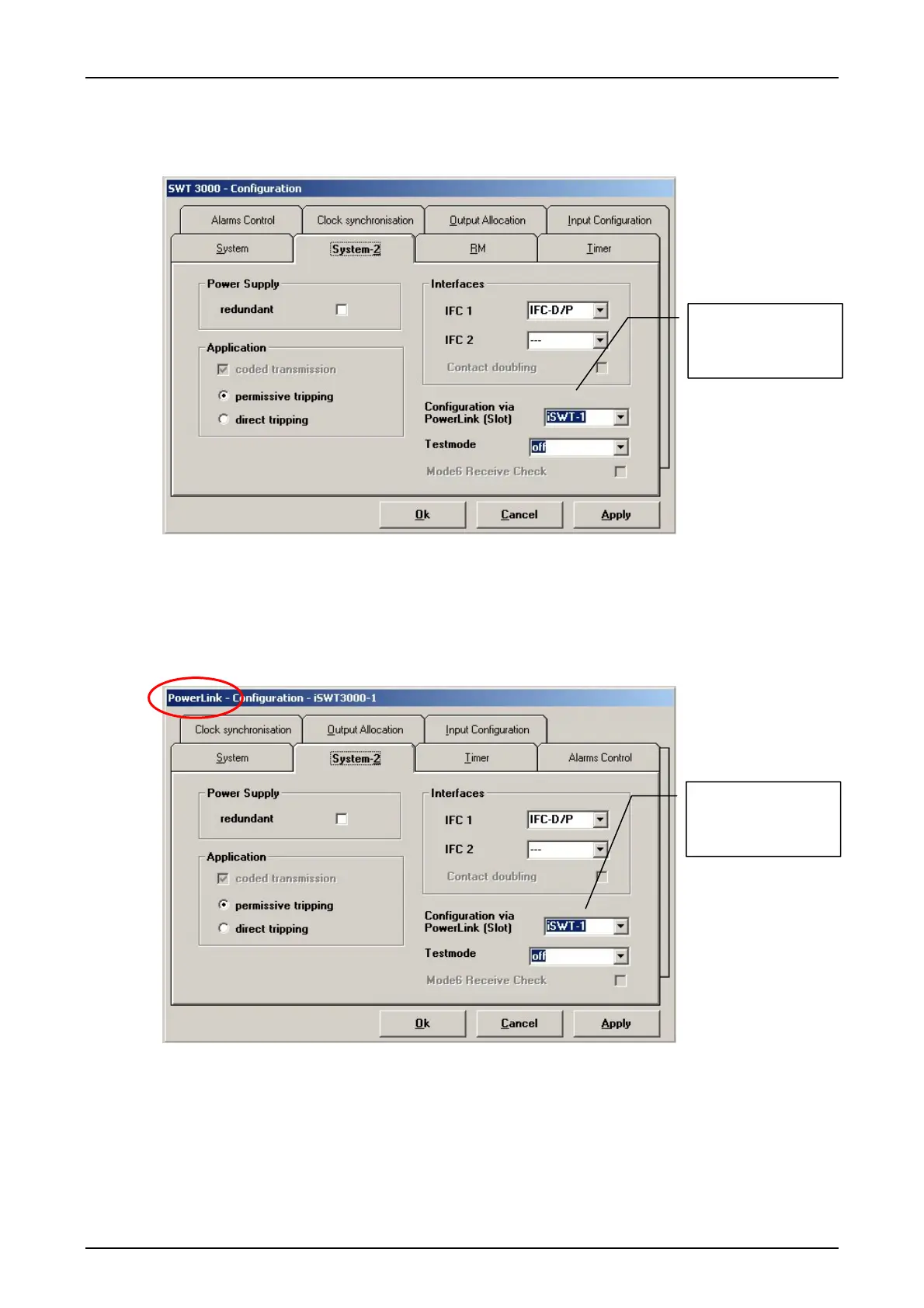

The system-2 configuration for the external SWT 3000 with FO connection to the PowerLink is
shown in the figure below:
System-2 settings in
the external SWT
connected via FOM
Figure 25: SWT 3000 system-2 configuration for FO connection to the PowerLink
In this form is defined which slot position (iSWT-1 or iSWT-2) of the FOM in the PowerLink is used
for the configuration of the external SWT 3000.
The further settings like VF variant, must be executed via the PowerLink. In this case the same
settings from the external SWT 3000 must be defined in the system and system-2 configuration of
the (iSWT) PowerLink. The connection via FOM must be established.
System-2 settings in
the PowerLink for the
SWT connected via
FOM
Figure 26: iSWT 3000 system-2 configuration for FO connection to the PowerLink
Due to the digital connection of the PU3f via the SSI it is in this case not possible to measure the
frequencies at the PU3f measuring jacks.
© SIEMENS AG 2008 Edition p3_3_2x 08/09 Page - 37
