SWT 3000 Equipment Manual Installation and Commissioning

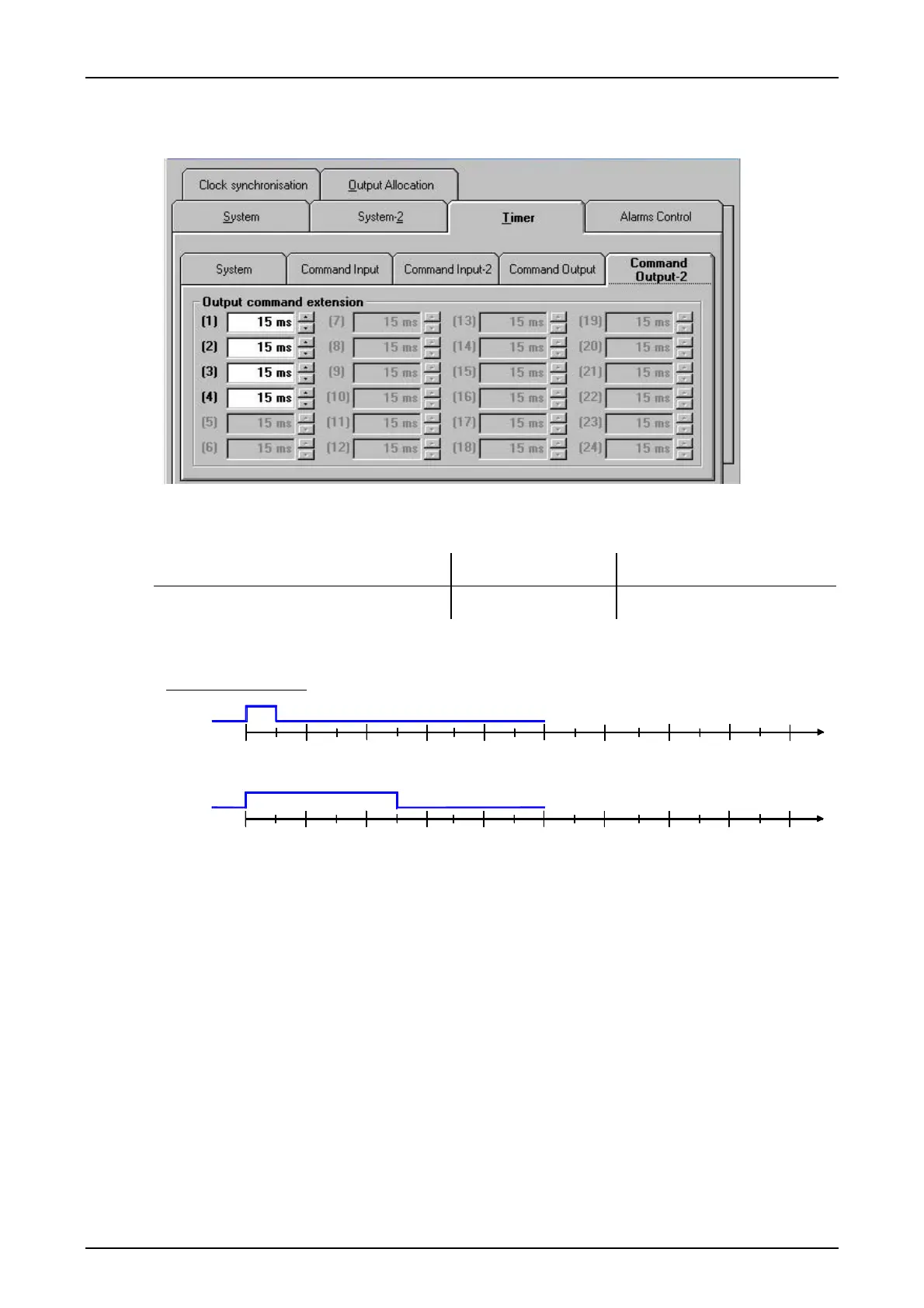

Figure 54: Setting options for the output command extension
Table 52: Setting ranges for the output command extension
Command output Setting options Comments
Output command extension 0 - 2000 ms in steps of
5 ms
The command in the example below is transmitted for 50 ms (Tx output). With the output com-
mand extension on the Rx output it is extended for 200 ms.
Tx Output
Output extension 200 ms
0 50 100 200 300 400 500 600 700 800
0 50 100 200 300 400 500 600 700 800
Rx Output
t
ms
t
ms
Figure 55: Example for an output extension of 200 ms
© SIEMENS AG 2008 Edition p3_3_2x 08/09 Page - 57
