Ski-Doo 2005 SUMMIT HIGHMARK User Manual

Section 06 DRIVE SYSTEM
Subsection 01 (DRIVE BELT)

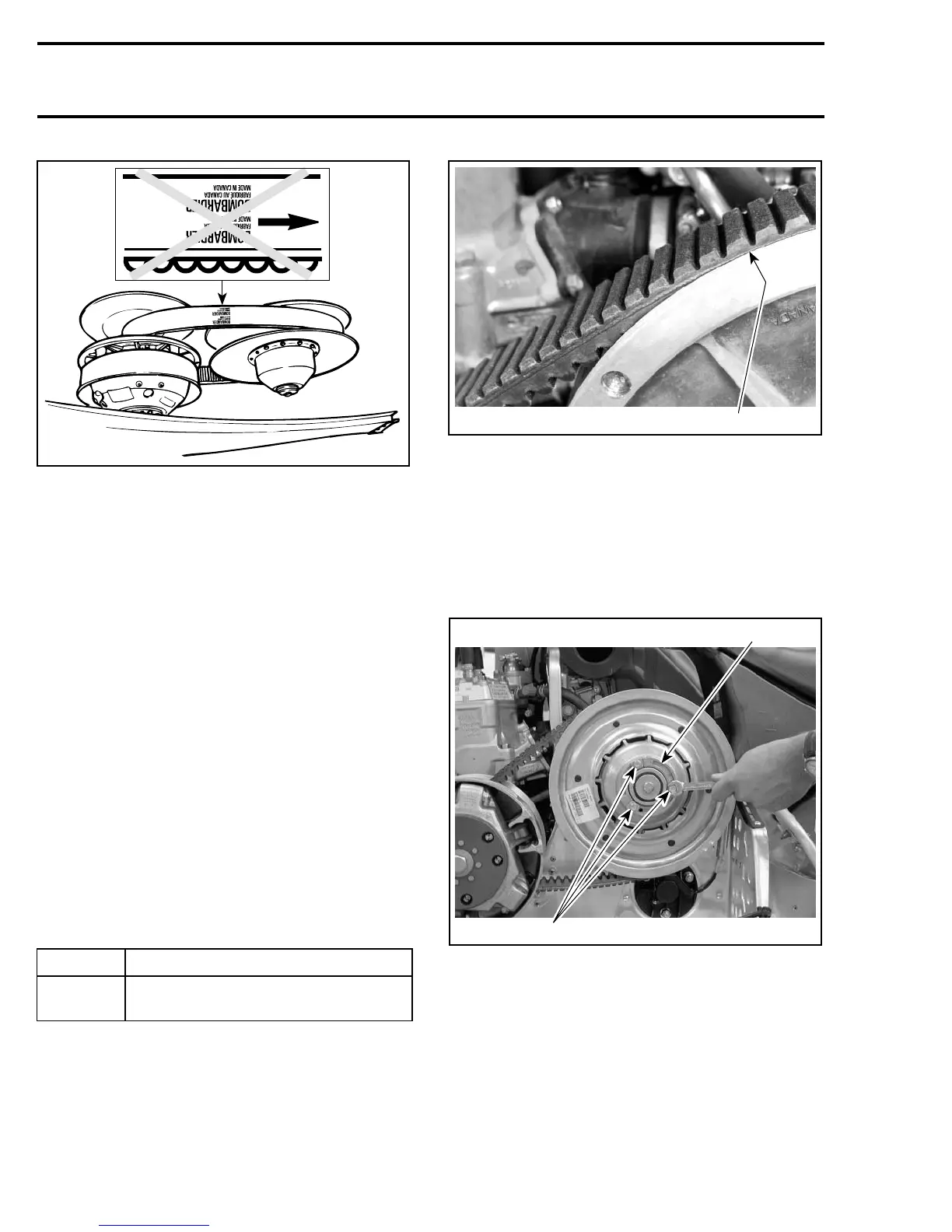

A01D2LA
INCORRECT
NOTE: For used drive belt, mark and reinstall in
the same position.
DRIVEBELTHEIGHT
MEASUREMENT AND
ADJUSTMENT
Measurement
NOTE: The drive belt height measurement must
be performed each time a new drive belt is in-
stalled. To obtain an accurate drive belt height
measurement, it is suggested to allow a break-in
period of 50 km (30 miles).
Before checking the belt height, ensure that a
good-condition proper belt (refer to the APPLICA-
TION CHART) is installed.
Adjust pulley alignment. Refer to PULLEY ALIGN-
MENT.
To obtain maximum vehicle performance, the belt
height must be adjusted according to specifica-
tions shown in the accompanying chart.
MODEL BELT HEIGHT
All models
Top edge of drive belt cord should be
flush with driven pulley edge.
1
A02D1UA
TYPICAL
1. Flush
Adjustment
Before adjusting the belt height, ensure that a
good-condition proper belt (refer to the APPLICA-
TION CHART) is installed.
Align pulleys according to specification, refer to
PULLEY ALIGNMENT.
1
2
A33D0DA
TYPICAL
1. Screws
2. Adjustment ring
Loosen screws and turn adjustment ring as fol-
lows:
To lower belt in driven pulley: turn adjustment ring
counterclockwise and tighten the screws.
To raise belt in driven pulley: turn ring clockwise
and tighten the adjustment screws.
186 mmr2005-131
