Section02ENGINE
Subsection 11 (REWIND STARTER)
A03C3EA

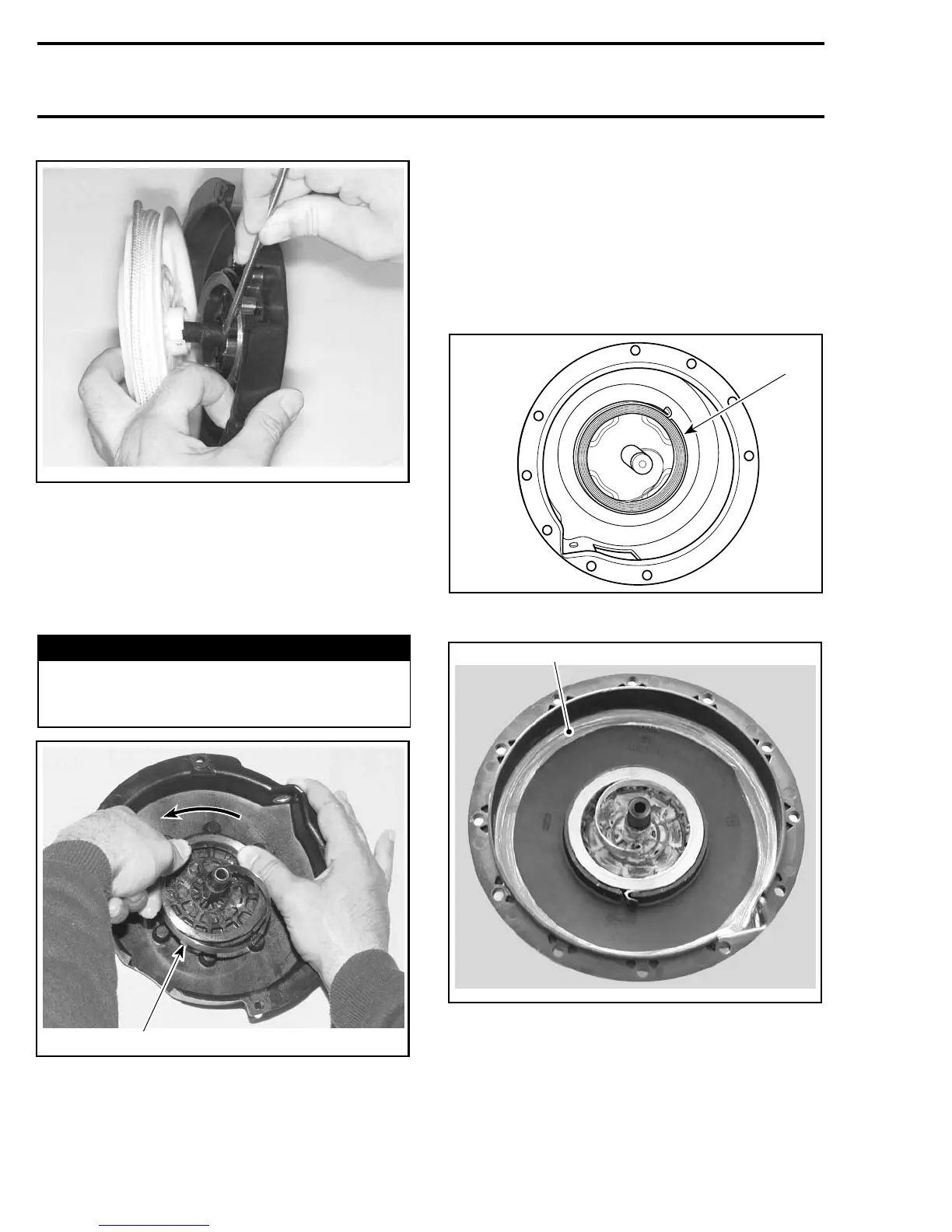

Take out the knot and then rope no. 5.
ASSEMBLY
At assembly, position spring no. 3 outer end into
spring guide notch then wind the spring counter-
clockwise into guide.
WARNING
Since the spring is tightly wound inside the
guide it may fly out when rewind is handled.
Always handle with care.
A03C3FA
1
1. Outer end into guide notch
CAUTION: It is of the utmost importance that
the rewind starter spring be lubricated period-
ically using Molykote PG 54 (P/N 420 899 763).
Otherwise, rewind starter component life will
be shortened and/or rewind starter will not op-
erate properly under very cold temperatures.
Lubricate spring assembly and 1 cm (1/2 in)
wide on bottom of housing with Molykote PG 54
(P/N 420 899 763).
A01C14A
1
TYPICAL
1. Molykote PG 54 inside spring guide
1
A32C2AA
1. Molykote PG 54 applied 1 cm (1/2 in) wide on bottom of housing
CAUTION: The use of standard multipurpose
grease could result in rewind starter malfunc-
tion.
92 mmr2005-121
