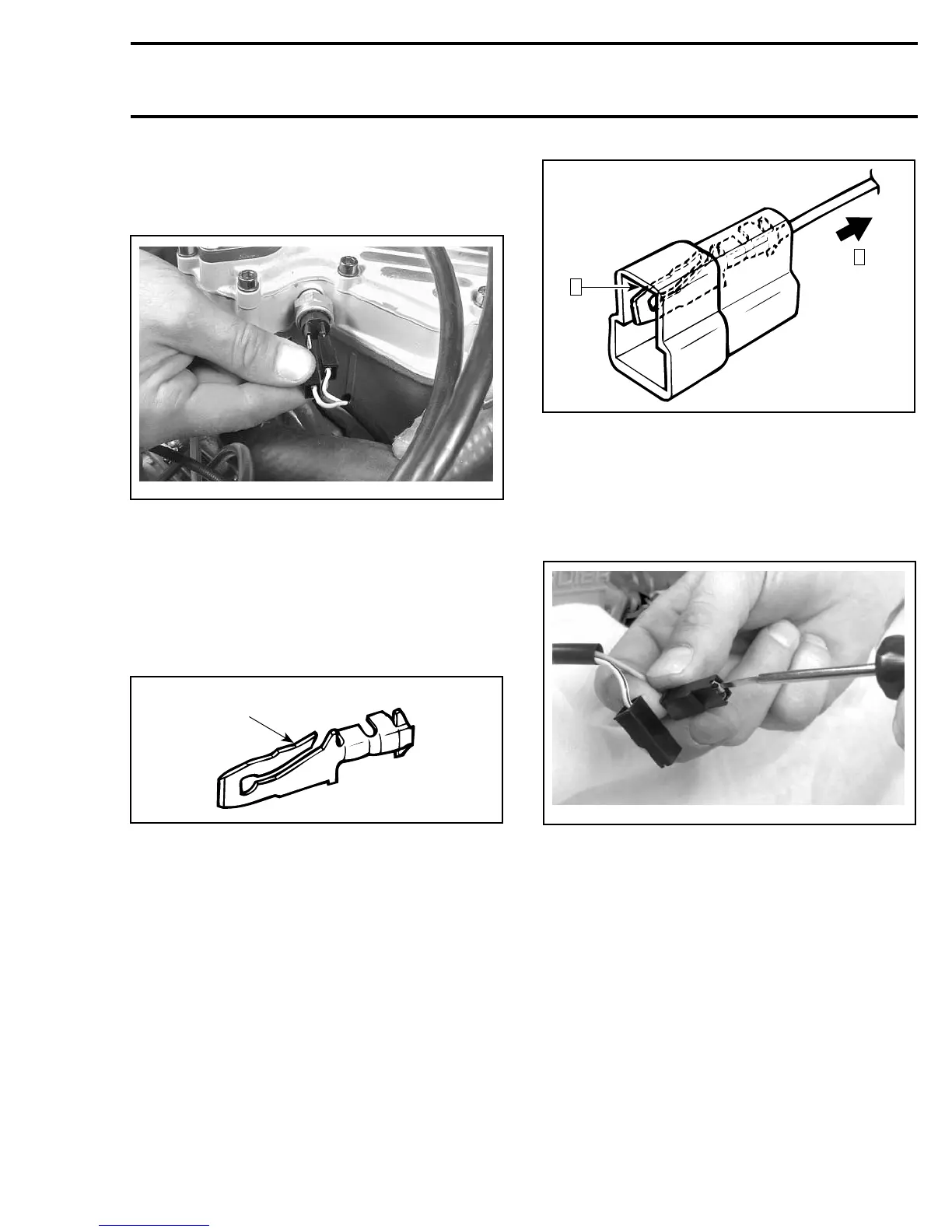

Section 11 WIRING DIAGRAMS
Subsection 01 (WIRING DIAGRAMS)
UNPLUGGING CONNECTORS
Always unplug connectors by pulling on housing
not on wire.
A06E1PA
TYPICAL
TAB AND RECEPTACLE
CONNECTORS REMOVAL
Tab Connector
It is locked in its housing by a spring tab on its side.
Removal is done by squeezing this tab.
A00E1DA
1
TAB CONNECTOR
1. Locking tab
To remov e:
– Insert a screwdriver or Snap-on TT 600-5 from
opposite side of wire and pry locking tab.
– While holding locking tab pried, pull connector
toward wire side.
A00E1EA
2
1
1. Insert screwdriver here
2. Pull this side
Locking Receptacle Connector
To remov e:
– Insert tool Snap-on TT 600-5 in access opening
then pull housing toward wire side.
A06E1QA
Waterproof Connector Housing
Female Connector Housing
To remov e:
– Insert tool Snap-on TT 600-5 under lock and
twisttoliftit.
MMR2005-146 327
