INTRODUCTION
LOCTITE APPLICATION
PROCEDURE
The following describes the most common ap-
plication procedures when working with Loctite
products.
NOTE: Always use proper strength Loctite prod-
uct as recommended in this shop manual.
THREADLOCKER

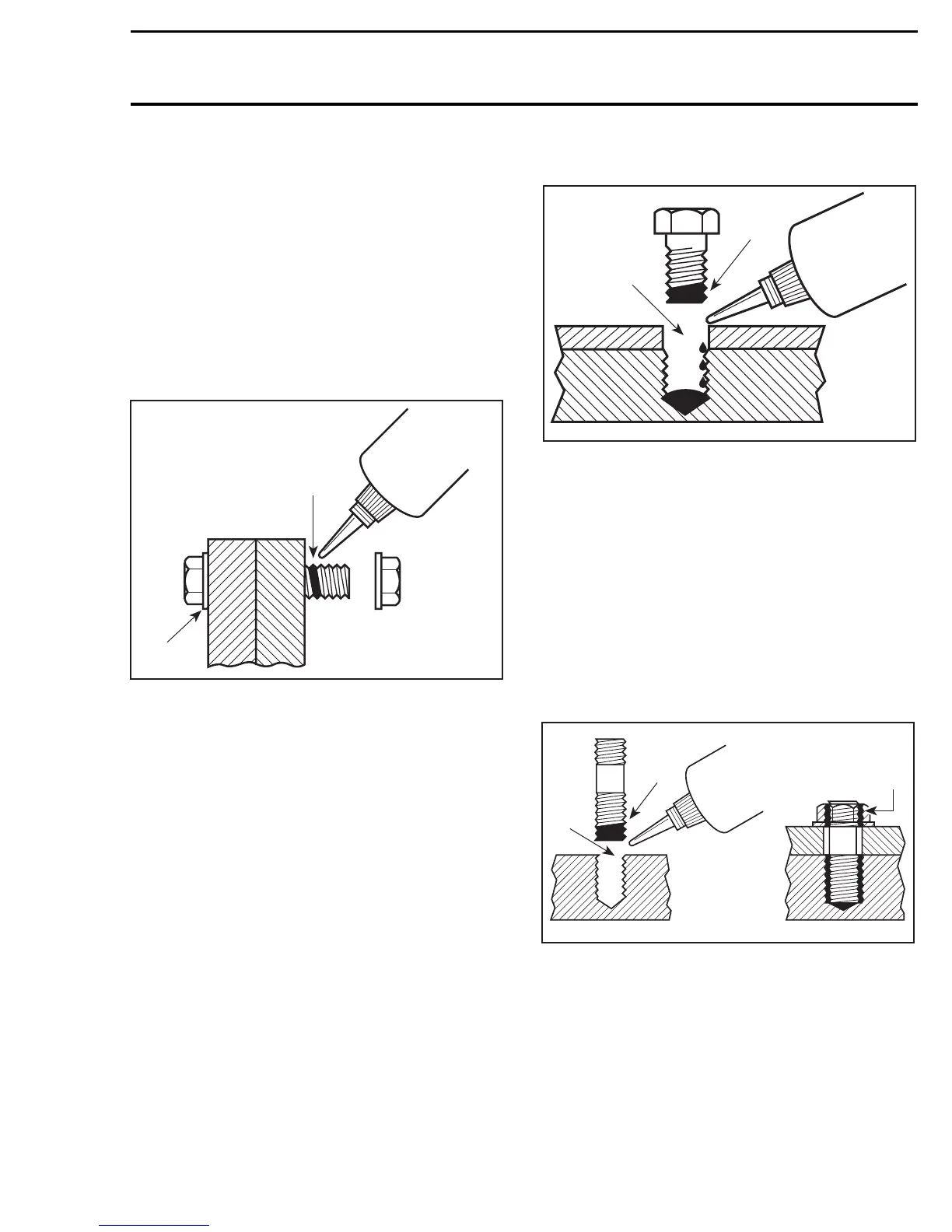

Uncovered Holes (bolts and nuts)
A00A3LA
1
2
1. Apply here
2. Do not apply
– Clean threads (bolt and nut) with solvent.
– Apply Loctite Primer N (P/N 293 800 041) on
threads and allow to dry.
– Choose proper strength Loctite threadlocker.
– Fit bolt in the hole.
– Apply a few drops of threadlocker at proposed
tightened nut engagement area.
– Position nut and tighten as required.
Blind Holes
A00A3MA
1
2
1. On threads
2. On threads and at the bottom of hole
– Clean threads (bolt and hole) with solvent.
– Apply Loctite Primer N (P/N 293 800 041) on
threads (bolt and nut) and allow to dry for 30
seconds.
– Choose proper strength Loctite threadlocker.
– Apply several drops along the threaded hole and
at the bottom of the hole.
– Apply several drops on bolt threads.
– Tighten as required.
Stud in Blind Holes
A00A3NA
2
1
3
1. On threads
2. On threads and in the hole
3. Onto nut threads
– Clean threads (stud and hole) with solvent.
– Apply Loctite Primer N (P/N 293 800 041) on
threads and allow to dry.
– Put several drops of proper strength Loctite
threadlocker on female threads and in hole.
mmr2005-109 XV
