Section02ENGINE
Subsection 02 (AIR INTAKE SYSTEM)
AIR FILTER/AIR INTAKE SILENCER
REMOVAL (BODY SIDE)
Open LH side panel.
Unplug air pressure sensor connector.
Remove screws retaining air intake silencer to LH
side panel.
Remove air intake silencer (body side).

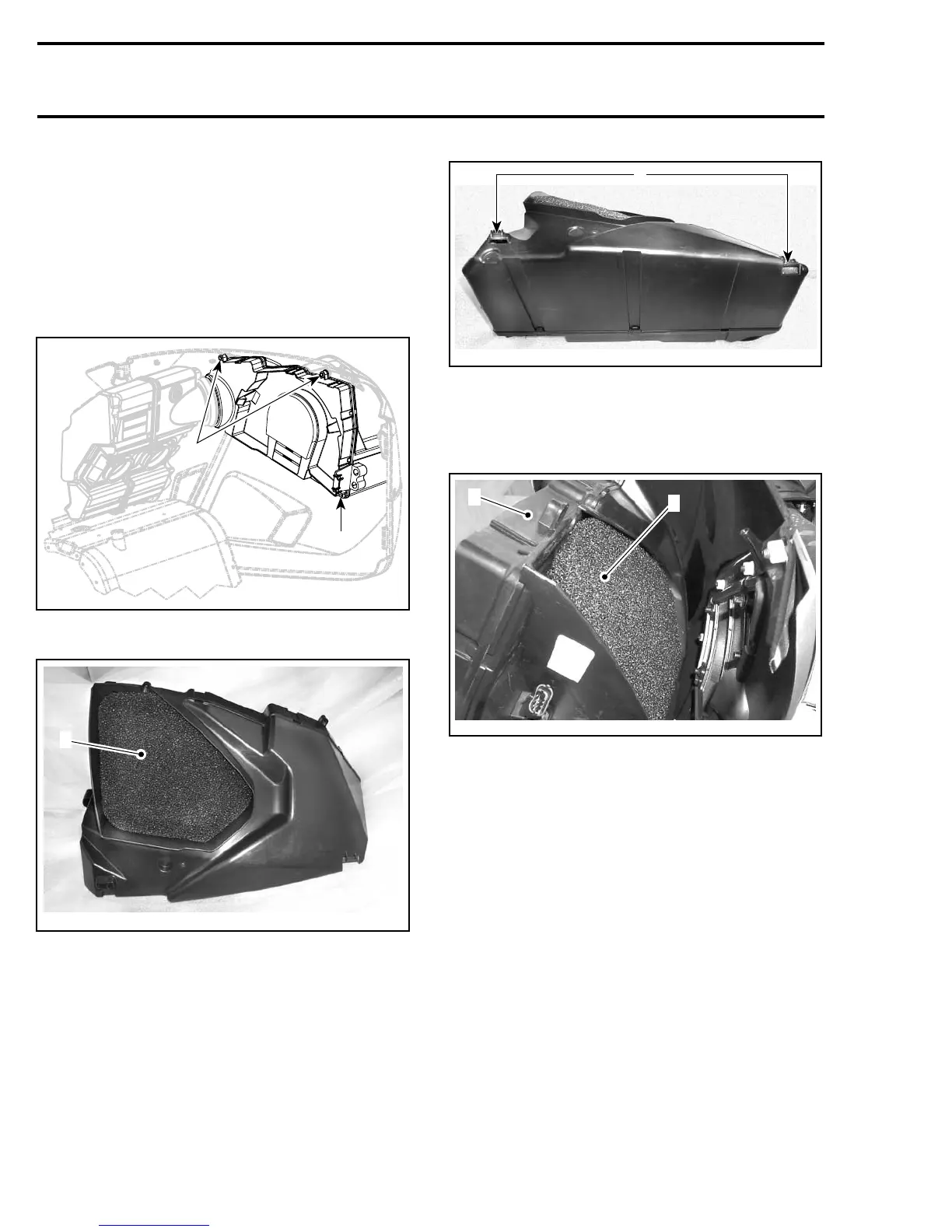

1
2
A35C03A
1. Remove screws
2. Air intake silencer (body side)
A35C04A
1
1. Remove air filter
AIR FILTER/AIR INTAKE SILENCER
INSTALLATION (BODY SIDE)
Position lower section of air intake silencer on LH
side panel using locating holes.
A35C05A
1
1. Locating holes
Install air filter on air intake silencer.
NOTE: Make sure air filter stays in place at instal-
lation.
A35C06A
2
1
1. Air intake silencer (body side)
2. Air filter
Position upper section of air intake silencer on LH
side panel and secure with screws.
AIR INTAKE SILENCER REMOVAL
(ENGINE SIDE)
Open LH side panel.
Unplug air temperature sensor connector.
Release locking tab of adapter plate..
Pull on air intake silencer to remove.
16 mmr2005-149
