Section03FUELSYSTEM
Subsection 01 (FUEL TANK AND FUEL PUMPS)
To facilitate the installation, grommet should be on
smallerdiameterofmaleconnector.
Install grommet on fuel tank and push male con-
nector through grommet.

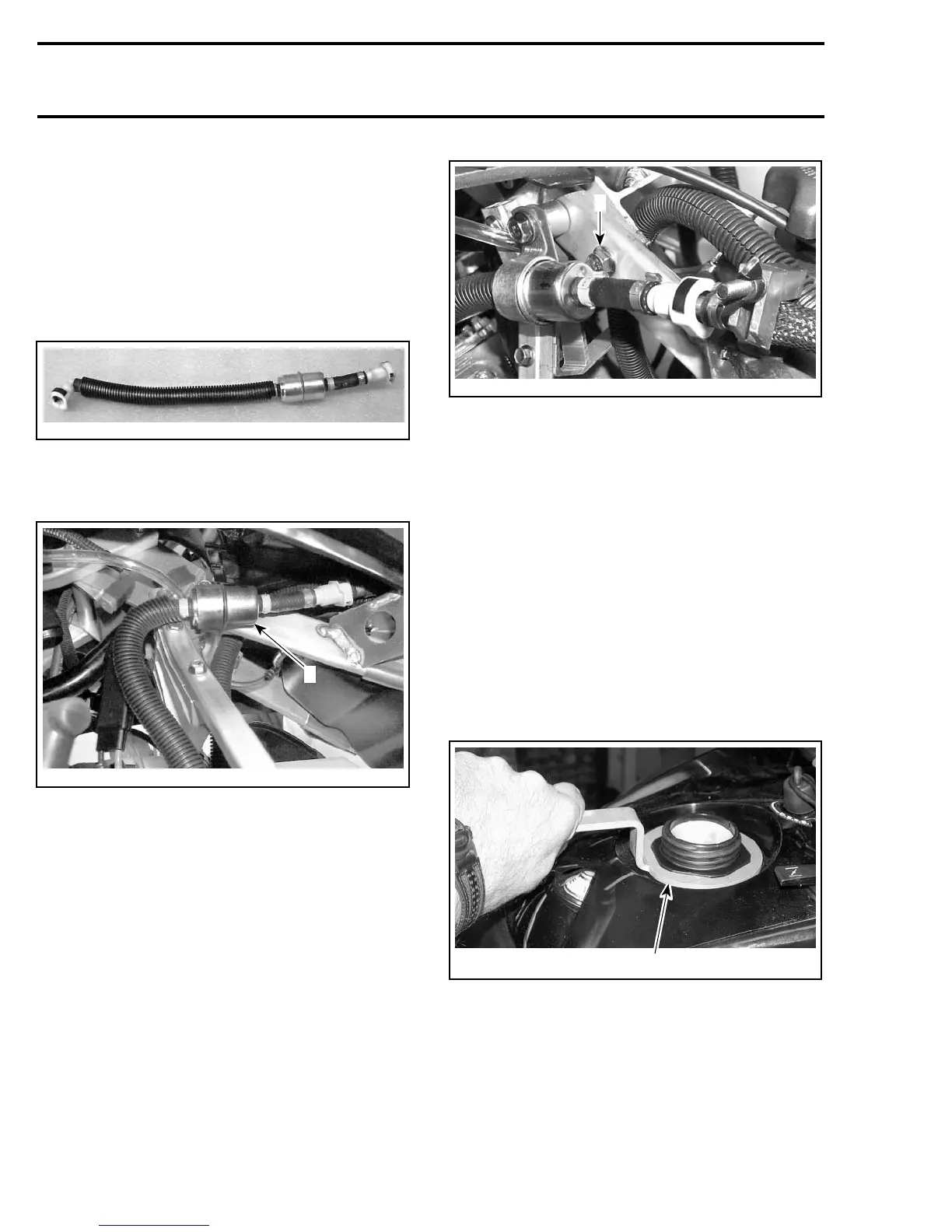

IN-LINE FUEL FILTER REMOVAL
Fuel filter, inlet and outlet hoses come as an as-
sembly.
A35I04A
FUEL FILTER LINE ASS'Y
The fuel filter line ass'y is located on LH side of
the vehicle underneath console.
A35I05A
1
1. Fuel filter line ass'y
Using B.U.D.S. release pressure from fuel sys-
tem. Refer to COMPONENT INSPECTION, RE-
PLACEMENT AND ADJUSTMENT.
Disconnect both ends of fuel filter line ass'y.
Unscrew fuel filter support nut then remove the
filter.
A35I06A
1
1. Unscrew fuel filter support
IN-LINE FUEL FILTER
INSTALLATION
Installation is reverse of removal procedure.
FUEL TANK REMOVAL
Using B.U.D.S., release pressure from fuel sys-
tem. Refer to COMPONENT INSPECTION, RE-
PLACEMENT AND ADJUSTMENT.
Remove seat, refer to BODY.
Remove fuel tank cap.
Remove filler neck plastic nut using wrench
(P/N 529 035 891).
529 035 891
A33C1TA
TYPICAL
Remove on both sides, fuel tank aluminum braces
and discard the following:
– Torx screws M8 x 13
– elastic flanged nuts M8.
106 mmr2005-123
