Section02ENGINE
Subsection 03 (EXHAUST SYSTEM)
GENERAL
During assembly/installation, use torque values
and service products as shown in exploded
view(s).
Clean threads before applying a threadlocker. Re-
fer to SELF-LOCKING FASTENERS and LOCTITE
APPLICATION at the beginning of this manual for
complete procedure.
WARNING
Torque wrench tightening specifications
must strictly be adhered to. Locking de-
vices (e.g.: locking tabs, elastic stop nuts,
self-locking fasteners, cotter pin, etc.) must
be installed or replaced with new ones where
specified. If the efficiency of a locking device
is impaired, it must be renewed.
TUNED PIPE
Identification

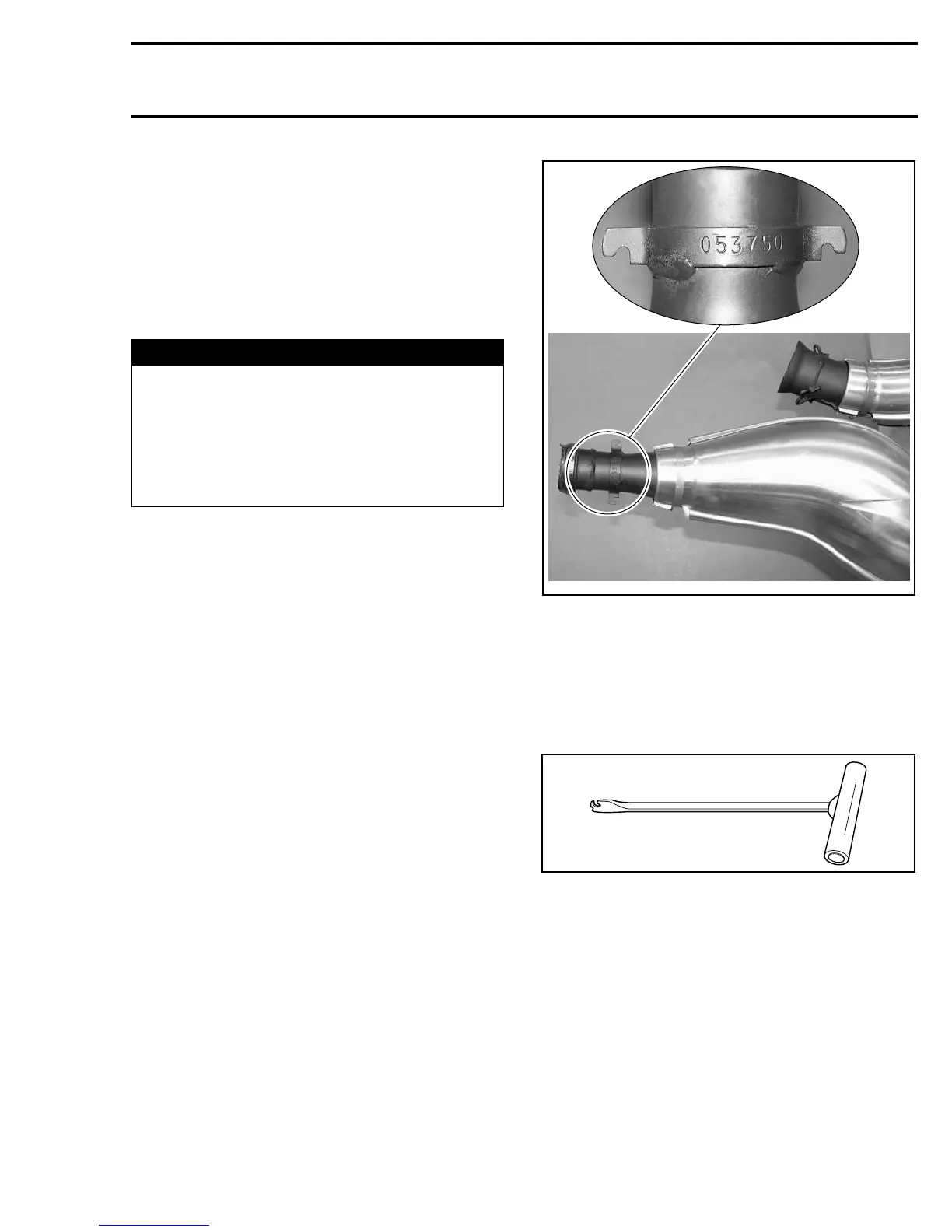

Each tuned pipe is identified by a number. To
use the proper tuned pipe with the proper vehi-
cle, check the number on the welded clamp at the
end of tuned pipe. This number depicts the 6 last
numbers of BRP part number.
A33C2LA
TYPICAL
Removal
Open hood and right side panel.
Remove:
– all exhaust springs no. 1 using exhaust spring
installer/remover (P/N 529 035 989)
529 035 989
– tuned pipe no. 2
– exhaust gasket no. 3 and no. 4.
Inspection
Check:
– tuned pipe shield for damages
– tuned pipe ends for cracks or damages.
Installation
Install doughnut shaped exhau
st gasket no. 3 with
both of its notches aligned w
ith Y-manifold protru-
sions.
mmr2005-114 21
