Ski-Doo 2005 SUMMIT HIGHMARK - Slider Shoe Installation; Front Arm Removal

Section 07 REAR SUSPENSION
Subsection 01 (SC SUSPENSION)
A33F5SA
2
1
TYPICAL

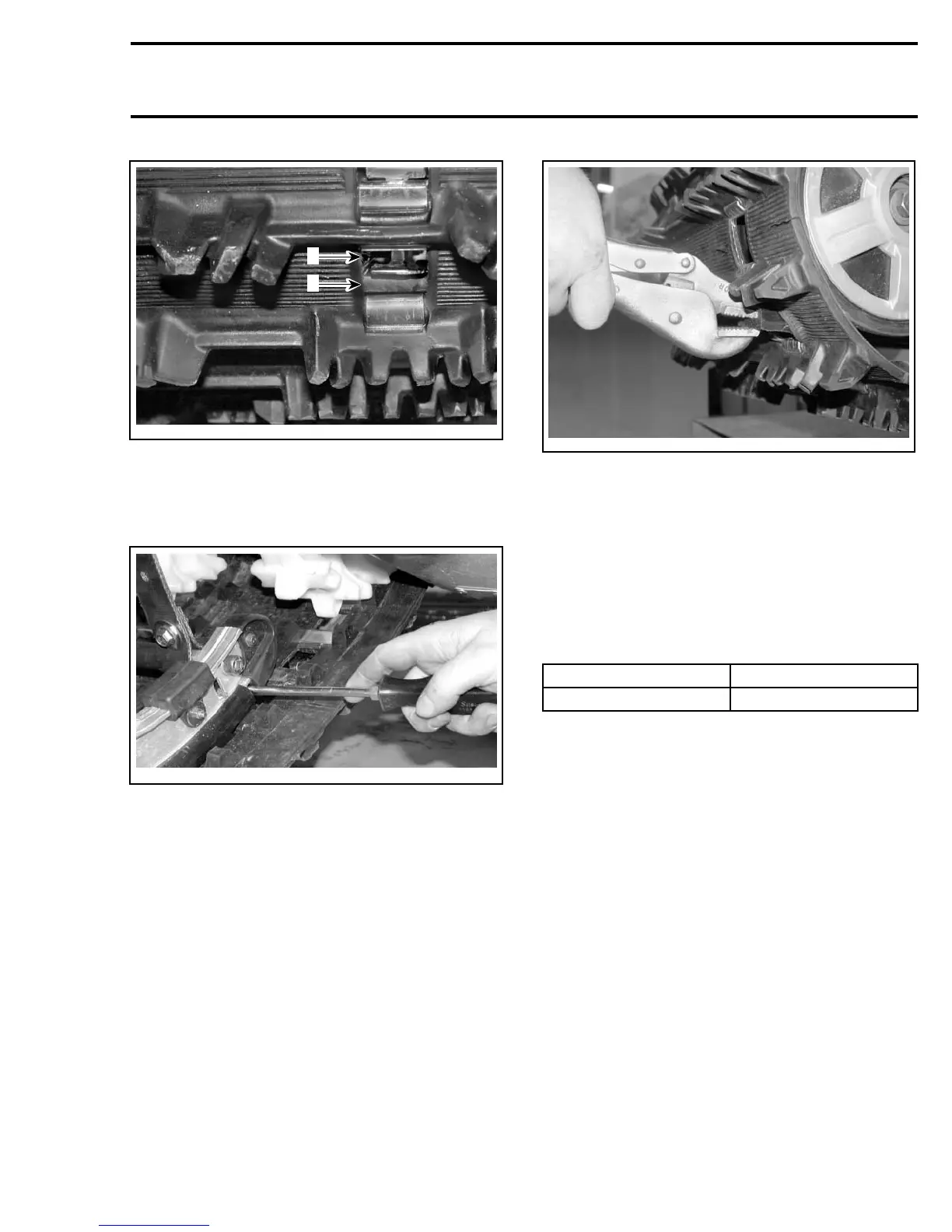

1. Track window
2. Slider shoe
Using a pry bar or screw driver, push slider shoe
until it comes in contact with track.
A33F5TA
TYPICAL — PUSH ON SLIDER SHOE
Using locking pliers, pull slider shoe thru track win-
dow to remove.
NOTE: If necessary, lubricate track window to fa-
cilitate slider shoe removal.
A33F5UA
TYPICAL — PULL ON SLIDER SHOE TO REMOVE
SLIDER SHOE INSTALLATION
Installation is reverse of removal procedure. Pay
attention to the following details.
Make sure to insert slider shoe end with hole first.
Respect the following tightening torque specifica-
tion:
DESCRIPTION TIGHTENING TORQUE
Slider shoe nut 2.5 N•m(22lbf•in)
FRONT ARM REMOVAL
NOTE: Front arm can be removed with suspen-
sion in place.
Lift rear of vehicle and support it off the ground.
Remove the following:
– shock upper bolt and nut
– front arm lower bolts and washers
– unfasten one end of stopper strap(s)
– remove front arm upper bolts, nuts and wash-
ers.
Remove front arm.
mmr2005-147 251
