CASE-IN COMPONENTS
Metallic Gaskets
A00A3VA
1
1. Proper strength Loctite
– Clean inner housing diameter and outer gasket
diameter.
– Spray housing and gasket with Loctite Primer N
(P/N 293 800 041).

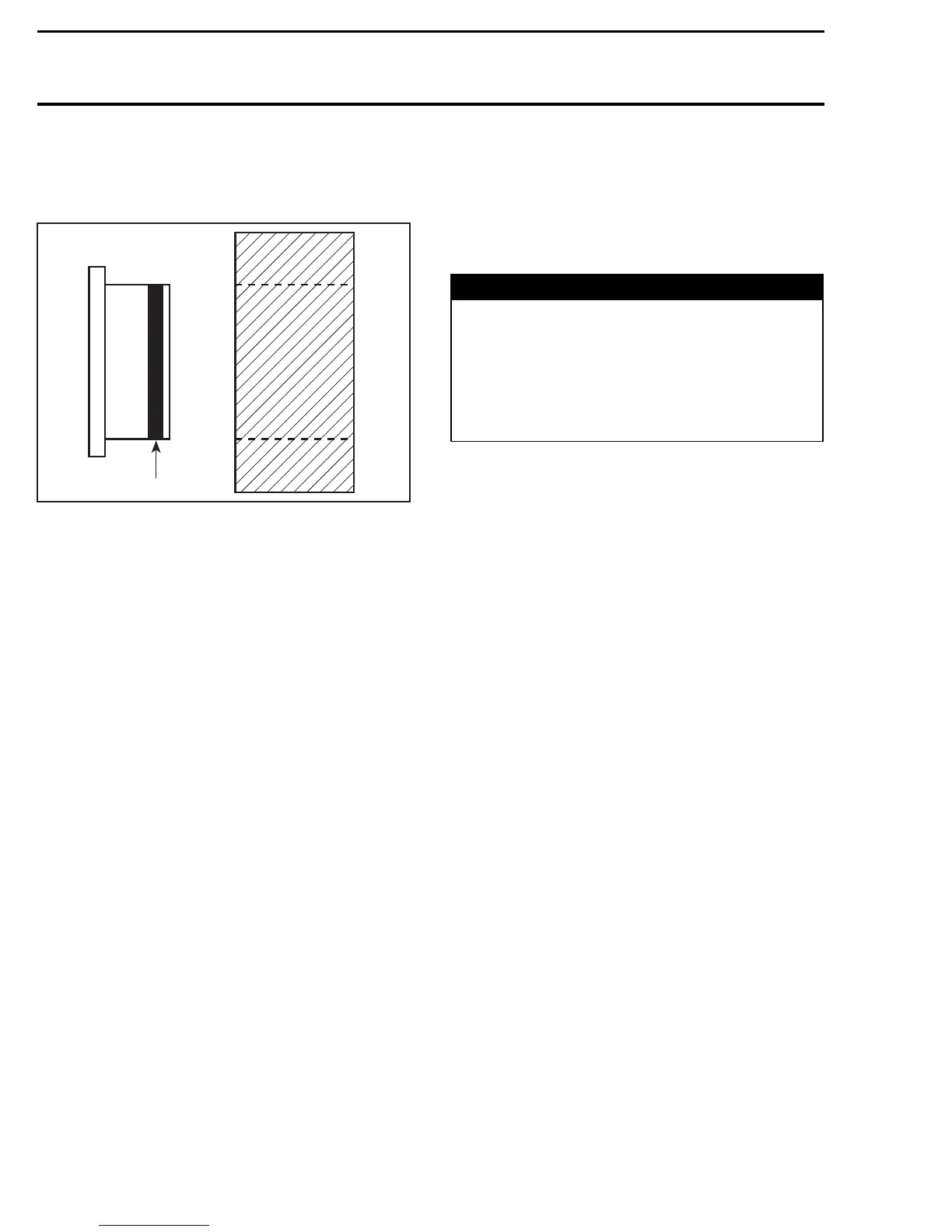

– Apply a strip of proper strength Loctite on lead-
ing edge of outer metallic gasket diameter.
NOTE: Any Loctite product can be used here. A
low strength liquid is recommended as normal
strength and gap are required.
– Install according to standard procedure.
– Wipe off surplus.
– Allowittocurefor30minutes.
NOTE: Normally used on worn-out housings to
prevent leaking or sliding.
It is generally not necessary to remove gasket
compound applied on outer gasket diameter.
TIGHTENING TORQUE
Tighten fasteners to torque mentioned in explod-
ed views and/or text, When they are not specified,
refer to following table. The table also gives the
metric conversion.
WARNING
Torque wrench tightening specifications
must strictly be adhered to. Locking devices
(ex.: locking tabs, elastic stop nuts, self-lock-
ing fasteners, etc.) must be installed or
replaced with new ones, where specified. If
the efficiency of a locking device is impaired,
it must be renewed.
In order to avoid a poor assembling, tighten
screws, bolts or nuts in accordance with the
following procedure:
– Manually screw all screws, bolts and/or nuts.
– Apply the half of the recommended torque val-
ue.
CAUTION: Be sure to use proper tightening
torque for the proper strength grade.
NOTE: When possible, always apply torque on
the nut.
– Torque at the recommended torque value.
NOTE: Always torque screws, bolts and/or nuts
in a criss-cross sequence.
