Section 08 STEERING/FRONT SUSPENSION
Subsection 01 (STEERING SYSTEM)
2
A33G0IA
3
1

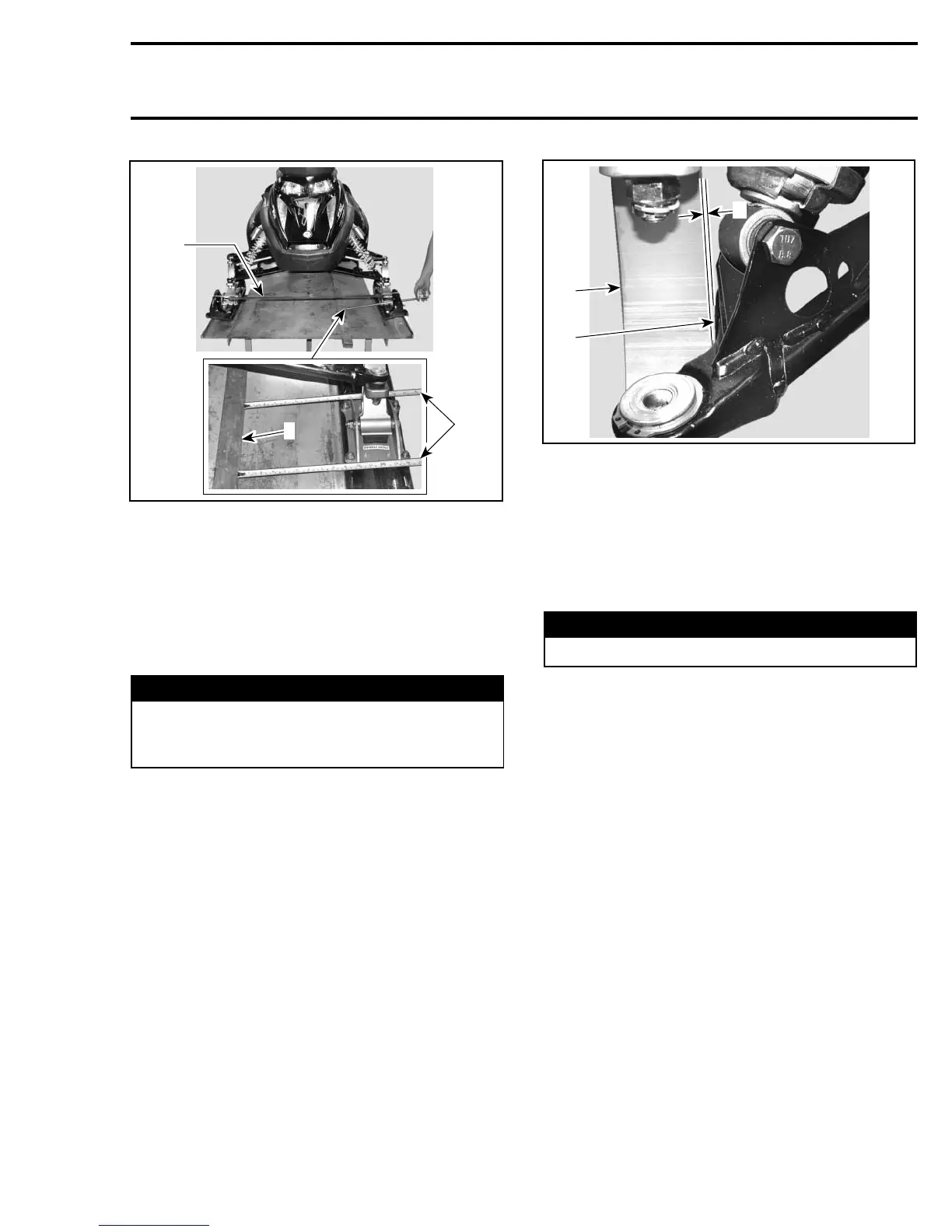

TYPICAL
1. Straight edge
2. Rubber cord
3. Measure at rear and front of ski bridge
If adjustment is needed:
– Loosen jam nuts of both tie rods no. 11.
– Turnthetierodtochangeitslength.
– Retighten jam nuts.

WARNING
Never lengthen tie rod so that the external
unengaged threaded portion of ball joint ex-
ceeds 20 mm (25/32 in).
Once ski alignment is done check that ski leg
rests against lower arm or is not more than 2 mm
(5/64 in) from lower arm when the handlebar is
fully turned.
1
2
A33G0HB
A
RIGHT HAND SIDE SHOWN
1. Ski leg
2. Lower arm
A. 2 mm (5/64 in)
Ifthedistanceismorethanthespecifieddistance
on one side then check for bent parts.
LUBRICATION

WARNING
Do not lubricate throttle cable or housing.
Use suspension synthetic grease (P/N 293 550
033) on:
– Grease fitting no. 16 of LH and RH swivel arms.
– Lower and upper steering column bushings.
mmr2005-141 289
