Ski-Doo 2005 SUMMIT HIGHMARK - Air Intake Silencer Installation (Engine Side); Adaptor Plate Removal; Adaptor Plate Installation; Intake Deflector;Filter Removal

Section02ENGINE
Subsection 02 (AIR INTAKE SYSTEM)

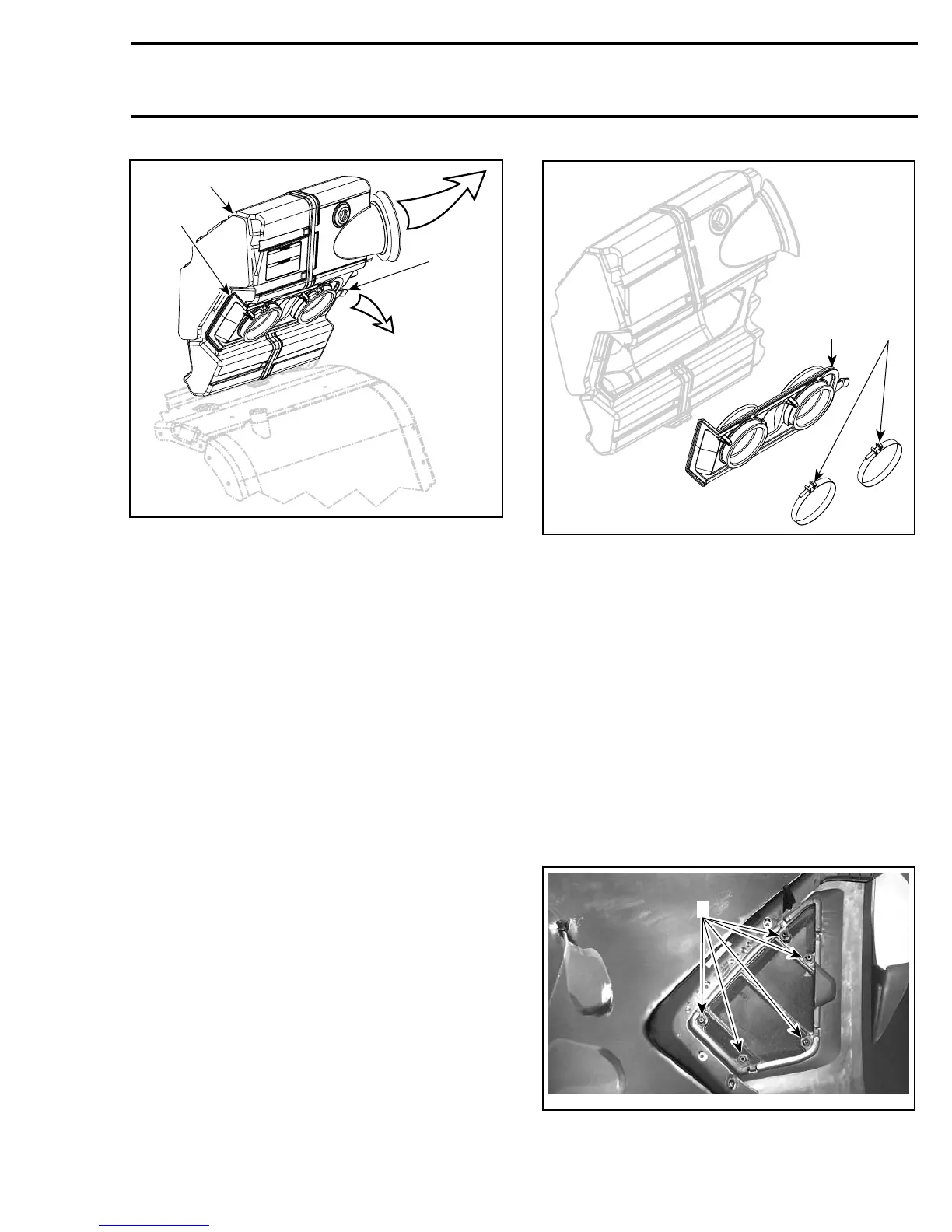

A35C07A
1
2
3
1. Adaptor plate
2. Locking tab
3. Air intake silencer
AIR INTAKE SILENCER
INSTALLATION (ENGINE SIDE)
The installation is the reverse of the removal pro-
cedure.
ADAPTOR PLATE REMOVAL
Open LH side panel.
Remove air intake silencer (engine side), refer to
procedure above.
Unscrew clamps from throttle body.
Remove adaptor plate.
12
A35C08A
1. Clamps
2. Adaptor plate
ADAPTOR PLATE INSTALLATION
The installation is the reverse of the removal pro-
cedure.
INTAKE DEFLECTOR/FILTER
REMOVAL
Open LH side panel.
Remove air intake silencer (body side), refer to
procedure above.
Remove push nuts retaining intake deflector to LH
side panel.
1
A35C09A
1. Push nuts
mmr2005-149 17
