Section 06 DRIVE SYSTEM
Subsection 07 (DRIVE AXLE)
A33D0OA

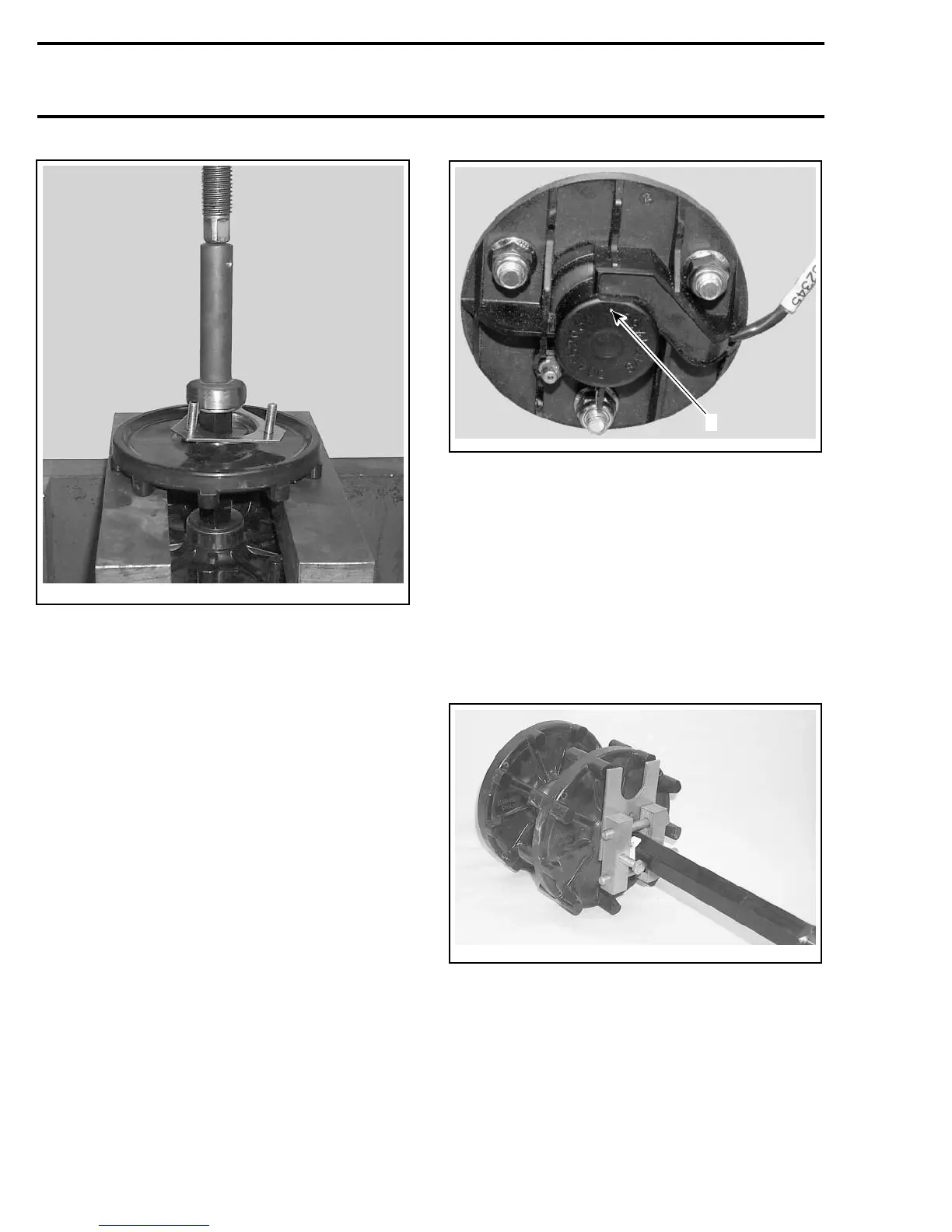

The bearing no. 9 must have its shield facing the
sprocket.
The drive axle bearing in chaincase must have its
shield facing right side (cover).
Index speedometer magnetic adapter no. 4 in
drive axle and push until it is completely inserted
in its hole.
LUBRICATION
Lubricate end housing bearing with synthetic
grease (P/N 219 700 417). Continue lubricat-
ing until grease flows out of the pilot hole on
speedometer sensor.
A32D44A
1
TYPICAL
1. Lubricate until grease flows out here
ADJUSTMENT
Sprocket/Track Alignment
CAUTION: Do not tamper with sprocket/track
alignment if frame or suspension is damaged.
Sprocketsmayberepositionedtofitlugswithout
removing drive axle.
Use drive axle sprocket adjuster kit (P/N 861 725
700).
A33D0PA
TYPICAL
238
mmr2005-137
