Section 06 DRIVE SYSTEM
Subsection 05 (BRAKE)
A35D06A
1

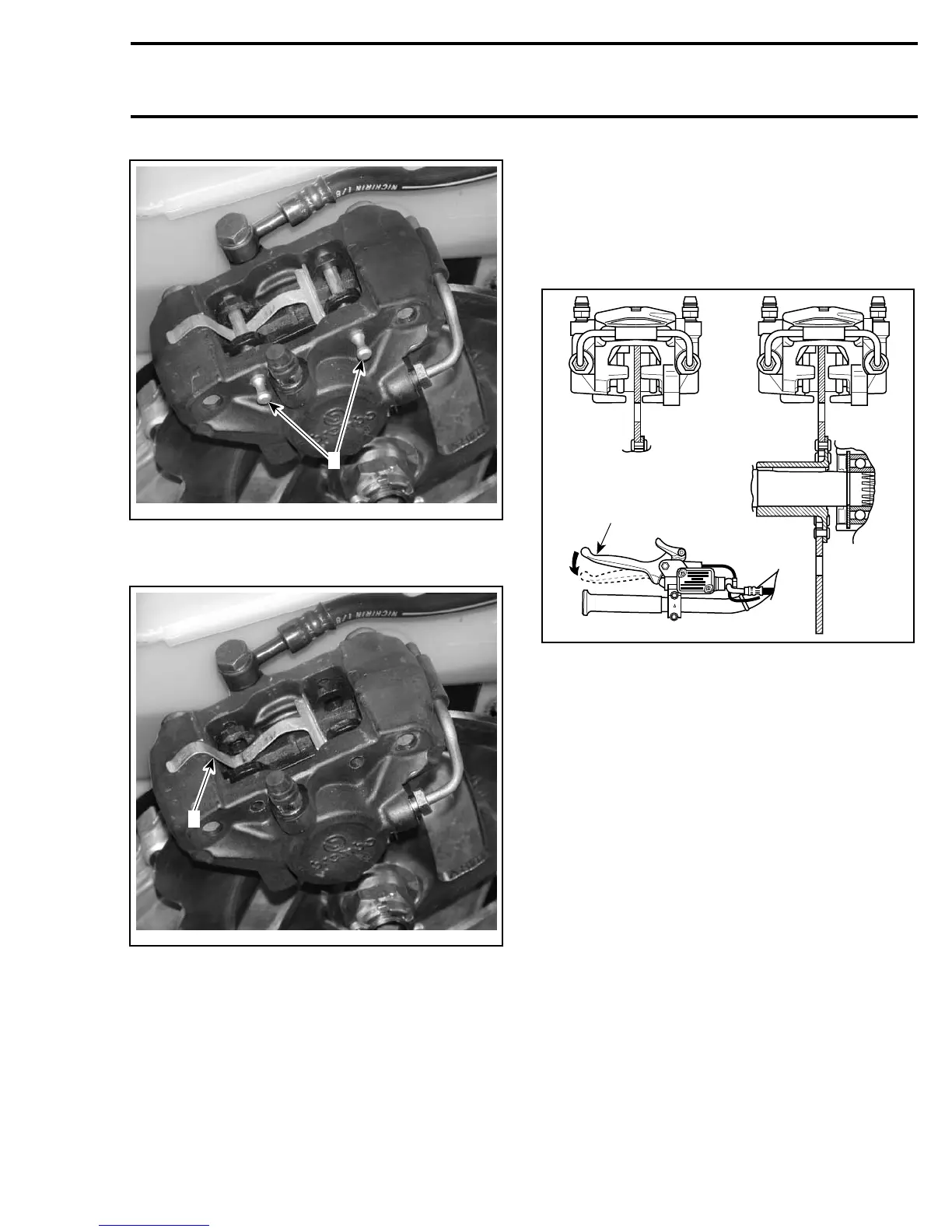

1. Pad pins
Remove pad spring no. 11.
A35D07A
1
1. Pad spring
Remove brake pads no. 12 from caliper.
Installation
Clean pistons then push them inward before in-
stalling new brake pads.
Install brake pads and all other removed parts.
The brake disc no. 13 must be centered in caliper.
Apply brake then check for proper brake disc po-
sitioning.
Push on appropriate caliper piston in order to
move pad inward allowing proper brake disc po-
sitioning.
1
A03D2KA
2
3
TYPICAL
1. Brake disc not centered
2. Brake disc centered
3. Apply brake before checking
Apply brake then recheck.
CALIPER
Removal
Drain brake system.
Unscrew Banjo bolt no. 14 and discard sealing
rings no. 15.
Align brake disc slots with caliper bolts no. 16 then
unscrew them.
mmr2005-135 219
