Ski-Doo 2005 SUMMIT HIGHMARK - Engine Temperature Gauge; Electric Fuel Gauge

Section 05 ELECTRICAL SYSTEM
Subsection 05 (ACCESSORIES AND LIGHTING SYSTEM)

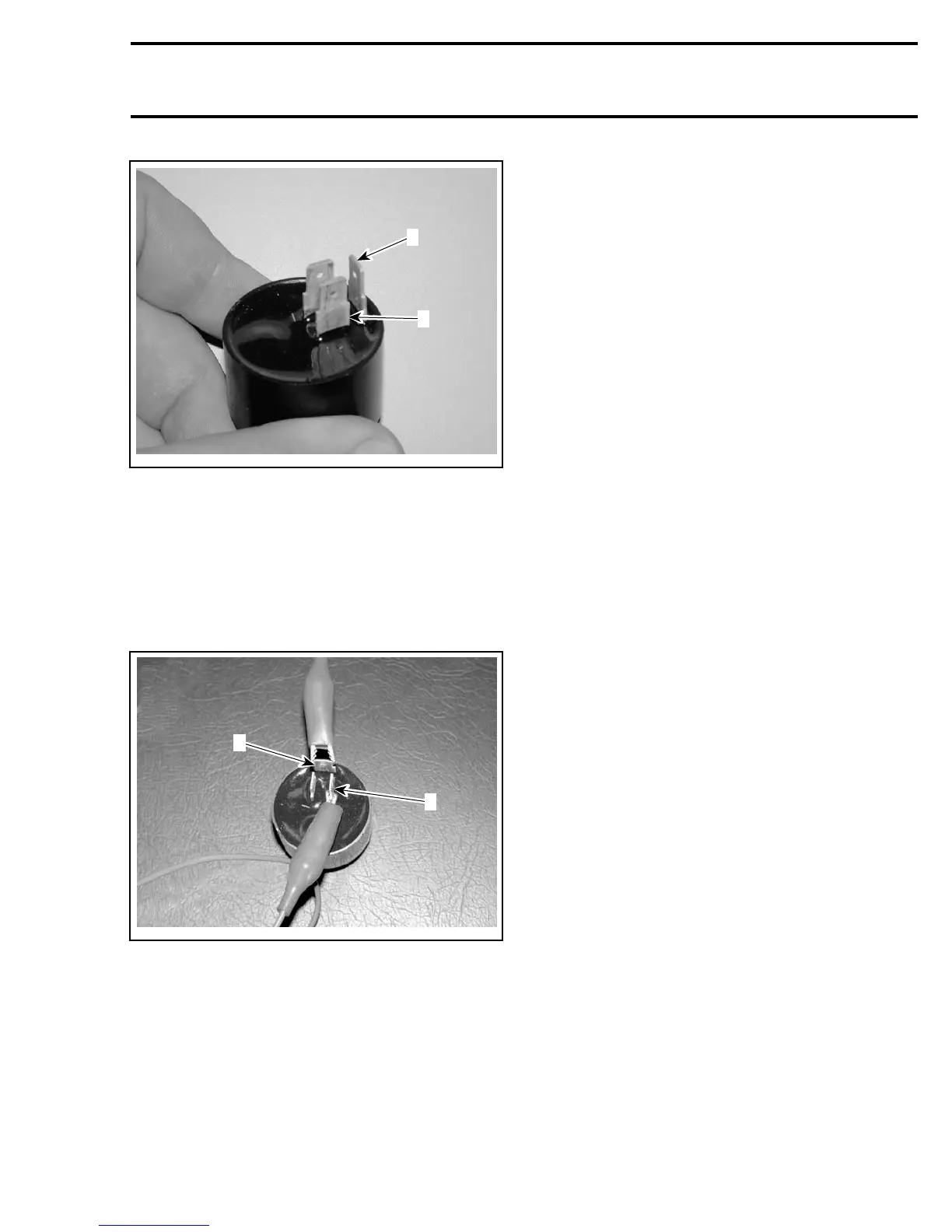

A32E3RA
2
1
1. RED/GREY wire on positive tab
2. BEIGE/BLACKwireonnegativetab
Using jumper wires, connect battery positive post
to beeper positive tab.
Connect battery negative post to beeper negative
tab. See next photo.
CAUTION: To avoid beeper damage, ensure
that polarity is respected.
A32E3SA
1
2
TYPICAL — 12-VOLT BATTERY PLUGGED TO BEEPER
1. Beeper positive tab
2. Beeper negative tab
A continuous sound should be heard. If not, re-
place the beeper with a new one.
If the beeper is good, check connectors, fuse and
wiring harness.
Installation
To install beeper, reverse the removal procedure.
Check connectors position.
ENGINE TEMPERATURE GAUGE
Tes t
Check fuse, connectors and harness.
Check the condition of relay 2 by using the BUDS
software.
Check temperature sensor.
Replace the gauge.
Removal
Remove the accessories panel.
Removetheringaroundthegaugebypressing
both tabs.
Unscrew the central nut and remove the support.
Unplug connector.
Remove gauge.
Installation
The installation is the reverse of removal proce-
dure.
ELECTRIC FUEL GAUGE
Tes t
Check fuse, connectors and harness.
Check relay 2 by using BUDS software.
Check fuel sensor on fuel tank.
Replace electric fuel gauge.
Removal
Remove the accessories panel.
Removetheringaroundthegaugebypressing
both tabs.
Unscrew the central nut and remove the support.
Unplug connector and remove gauge.
Installation
The installation is the reverse of the removal pro-
cedure.
mmr2005-130 179
