Section02ENGINE
Subsection 06 (E-RAVE SYSTEM)
A35C0PA
1
2

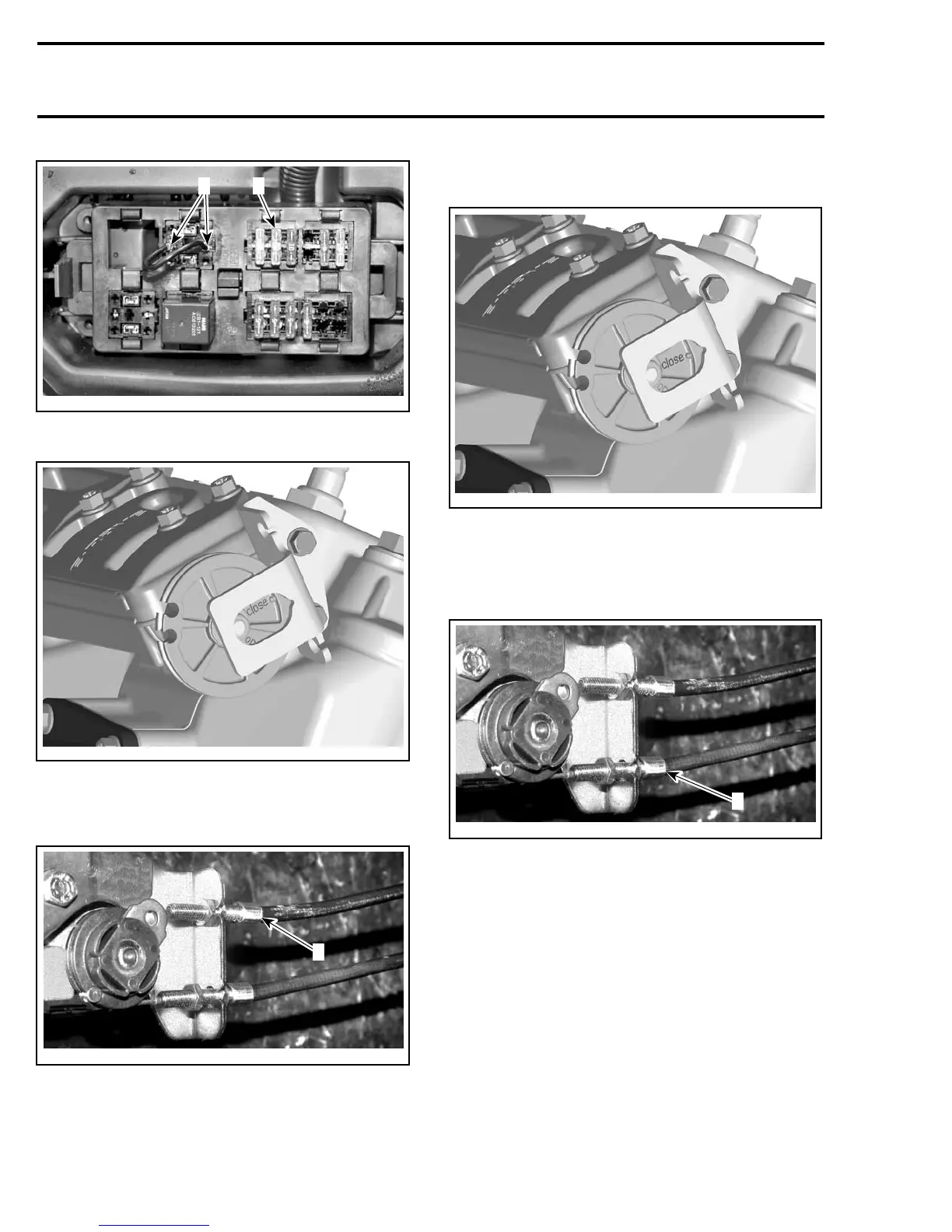

1. Jumper
2. Headlight fuse
A35C2IA
ADJUSTMENT POSITION
Tighten top cable adjuster (closing cable) with just
enough force to remove play in cable.
A35C0IA
1
1. Top (closing) cable adjuster
Install DESS key and set engine cut-out switch to
OFF.
Press START/RER button. E-RAVE shaft pulley
should turn to the Close position.
A35C0GA
Readjust top (closing) cable as necessary.
Remove relay jumper.
Tighten bottom cable adjuster (opening cable) to
remove play in cable.
A35C0IB
1
1. Bottom (opening) cable adjuster
NOTE: A cable that is too tight will make the sys-
tem too stiff to operate smoothly.
Repeat the E-RAVE DYNAMIC TEST above 2-3
times then recheck the cables free-play. Readjust
as necessary. Check with VCK and B.U.D.S. for
fault codes.
E-RAVE ACTUATOR
Inspection
Refer to E-RAVE DYNAMIC TEST above.
46 mmr2005-148
