Remove front bumper.
Installation
The installation is the reverse of removal proce-
dure.
BOTTOM PAN
Removal
Remove front bumper.
Using Supertanium™ drill bit (P/N 529 031 800),
drill all rivets retaining bottom pan.
Remove bottom pan.
Installation
The installation is the reverse of removal proce-
dure.
WINDSHIELD
Removal
To remove the windshield, open hood then pull the
bottom part of windshield until its pins come out
of rubber grommets.
Installation
The installation is the reverse of removal proce-
dure.
ACCESS PANEL
Removal
Open hood.
Remove windshield.
Remove retaining screws, one on each sides.

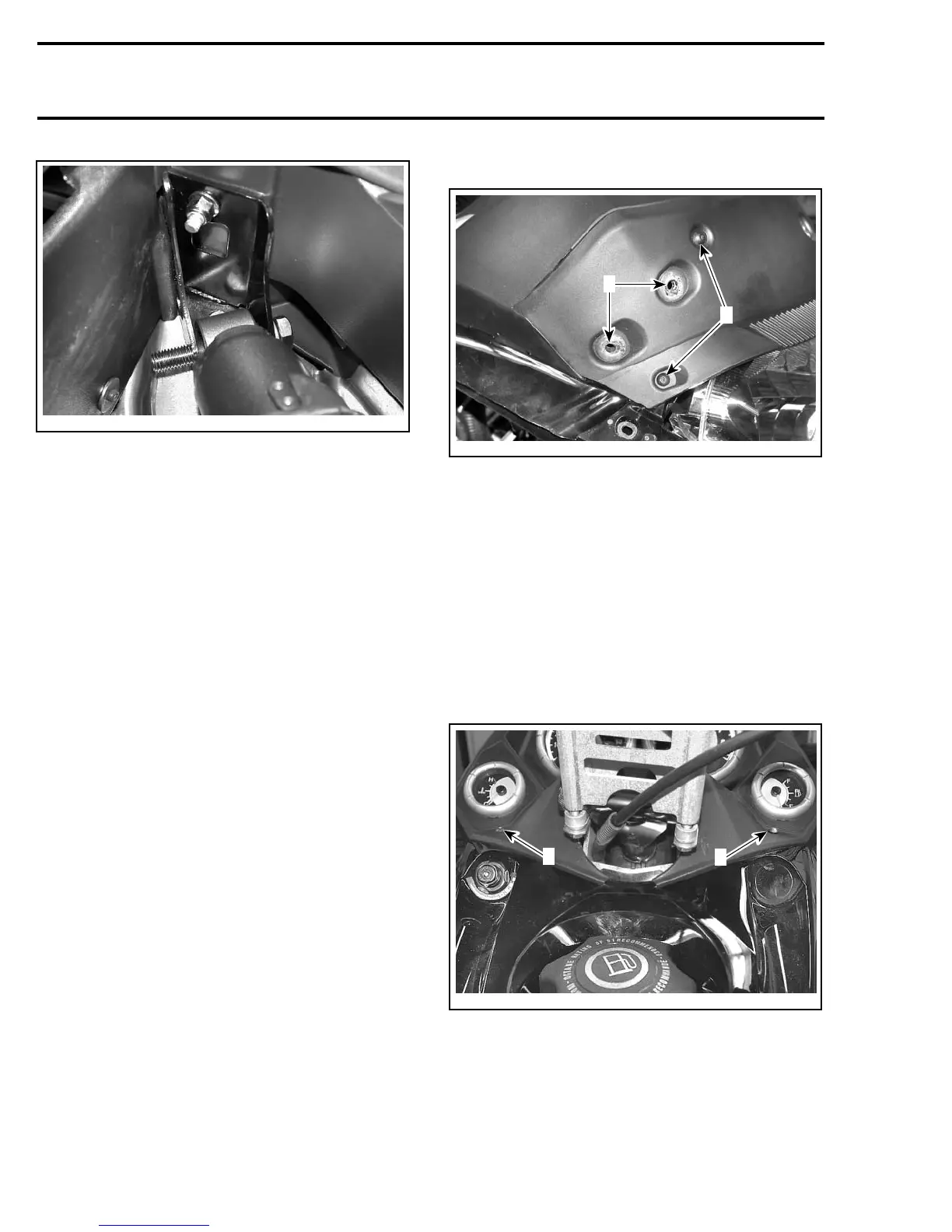

A35H0BA
2
1
1. Access panel screws
2. Rubber grommet for windshield
Installation
The installation is the reverse of removal proce-
dure.
INDICATOR PANEL
Removal
Open hood and remove the access panel.
Remove the indicator panel screws.
A35H0CA
1
1
1. Indicator panel screws
Lift indicator panel and unplug all connectors.
Installation
The installation is the reverse of removal proce-
dure.
306 mmr2005-143
