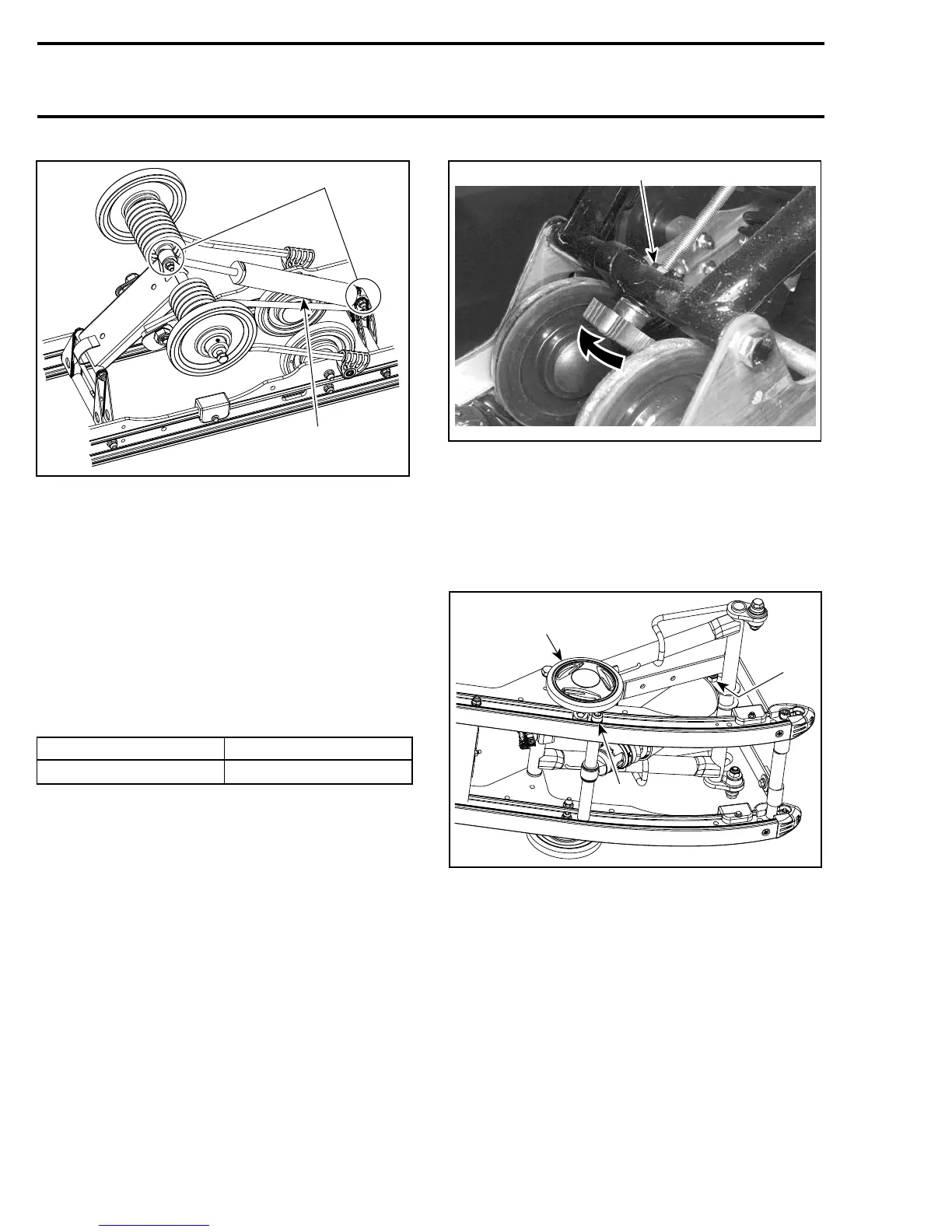

Ski-Doo 2005 SUMMIT HIGHMARK - Rear Shock Absorber Installation; Front Shock Absorber Removal; Front Shock Absorber Installation

Section 07 REAR SUSPENSION
Subsection 01 (SC SUSPENSION)
A33F59B
2
1
TYPICAL
1. Upper/lower bolt and nut
2. Rear shock absorber
REAR SHOCK ABSORBER
INSTALLATION
Installation is the reverse of removal procedure.
CAUTION: Take care not to damage grease fit-
ting.
Respect the following tightening torque specifica-
tion:
DESCRIPTION TIGHTENING TORQUE
Shock upper and lower nut
19.5 N•m(173lbf•in)
FRONT SHOCK ABSORBER
REMOVAL
Lift rear of vehicle and support it off the ground.
Unfasten one end of stopper strap(s) or loosen the
adjuster knob to release shock pressure.
A32E19B
1
1. Loosen lock nut, turn adjuster knob counterclockwise
Unbolt front shock from the top.
Remove front idler wheels to gain access to axle
retaining self-locking screws.
Unbolt axle screws and slide out axle to remove
shock.
A33F5EA
1
2
3
TYPICAL
1. Front shock upper bolt and nut
2. Idler wheel
3. Axle screw
FRONT SHOCK ABSORBER
INSTALLATION
Installation is the reverse of removal procedure.
Respect the following tightening torque specifica-
tion.
248 mmr2005-147
