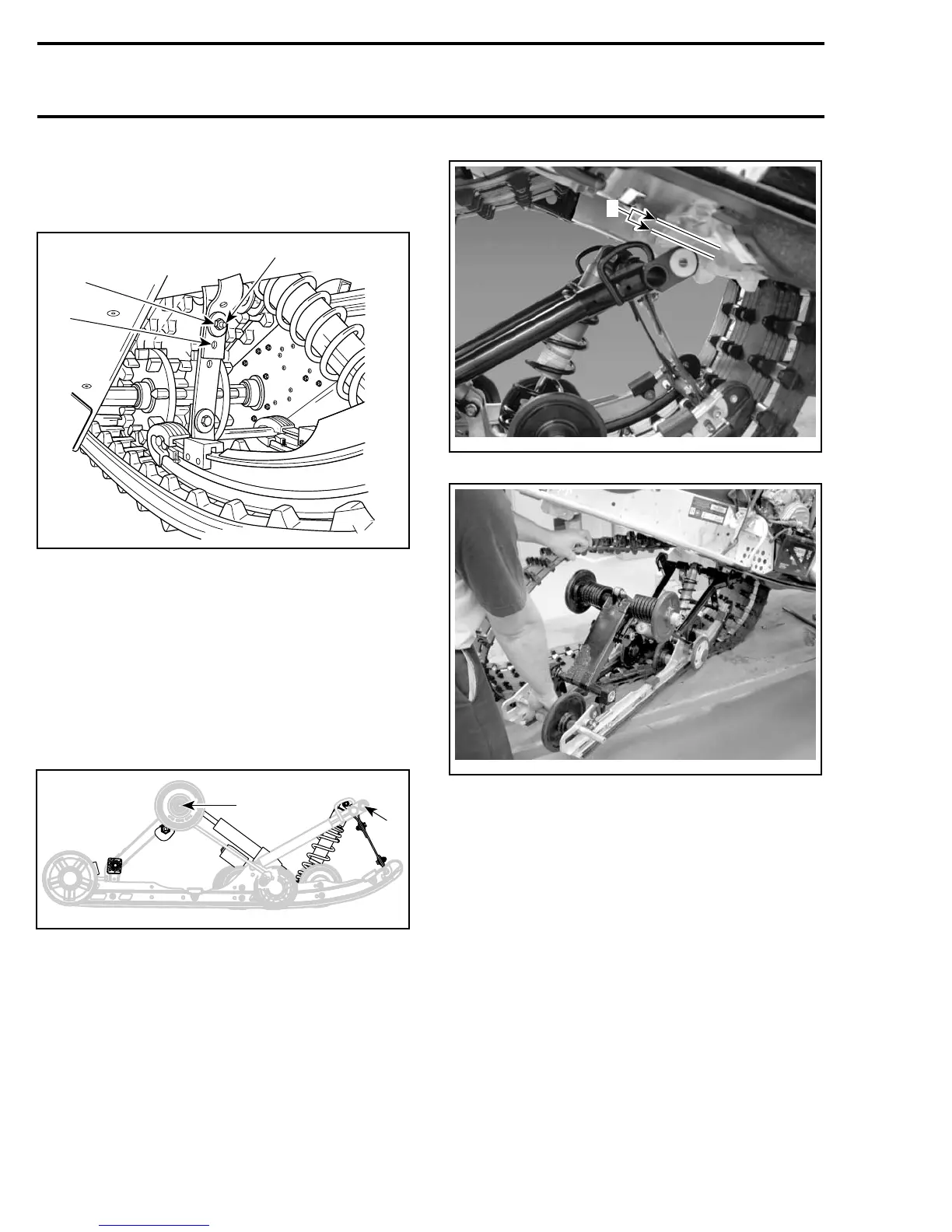

Section 07 REAR SUSPENSION
Subsection 02 (SC 4 SUSPENSION)
Make sure it is attached through proper hole from
the end.
Torque nut to 11 N•m(97lbf•in).
A32F3DA
A
1
2
TYPICAL
1. 1
st
hole
2. 2
nd
hole
A. 11 N•m(97lbf•
in)
SUSPENSION REMOVAL
Lift rear of vehicle and support it off the ground.
Completely loosen track tension.
Remove rear arm top axle screws.
Remove front arm top bolts.
A35F01D
2
1
TYPICAL
1. Remove rear arm top axle screws
2. Remove front arm top bolts
Lift rear of vehicle until front arm as enough clear-
ance to pass underneath tunnel.
A33F5VA
1
1. Enough clearance
A33F5WA
REMOVE SUSPENSION
SUSPENSION INSTALLATION
Installation is reverse of removal procedure. Pay
attention to the following details.
Inspect track thoroughly before reinstalling sus-
pension. Refer to TRACK.
Install suspension into track with front portion
first.
Adjust track tension.
RIDE ADJUSTMENT
Refer to the appropriate Operator’s Guide.
266 mmr2005-139
