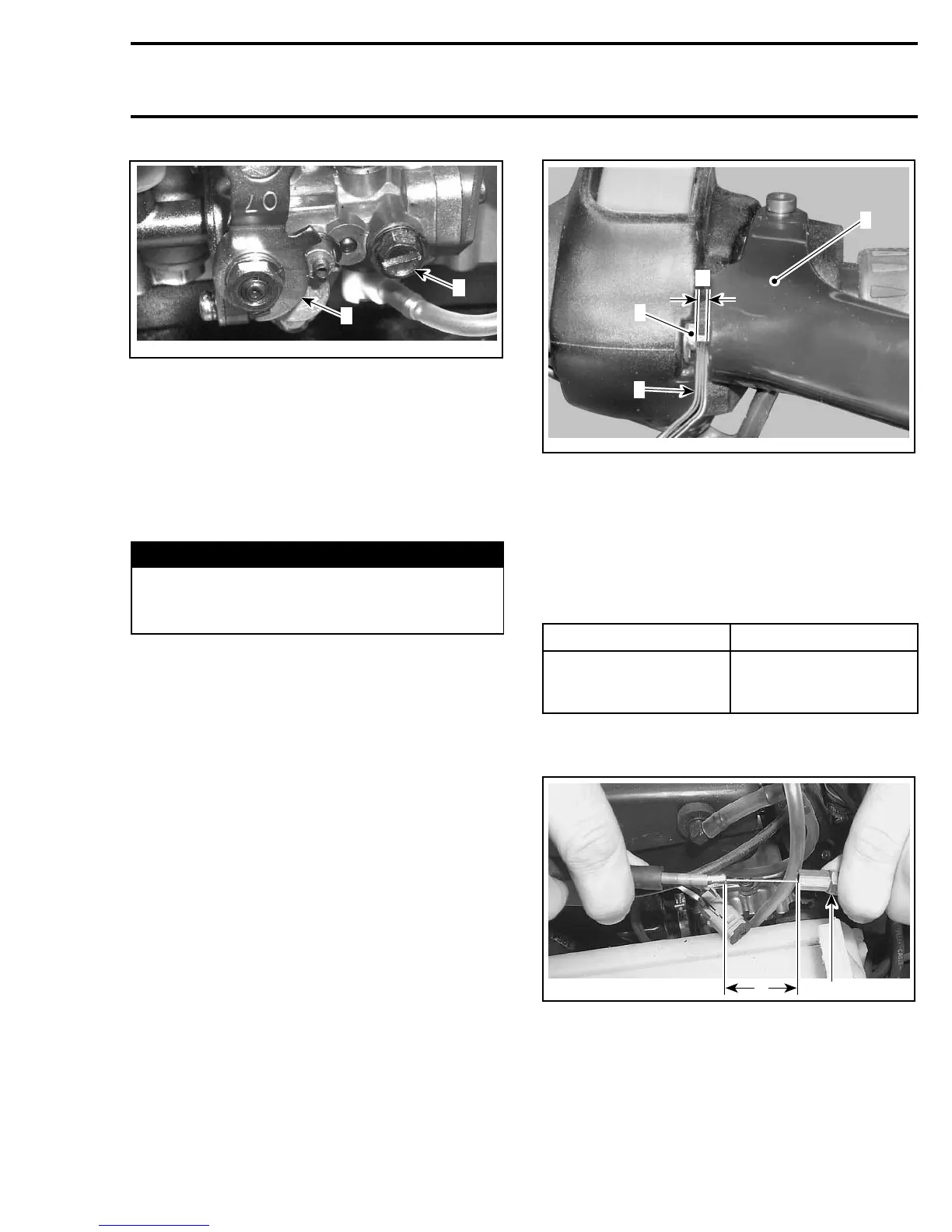

Section02ENGINE
Subsection 12 (OIL INJECTION SYSTEM)
A35C2MA
2
1
1. Bleeder screw
2. Oil pump lever
Reinstall all parts.
Bleed the small oil line between pump and engine
by running engine at idle while holding the pump
lever in fully open position.
NOTE: Make a J hook out of mechanical wire to
lift the lever.
WARNING
No ensure not operate carburetor throttle
mechanism. Secure the rear of the vehicle
on a stand.
ADJUSTMENT
Oil Pump Cable
Before processing with the oil pump cable ad-
justment, verify throttle cable adjustment. Refer
to COMPONENT INSPECTION, REPLACEMENT
AND ADJUSTMENT).
Depress the throttle lever lightly until the cable
is under tension but throttle body are not yet
opened.
Using a feeler gauge, measure the visible distance
between throttle lever and the end of cable hous-
ing.
A33C3QA
1
A
2
3
TYPICAL
1. Feeler gauge
2. Throttle lever
3. End of cable housing
A. Visible distance
Note this measure.
Next, add to measurement “A” the appropriate
specification “B”, using the chart below.
MODELS SPECIFICATION “B”
Mach Z, Summit
Highmark and Summit
Highmark X
16.5 mm (.650 in)
Stretch oil pump cable with a force of 34 N (7.6 lbf)
and measure the length of its visible distance “C”.
1
A32D1OB
C
TYPICAL
1. Adjusting screw lock nut
C. Visible distance for oil pump adjustment
If the visible distance “C” is less or more than “A”
+ “B”, adjust cable distance. To do so, loosen lock
nut, turn adjusting screw in or out and retighten
lock nut.
mmr2005-122 101
