ELECTRIC FUEL PUMP REMOVAL
Remove seat, refer to BODY.
Using B.U.D.S., release pressure from fuel sys-
tem. Refer to COMPONENT INSPECTION, RE-
PLACEMENT AND ADJUSTMENT.
Drainfueltankasmuchaspossible.
Disconnect fuel supply hose from fuel filter line
ass'y.
Disconnect fuel pump electrical connector.

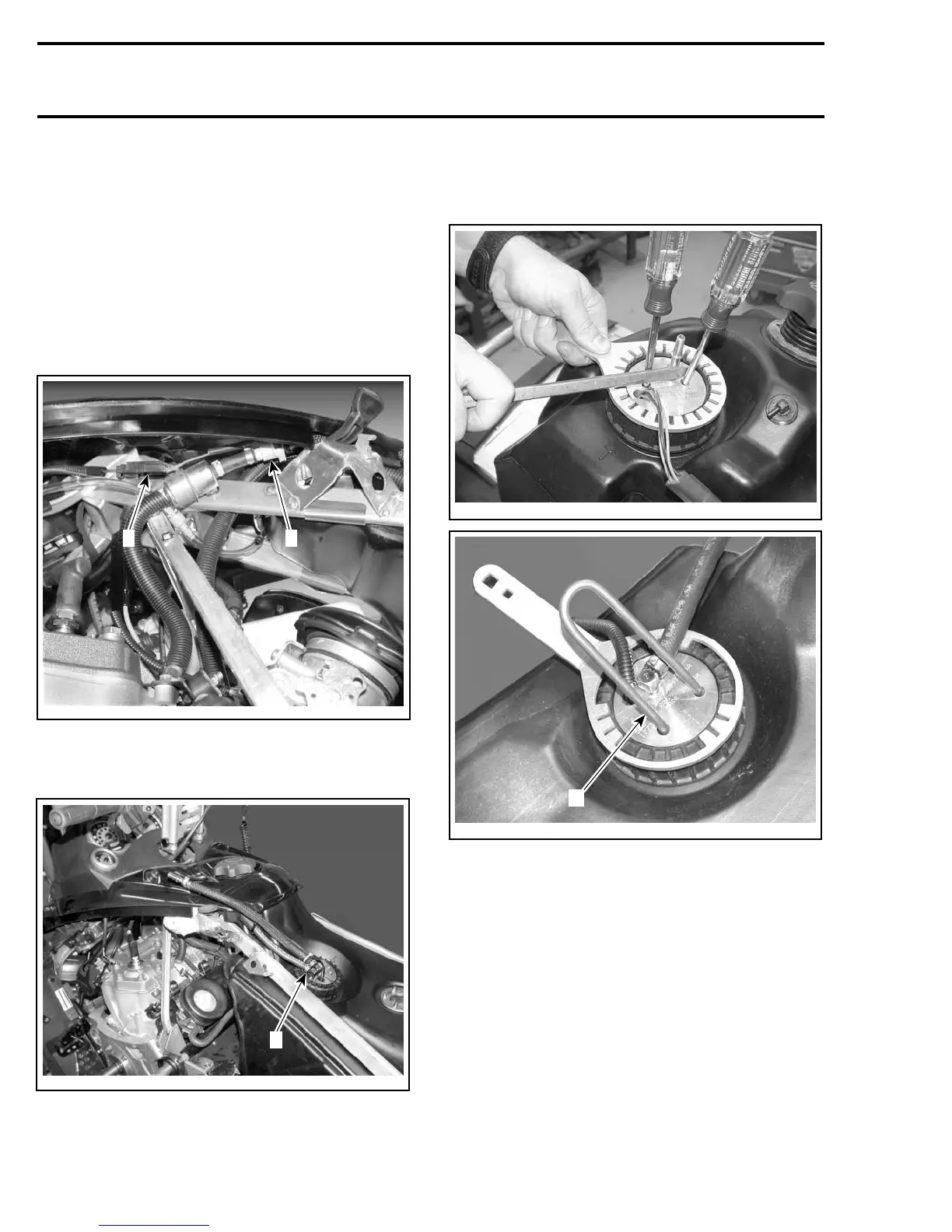

A33C5RA
2 1
1. Disconnect fuel filter line ass'y
2. Unplug connector
Disconnect hose coming from diaphragm pump.
A33C5SA
1
1. Disconnect hose
With two screwdrivers or a bent rod holding the
flange, unscrew fuel pump nut using fuel pump
nut wrench (P/N 529 035 899).
A32I11A
A32I19A
1
1. Bent rod
Remove fuel pump assembly.
