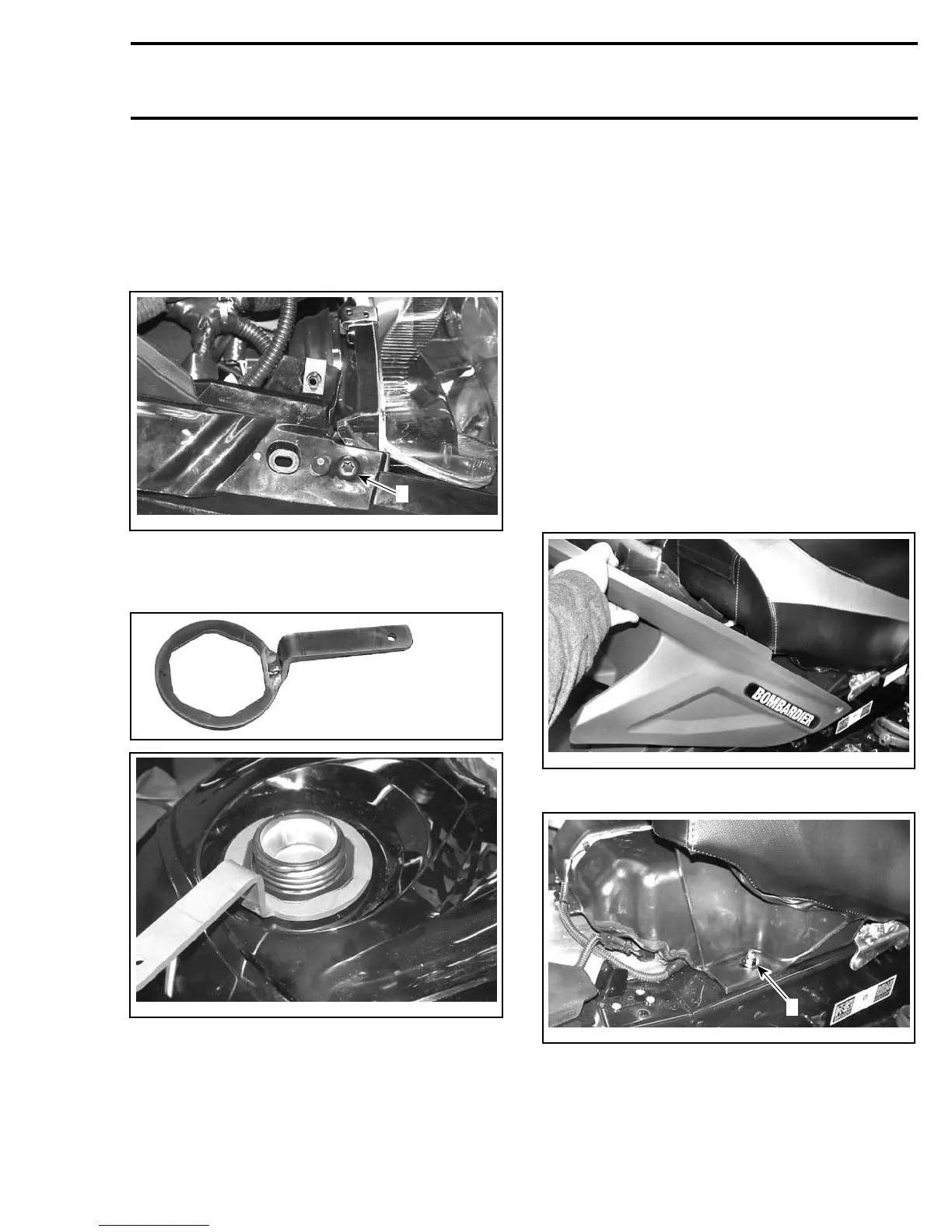

Section09BODY/FRAME
Subsection 01 (BODY)
CONSOLE
Removal
Remove the indicator panel.
Remove the screws near headlamp. One on each
side.
A35H0DA
1
1. Console screw
Using the adjustment wrench (P/N 529 035 891),
unscrew the fuel tank nut.
529 035 891
A35H0EA
Lift up the console and unplug all connectors.
Install fuel tank cap.
Installation
The installation is the reverse of removal proce-
dure.
SEAT
Cleaning
It is recommended to clean the seat with a solu-
tion of warm soapy water, using a soft clean cloth.
CAUTION: Avoid use of harsh detergents such
as strong soaps, degreasing solvents, abrasive
cleaners, paint thinners, etc. that may cause
damage to the seat cover.
Removal
Loosen fuel tank nut by using the adjustment
wrench (P/N 529 035 891).
Remove trunk behind seat.
A35H0FA
Remove both nuts retaining seat to frame.
A35H0GA
1
1. Seatnut(oneoneachside)
Lift the rear of seat then pull the seat backwards.
mmr2005-143 307
