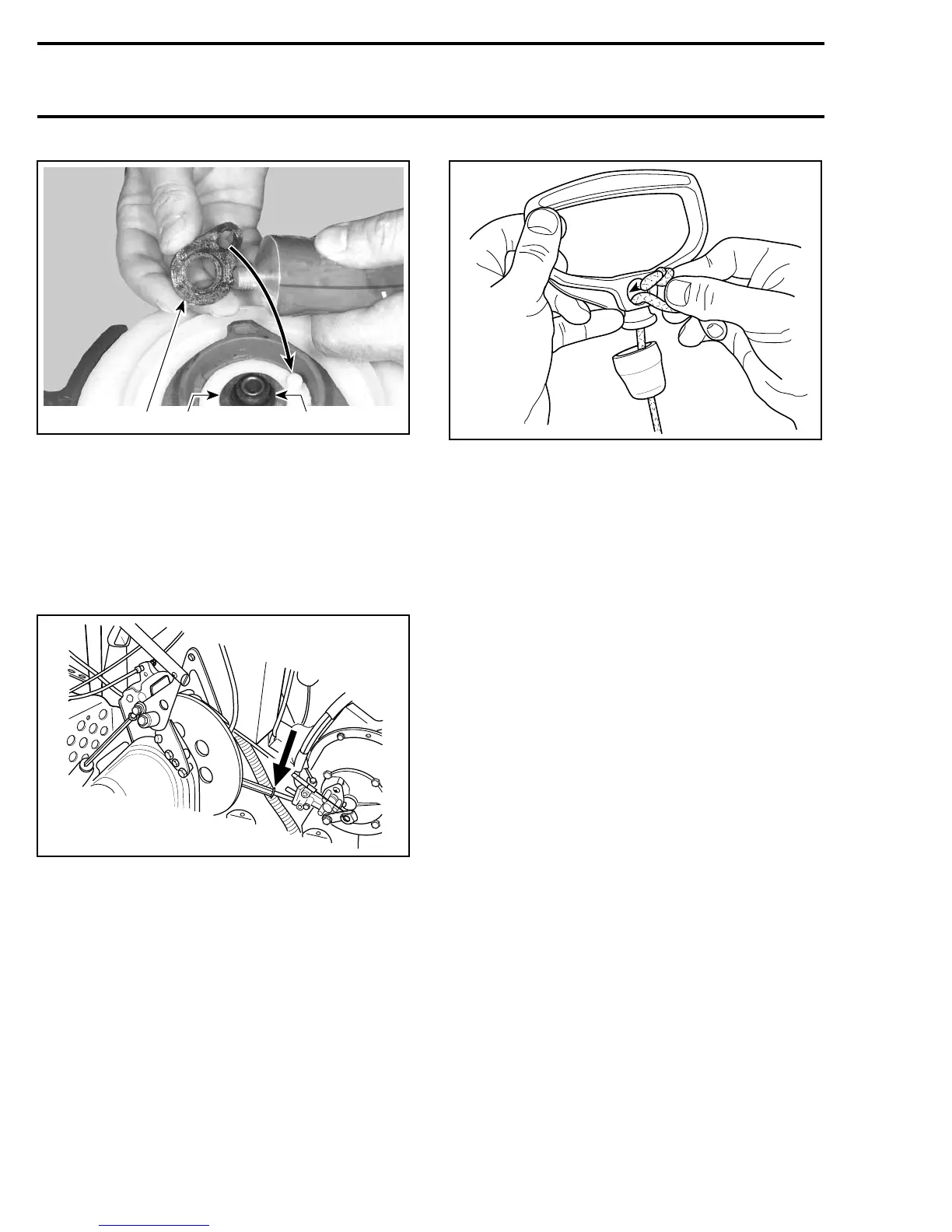

Section02ENGINE
Subsection 11 (REWIND STARTER)
A32C6EA
31 2
1. Step collar
2. O-ring
3. Locking element
Position a new push nut no. 11.
INSTALLATION
Thread starter rope no. 5 through rope guide when
applicable.
A03C0VA
TYPICAL
Reinstall rewind starter assembly on engine.
Prior to installing starter grip on new rope, it is first
necessary to fuse the rope end with a lit match.
Pass rope through starter grip and tie a knot in
the rope end. Fuse the knot with a lit match then
insert rope end down and pull the starter grip over
the knot.
A01C18A
TYPICAL
94
mmr2005-121
