Ski-Doo 2005 SUMMIT HIGHMARK User Manual

Section02ENGINE
Subsection 07 (TOP END)

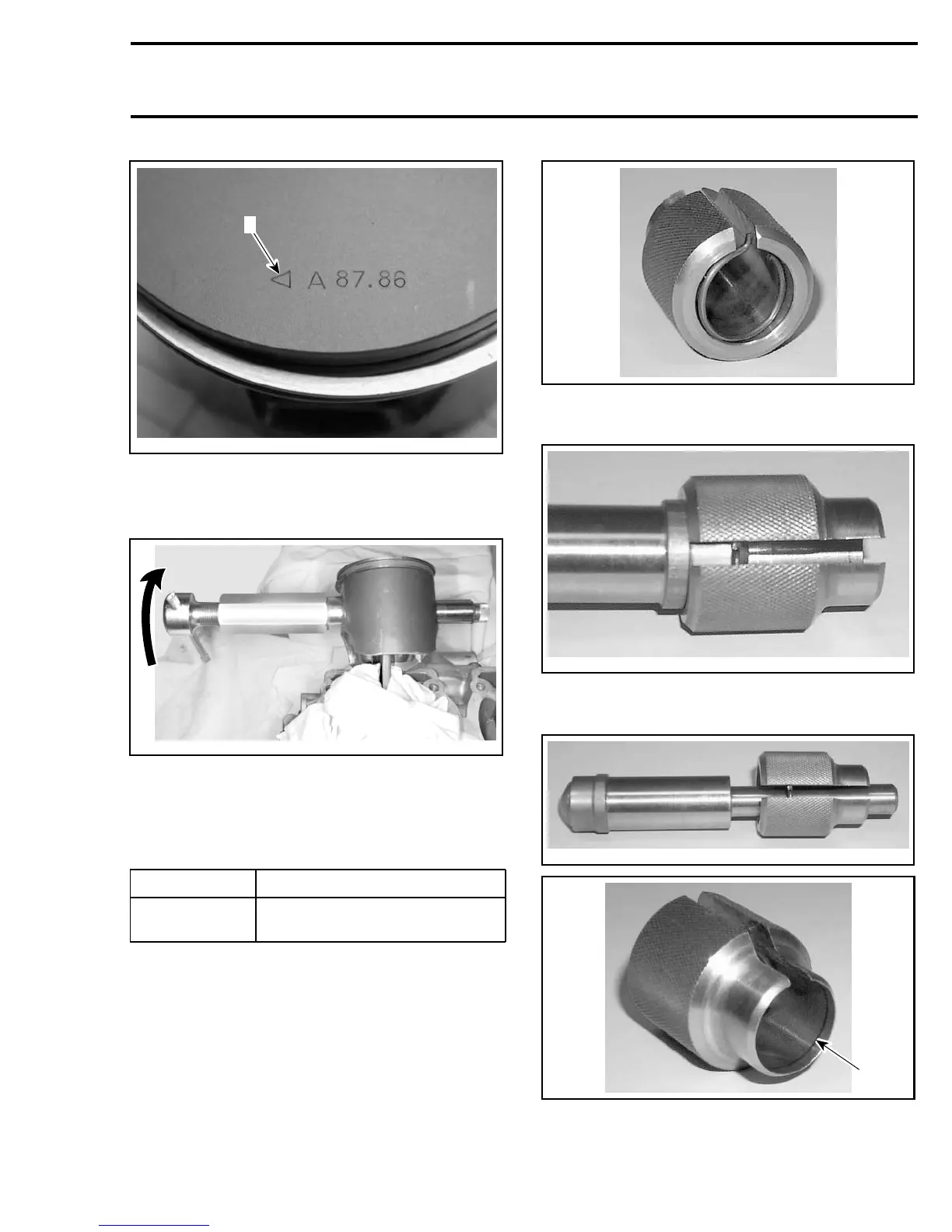

A32CD2B
1
1. Arrow pointing toward exhaust port
Install piston pin puller/installer and turn handle un-
til piston pin is correctly positioned in piston.
A02C2JA
TYPICAL
CAUTION: Always install new circlips.
Use a piston circlip installer to install mono-hook
circlips no. 11.
ENGINE TOOL
995
Piston circlip installer
(P/N 529 035 998)
Insert circlip into support so that, when installed
in piston groove, the tab faces upward.
A32B0AA
With round end of pusher, position circlip perpen-
dicularly to the support axis.
A32B0BA
With the other end of the pusher, push circlip into
the support groove.
A32B0CA
A32B0DA
1
1. Groove
mmr2005-117 57
