Section 08 STEERING/FRONT SUSPENSION
Subsection 02 (FRONT SUSPENSION)
2

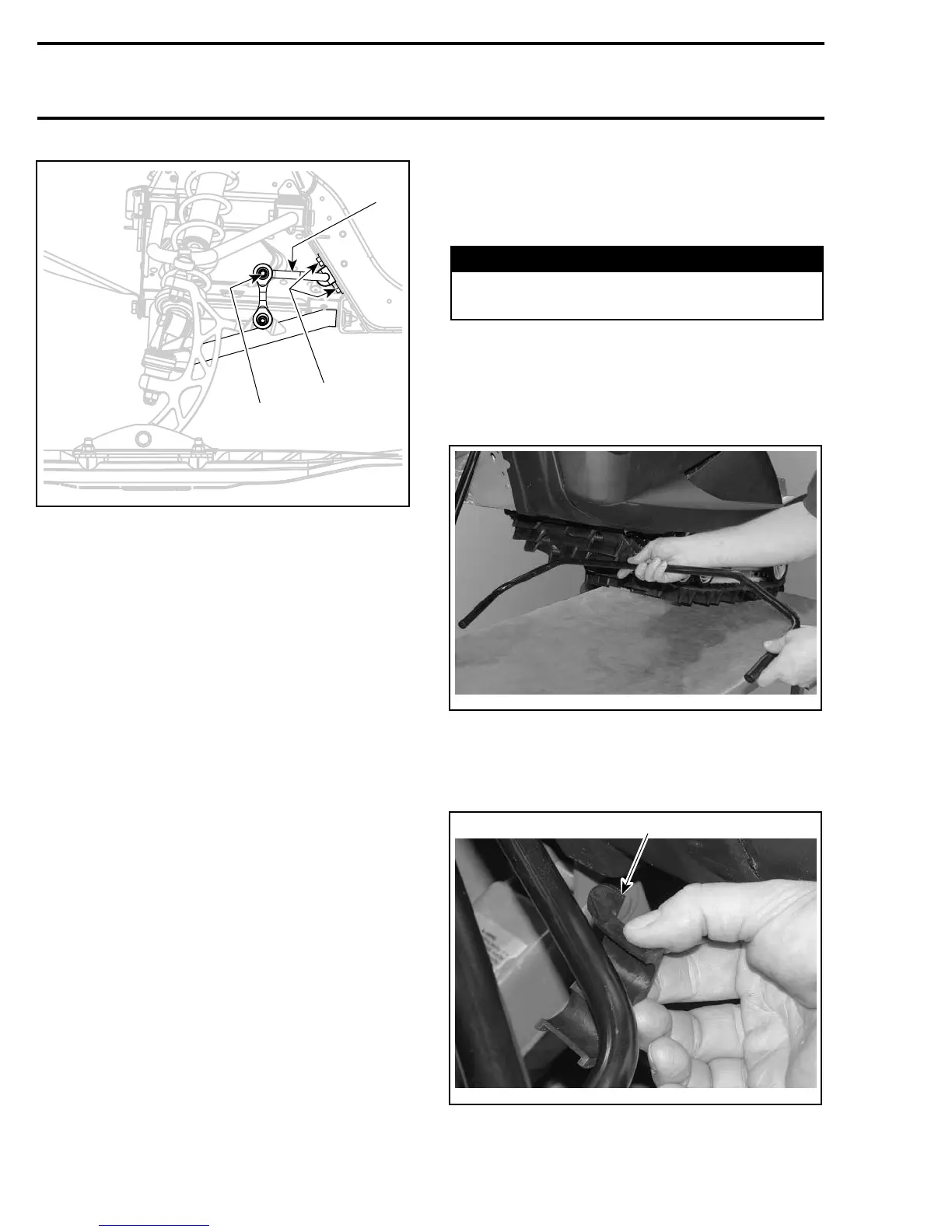

A35F04B
3
1
1. Remove screws
2. Remove retaining clamps and bushings
3. Anti-sway bar
INSPECTION
Check all plastic bushings for wear. Replace as
required.
Check condition of ski leg no. 12. Replace as re-
quired.
Check for straightness of lower and upper arms.
Replace as required.
Check condition of ball joints. Replace as re-
quired.
Check skis and runners no. 5 for wear, replace as
necessary.
Check condition of ski stopper no. 26. Replace it
when deteriorated.
To check condition of shock absorber, refer to
sub-section SHOCK ABSORBER INSPECTION
AND SERVICING in section REAR SUSPENSION.
INSTALLATION
For assembly, reverse the disassembly procedure.
However, pay attention to the following.
Tighten nuts and screws to proper torque as men-
tioned in exploded view.
Nuts with a cotter pin: After applying the prop-
er torque, continue tightening as necessary to al-
low cotter pin insertion. Ensure to properly secure
cotter pin.
WARNING
Always install new cotter pins at assembly
and properly bend their ends.
Anti-Sway Bar
Summit
Ensure to properly position anti-sway bar before
insertion in frame.
A33F26A
Summit and Mach Z
Install the anti-sway bar bushing no. 23 making
sure to place its tab over the access hole located
on the LH side.
1
A33F28A
1. Install bushing as shown
300 mmr2005-142
