Ski-Doo 2005 SUMMIT HIGHMARK - E-Rave Cover; E-Rave Shaft

Section02ENGINE
Subsection 06 (E-RAVE SYSTEM)

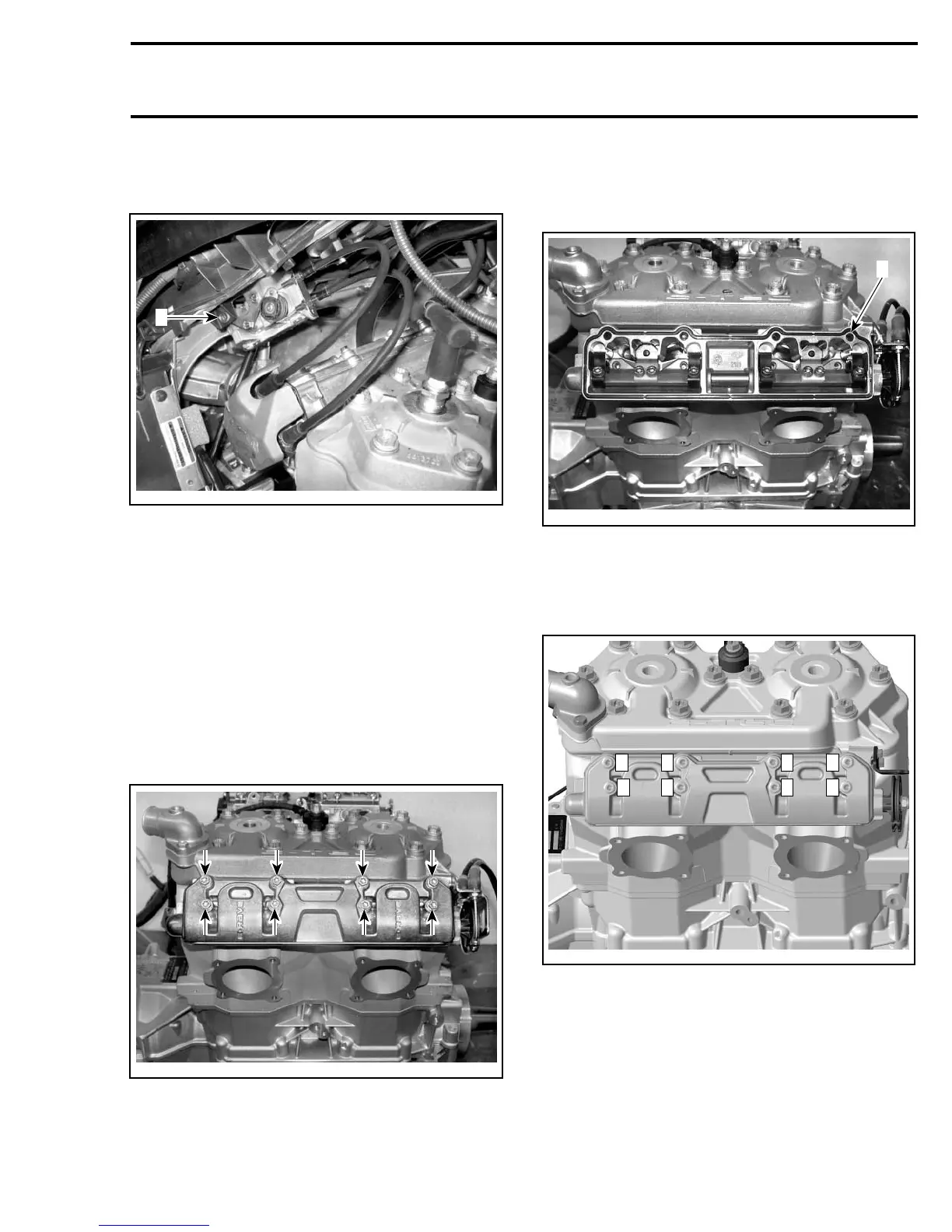

Removal
Remove retaining screw no. 5.
A35C0SA
1
1. Remove screw
Slide E-RAVE actuator no. 3 out.
Disconnect electrical connector.
Detach cable no. 4.
Installation
Reverse removal steps.
E-RAVE COVER
Removal
Remove retaining screws no. 5.
A35C0JA
Remove cover no. 11.
Inspection
Check seal condition. If it is cracked or hard, re-
place seal. Check cover condition.
A35C0KA
1
1. Seal
Installation
Follow this tightening sequence.
A35C1PA
14 2 3
57 6 8
E-RAVE SHAFT
Inspection
Check for smooth mechanical movement of the
E-RAVE system. Feel the bearing radial play. If
excessive, replace bearing.
Check seal area for leaks. If so, replace seal.
mmr2005-148 47
