Section02ENGINE
Subsection 06 (E-RAVE SYSTEM)

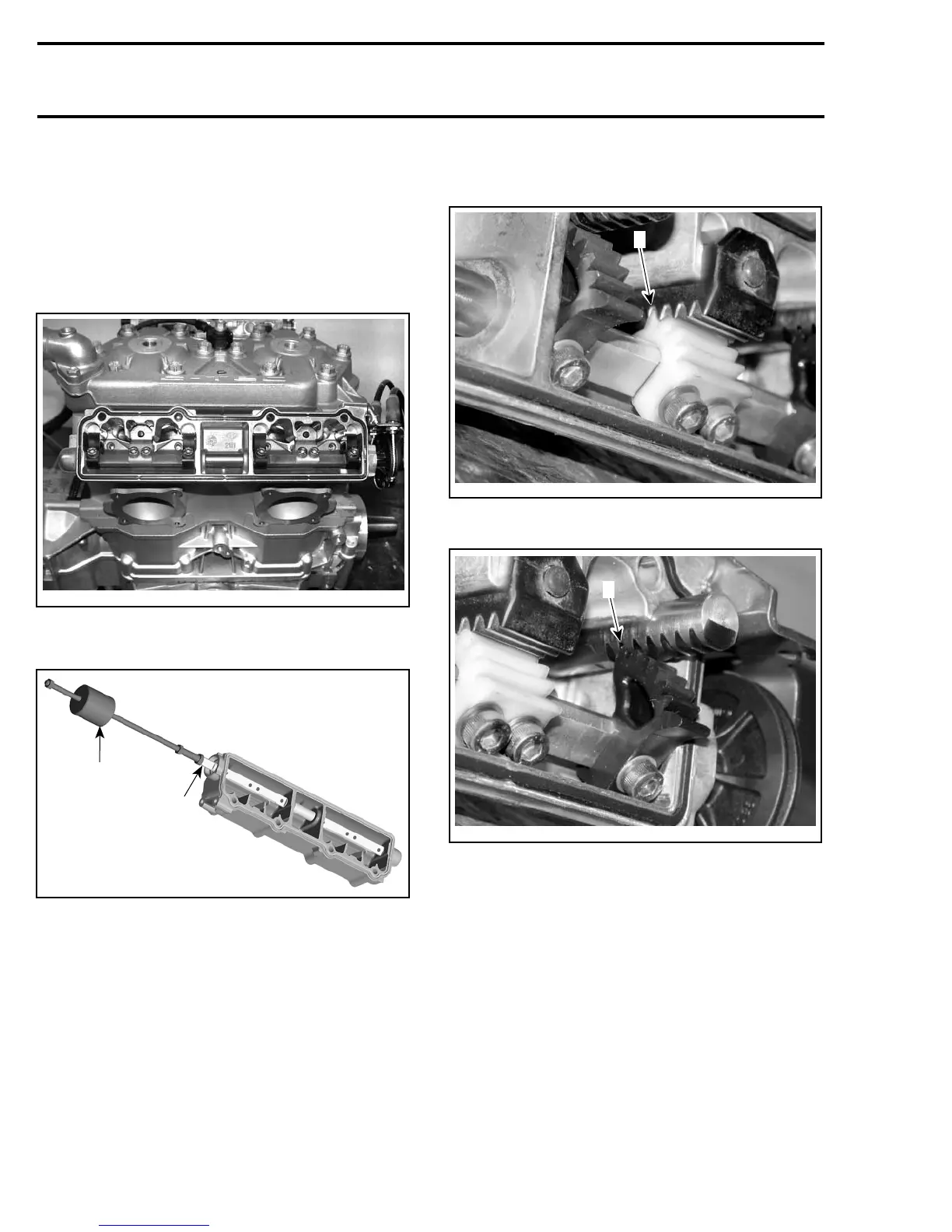

Removal
Remove the following:
E-RAVE cables no. 4.
Pulley no. 2.
Seal then snap ring no. 8.
Drive gears no. 7.
A35C0KB
Reinstall shaft nut then use a hammer puller to pull
shaft out by the nut.
A35C48A
1
2
1. E-RAVE shaft
2. Hammer puller
Push bearing out of shaft.
Installation
Reverse removal steps. However, pay attention
to the following.
When installing new bearing on shaft, use an ap-
propriate pusher that seats against the inner race
of bearing. Drive shaft in housing until it bottoms.
When installing drive gears no. 7,ensuretomesh
gearsasshown.
A35C0LA
1
CENTER VALVE
1. Mesh in 1
st
tooth of center valve gear
A35C0MA
1
SIDE VALVE
1. Mesh gear in 2
nd
tooth of side valve gear
Ensure that after torquing screws, the shaft gears
are properly aligned with valve gears.
48 mmr2005-148
