Section 11 WIRING DIAGRAMS
Subsection 01 (WIRING DIAGRAMS)
A32E3ZA
1
2

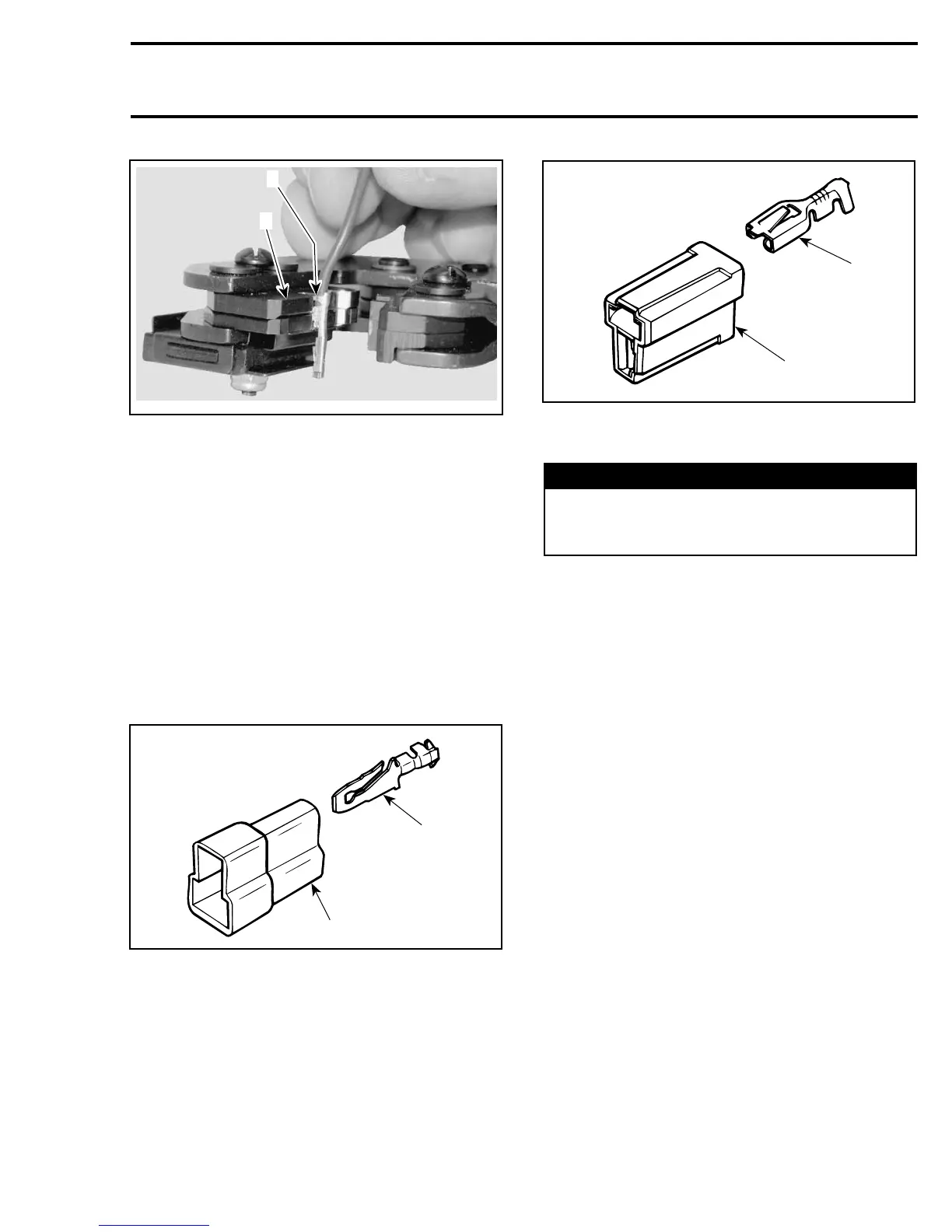

1. Top of terminal tabs
2. Aligntabswithpliersedge
Crimp terminal. Ensure no tiny wire goes out of
terminal. This might cause strange problems of
the electrical system.
TAB AND RECEPTACLE
CONNECTORS INSTALLATION
Prior to installing, make sure locking tab is suffi-
ciently lifted to properly lock.
Insert tab and receptacle connectors in their re-
spective housings as shown in following illustra-
tions. Push sufficiently so that they snap. Try
pulling wire to ensure they are properly locked.
A00E1GA
1
2
1. Tab
2. Housing
A00E1FA
1
2
TYPICAL
1. Receptacle
2. Housing
WARNING
Keep wires away from any rotating, moving,
heating, vibrating or sharp edge. Use proper
fastening devices as required.
