Section 07 REAR SUSPENSION
Subsection 02 (SC 4 SUSPENSION)
1
A03F3SA
2
TYPICAL

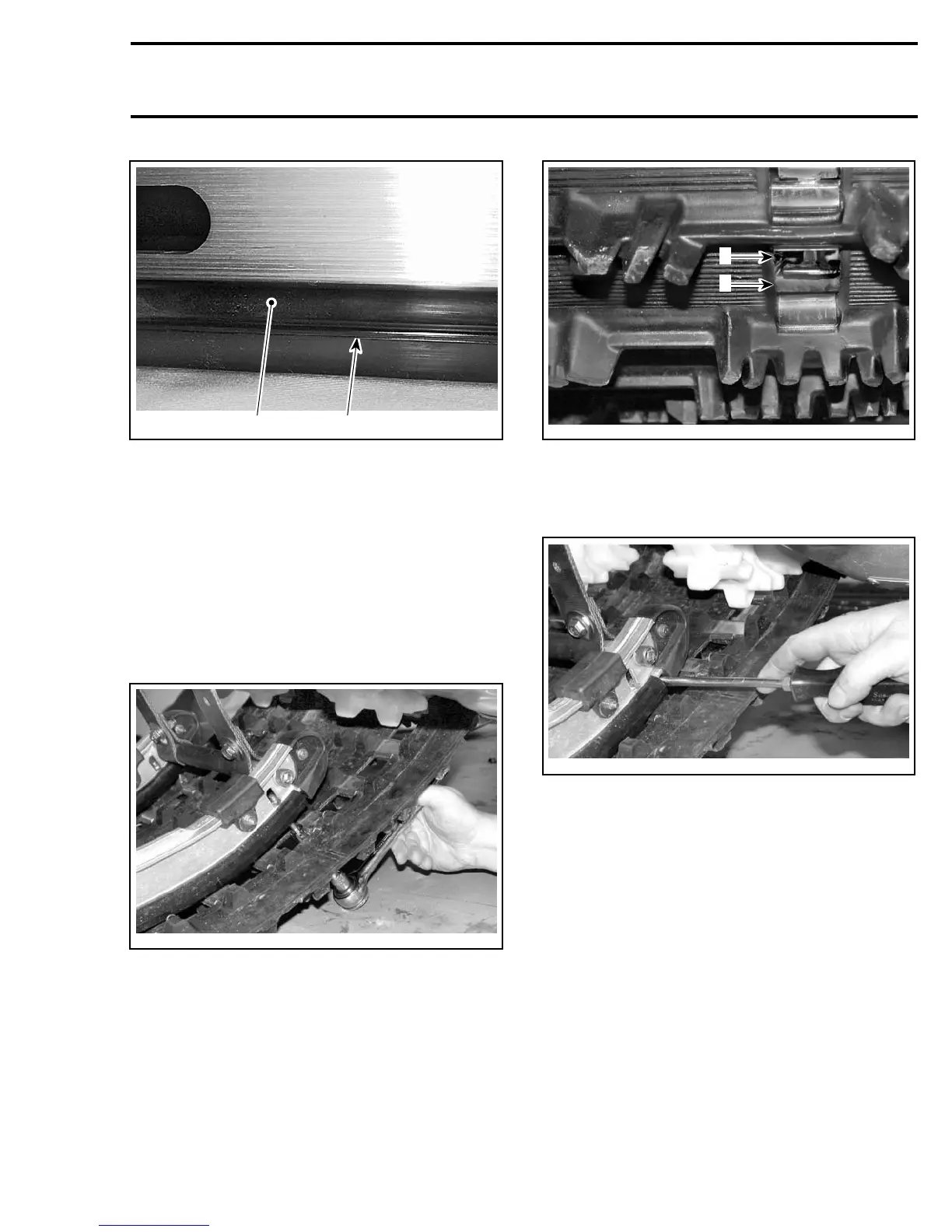

1. Slider shoe
2. Molding line (wear limit indicator)
Replace slider shoes when wear limit is reached.
CAUTION: Slider shoes must always be re-
placed in pairs.
SLIDER SHOE REMOVAL
Lift rear of vehicle and support it off the ground.
Completely loosen track tension.
Remove nut and screw of each runner.
A33F5RA
REMOVE NUT AND SCREW OF EACH RUNNER
Align track window with slider shoe.
A33F5SA
2
1
TYPICAL
1. Track window
2. Slider shoe
Using a pry bar or screw driver, push slider shoe
until it comes in contact with track.
A33F5TA
PUSH ON SLIDER SHOE
Using locking pliers, pull slider shoe thru track win-
dow to remove.
NOTE: If necessary, lubricate track window to fa-
cilitate slider shoe removal.
mmr2005-139 263
