Section 08 STEERING/FRONT SUSPENSION
Subsection 02 (FRONT SUSPENSION)
A33F27A

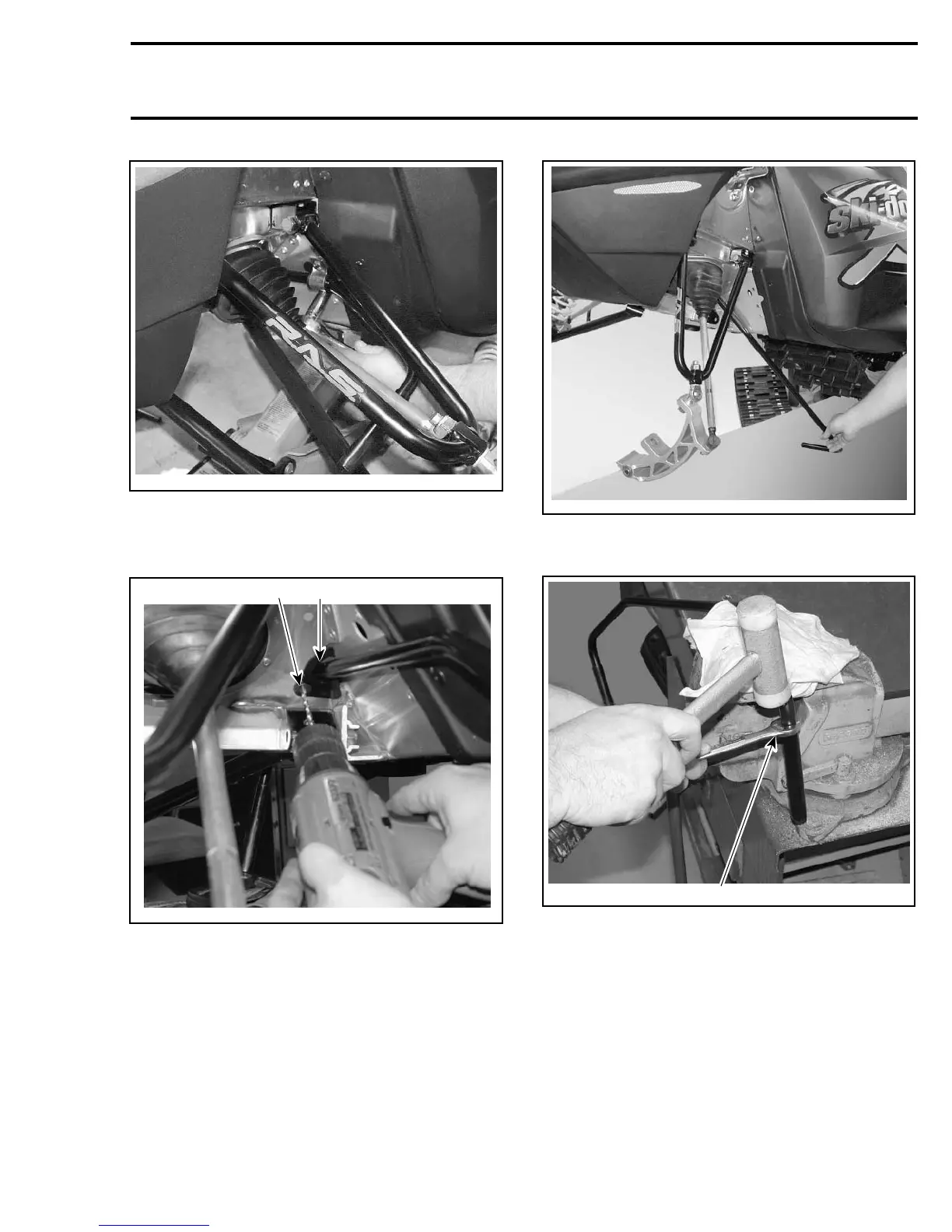

Remove clamps no. 22 and bushings no. 23.
Using a 4.8 mm (3/16 in) drill bit, drill rivet no. 24
out. Remove cap.
1
A33F23A
2
1. Drill rivet out with a 4.8 mm (3/16 in) drill bit
2. Cap
Lift front of vehicle enough so that anti-sway bar
no. 7 can be rotated downward to allow to slide it
out.
A33F24A
To remove bushing no. 25,usea13mm(1/2in)
open wrench and tap bushing out as shown.
1
A33F25A
1. Use a 13 mm (1/2 in) open wrench to push bushing out
Mach Z
Remove screws retaining link rod to anti-sway bar.
Remove screws no. 21 from retaining clamps.
Remove retaining clamps no. 22 and bushings
no. 23.
Turn handlebar completely to the right.
Remove anti-sway bar no. 7.
mmr2005-142 299
