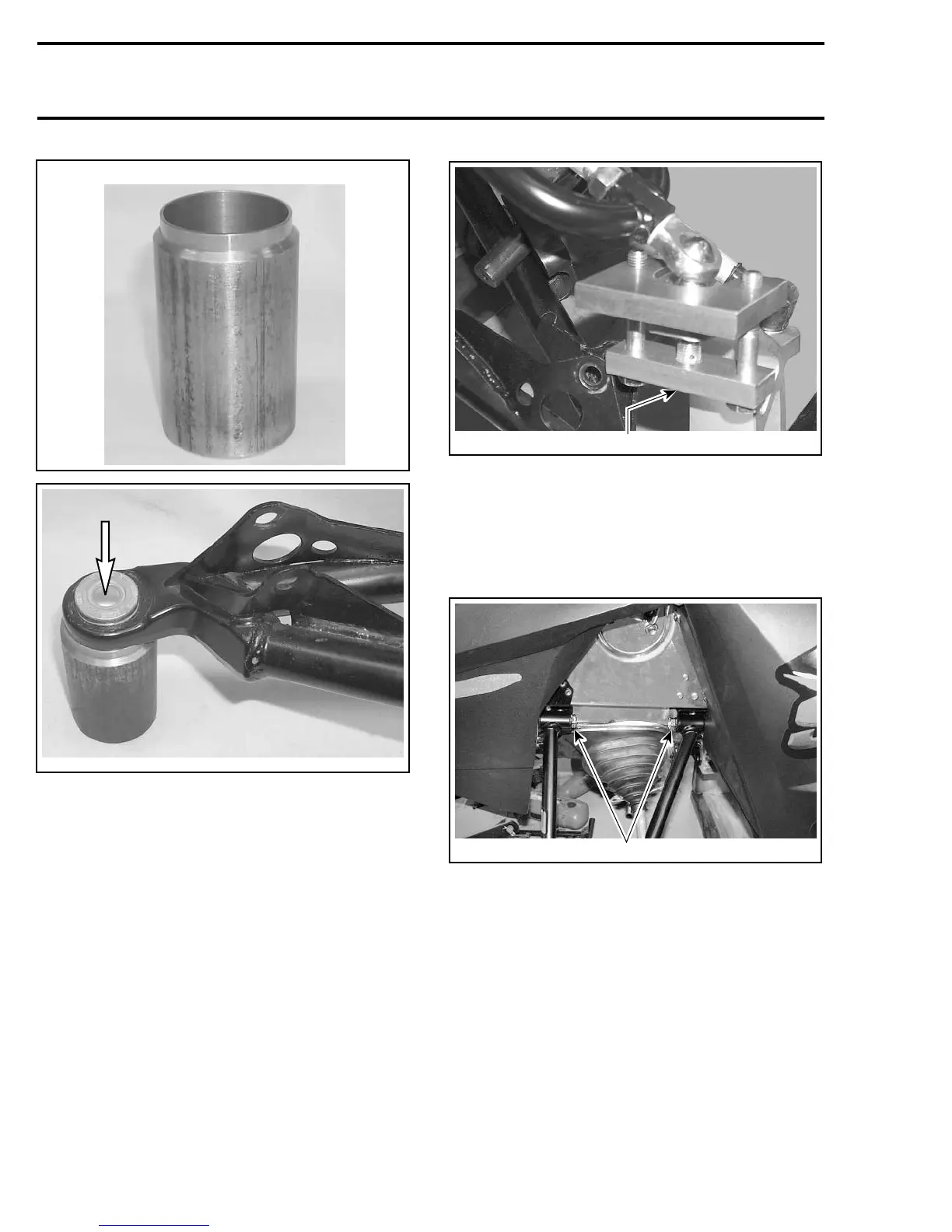

Section 08 STEERING/FRONT SUSPENSION
Subsection 02 (FRONT SUSPENSION)
529 035 873
A33F1ZA
A33F20A
TYPICAL
Tie Rod
Refer to STEERING SYSTEM section and remove
tie rod from ski leg.
Upper Arm
Remove cotter pin no. 31 and unscrew ball joint
nut no. 32.
Install ball joint remover (P/N 529 035 827) and
detach ball joint no. 15 from ski leg.
529 035 827
A33F2BA
Use a 11 mm (7/16 in) open wrench to hold ball
joint housing and unscrew nut no. 16, then re-
move ball joint from upper arm.
Remove upper arm no. 14 from frame. For
screws no. 19 removal, hold nuts no. 20 from
engine compartment.
1
A33F21A
1. Remove screws while holding nuts from engine compartment
Anti-Sway Bar
Summit
Remove shock absorbers, anti-sway bar slider
blocks and unfasten lower ball joints from ski
legs.
Remove screws no. 21 from retaining clamps.
298 mmr2005-142
