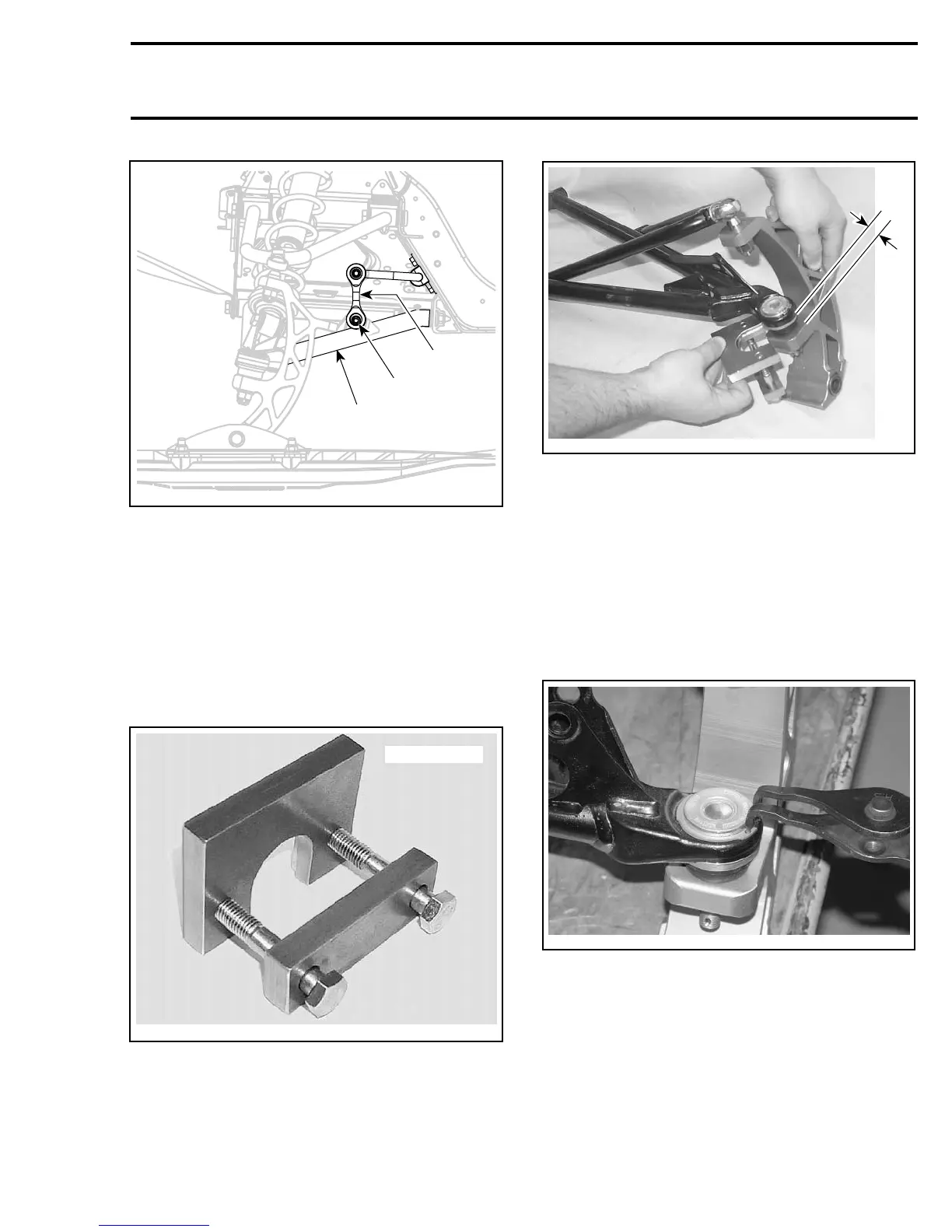

Section 08 STEERING/FRONT SUSPENSION
Subsection 02 (FRONT SUSPENSION)
2
A35F04A
3
1
1. Remove screw
2. Link rod
3. Lower A-arm
Summit and Mach Z
Remove cotter pin no. 8 and unscrew ball joint nut
no. 9.
Raise lower arm no. 10 so that ball joint no. 11
becomes parallel with ski leg no. 12.
Install ball joint remover (P/N 529 035 827) and
detach ball joint from ski leg.
529 035 827
A33F1XA
1
A33F1YA
TYPICAL
1. Ball joint parallel with ski leg
Remove lower arm no. 10 from frame. For front
screw no. 17 removal, hold nut no. 18 from engine
compartment.
To remove ball joint, proceed as follows:
– Remove snap ring no. 13.
– Install ball joint remover support (P/N 529 035
873) under joint.
– Press joint out.
A33F1WA
TYPICAL
mmr2005-142 297
