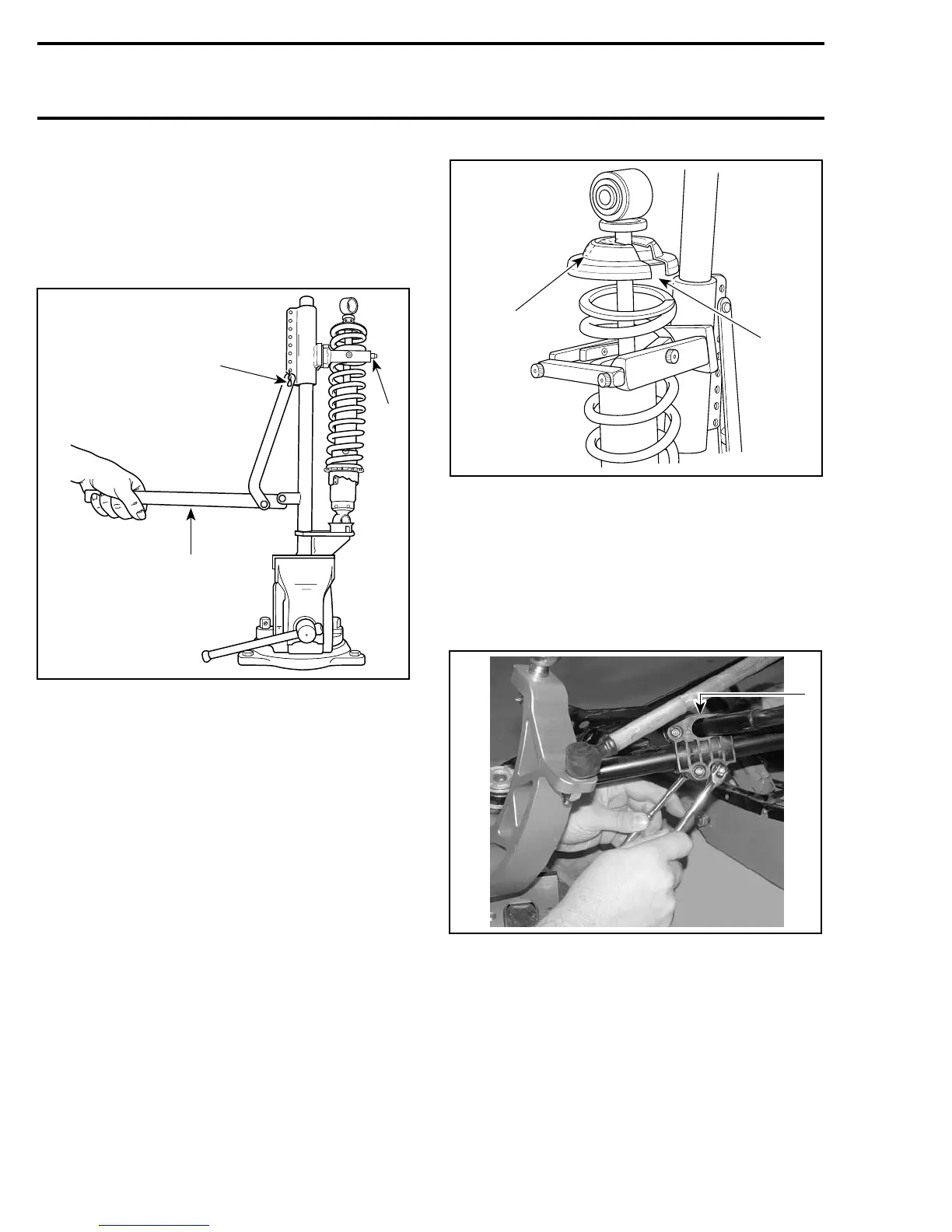

Section 08 STEERING/FRONT SUSPENSION
Subsection 02 (FRONT SUSPENSION)
Mount shock absorber in it and turn shock ab-
sorber so that spring coils match spring compres-
sor.
Close and lock the bar. Adjust the handle at hori-
zontal position by changing the position of the cle-
vis pin.
1
A01B4LA
2
3
TYPICAL
1. Clevis pin
2. Bar
3. Handle horizontal
Push down on the handle until it locks. Remove
spring stopper then release handle.
Mach Z
At assembly, cap opening no. 30 must be 180°
from spring stopper no. 29 opening.
A03F12A
1
2
1. Cap opening
2. Spring stopper opening
Lower Arm
Remove shock absorber.
Summit
Remove sliding blocks no. 6 of anti-sway bar
no. 7.
1
A33F1VA
1. Sliding blocks
Mach Z
Remove screw retaining link rod to lower A-arm.
296 mmr2005-142
