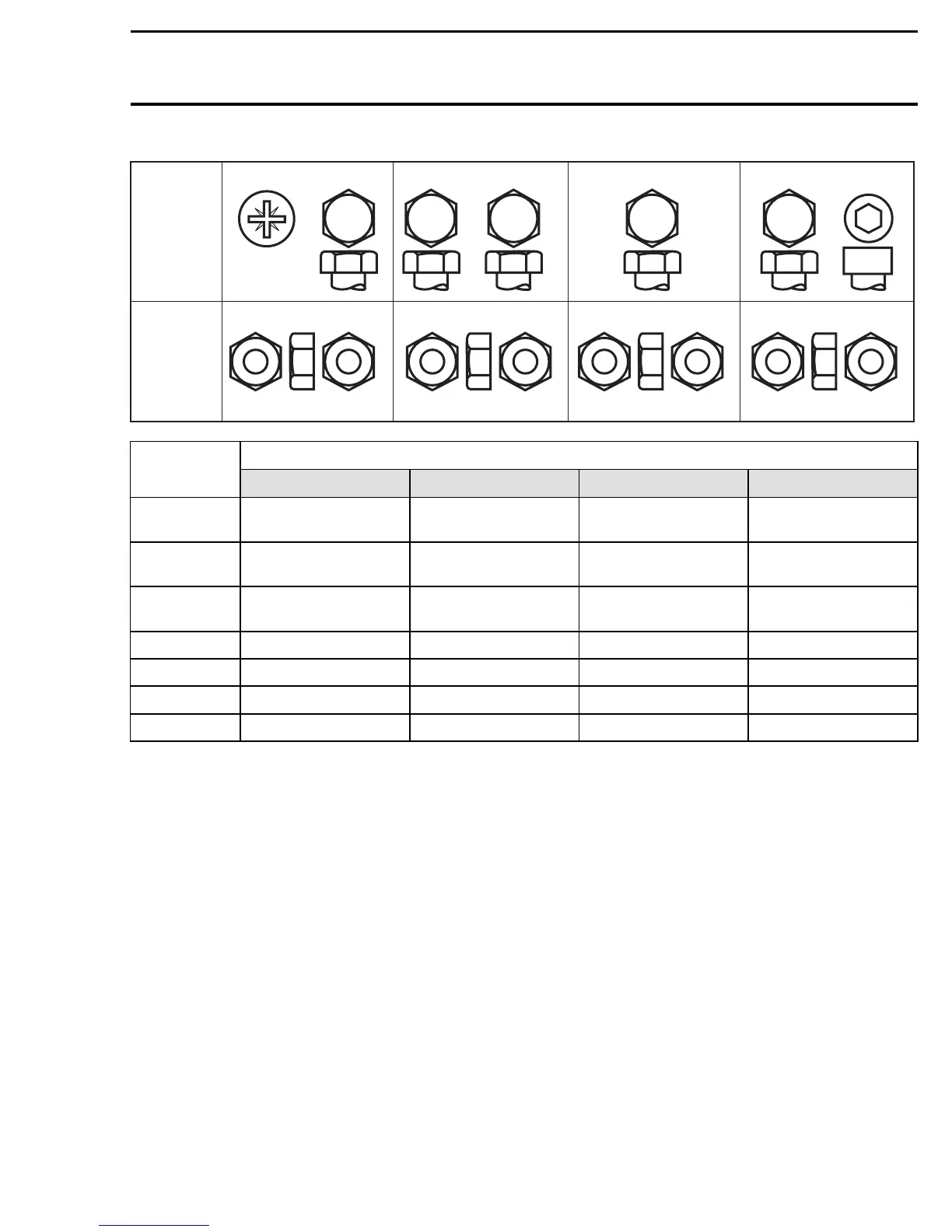

FASTENER GRADE/TORQUE
FASTENER
SIZE
5.8
Grade
8.8
Grade
10.9
Grade
12.9
Grade
M4
1.5 – 2N•m
(13 – 18 lbf•in)
2.5 – 3N•m
(22 – 27 lbf•in)
3.5 – 4N•m
(31 – 35 lbf•in)
4 – 5N•m
(35 – 44 lbf•in)
M5
3 – 3.5 N•m
(27 – 31 lbf•in)
4.5 – 5.5 N•m
(40 – 47 lbf•in)
7 – 8.5 N•m
(62 – 75 lbf•in)
8 – 10 N•m
(71 – 89 lbf•in)
M6
6.5 – 8.5 N•m
(58 – 75 lbf•in)
8 – 12 N•m
(71 – 106 lbf•in)
10.5 – 15 N•m
(93 – 133 lbf•in)
16 N•m (142 lbf•in)
M8 15 N•m(11lbf•ft) 24.5 N•m(18lbf•ft) 31.5 N•m(23lbf•ft) 40 N•m(30lbf•ft)
M10 29 N•m(21lbf•ft) 48 N•m(35lbf•ft) 61 N•m(45lbf•ft) 72.5 N•m(53lbf•ft)
M12 52 N•m(38lbf•ft) 85 N•m(63lbf•ft) 105 N•m(77lbf•ft) 127.5 N•m(94lbf•ft)
M14 85 N•m(63lbf•ft) 135 N•m(100lbf•ft) 170 N•m (125 lbf•ft) 200 N•m (148 lbf•ft)
