21. Installation
The following installation instructions allow the user
to assemble the ventilator and functionally test the
ventilator.
The following is the order for installation.
a. Trolley assembly.
b. Ventilator mounting.
c. Application of overlays.
d. Back-up battery connection.
e. Mains cable attachment.
f. Water trap attachment.
21.0.1 Tools required for trolley assembly
5mm A/F Allen key Qty 1
3mm A/F Allen key Qty 1

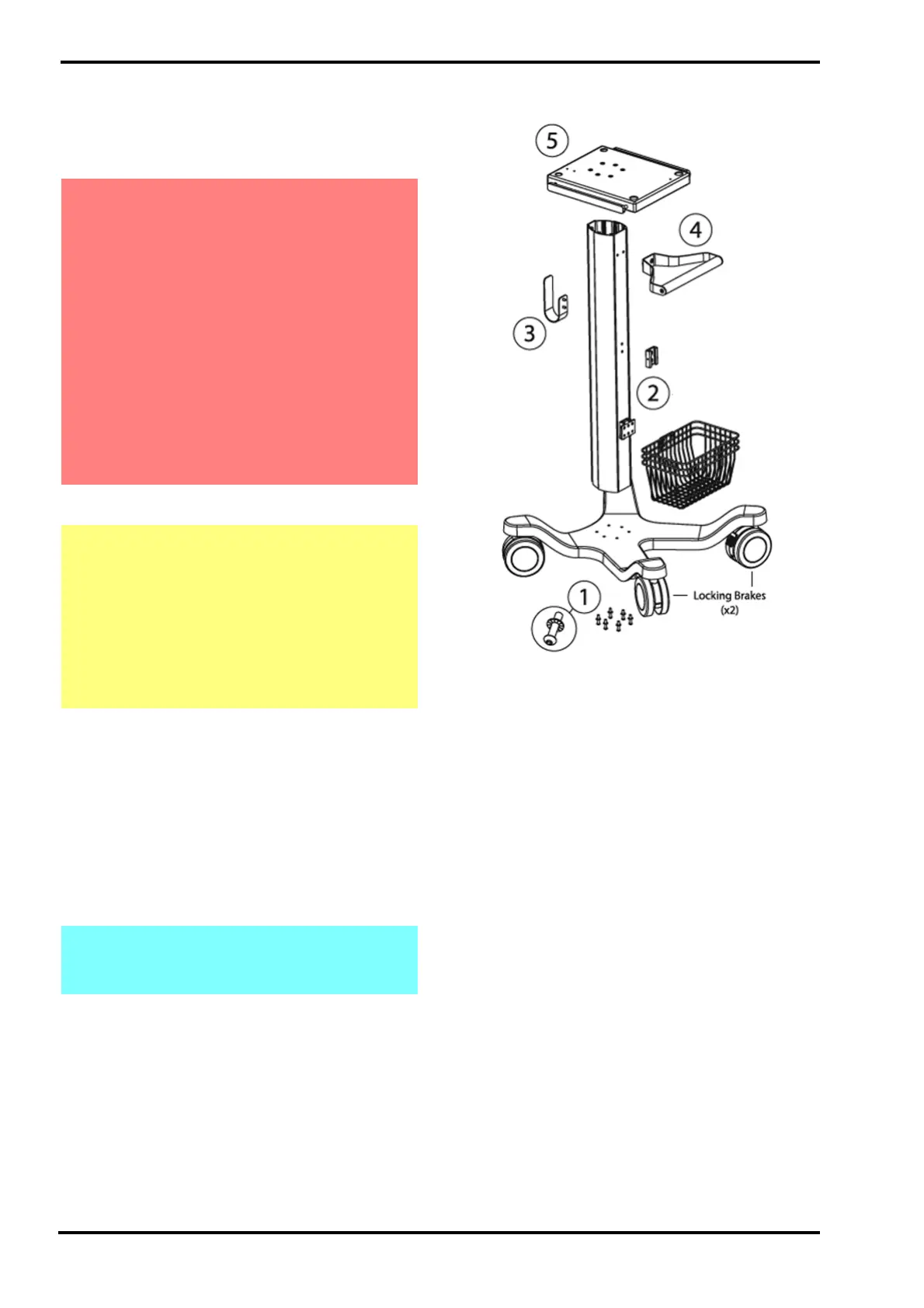

21.1 Trolley assembly
1. Attach central column to wheel base using 6
button head screws and spring washers.
2. Slide the basket into the lower accessory mount,
an optional set screw is supplied for locking.
3. Attach hook to extrusion with 2xM6 countersunk
screws.
4. Fit handle, using 2xM6 countersunk screws.
5. Attach top plate to the centre column using 6xM6
countersunk screws.
Warnings: The ventilator weighs 22kg ±0.5kg.
Failure to secure the ventilator to the trolley
can cause the ventilator to fall off when in
transit.
Failure to secure the mains inlet cable to the
ventilator can cause the mains to be
disconnected whilst in use.
Failure to secure either the mains cable or the
ventilator, places the machine in an unsafe
state, and the ventilator should not be used
until these two items are rectified.
If unsure on how to commission the ventilator
refer the unit to qualified service personnel or
contact the SLE service department.
Caution: Failing to install the supplied water trap*
will increase the risk of liquid contamination.
The water traps must be manually drained. If
fitted, the user should be made aware to the
draining procedure.
* Supplied in the following export fittings kits:
NF5000/EXP, NF5000/NFD, NF5000/DIN &
NF5000/CN
Note: The ventilator is supplied with a
commission procedure in the accessories
box.
