Page 84
16. Basic Set-up
16.1 Pre set-up checks
Check that the humidifier is turned on. (Refer to the
manufactures instructions for more details).
Check that the humidification chamber is filled with
appropriate sterile water to the designated level.
Check that the patient circuit heating connector is
connected to the humidifier and is secure. (Refer to
the manufactures instructions for more details).
Check the patient circuit, make sure all the
connections are secure and that the water trap is
empty and upright.
Check that the humidifier temperature probes are
correctly inserted into the patient circuit monitoring
ports.
For the setup procedure a test lung needs to be
fitted to the patient circuit.
Check that the ventilator has passed the Pre-use
procedure on page 64.

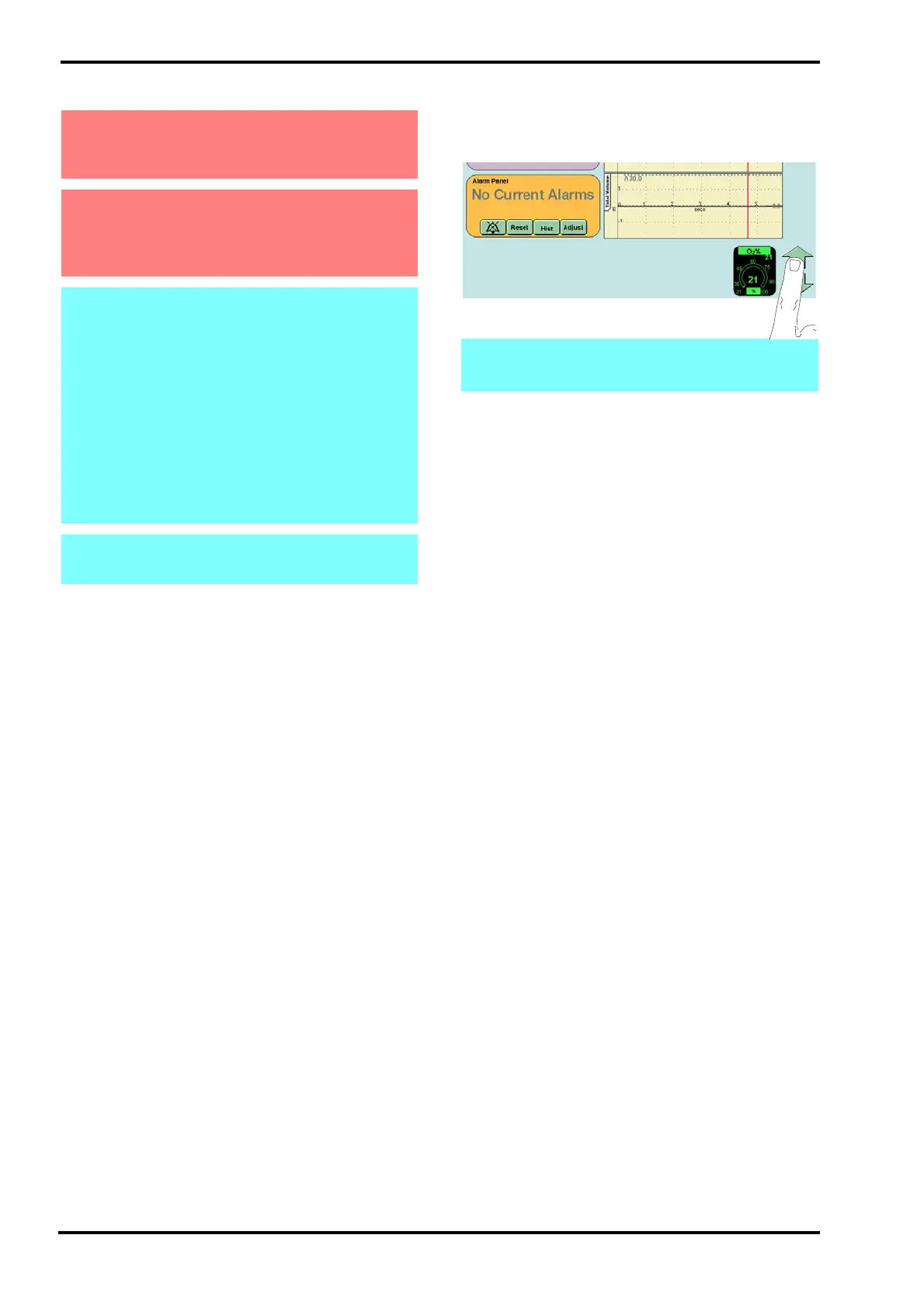

16.2 Setting the O
2
%
In the Ventilation Off mode select the percentage of
O
2
% required per the prescription.
Select the required mode of ventilation.
For CPAP see section 16.3 on page 85.
For CMV see section 16.4 on page 87.
For PTV see section 16.5 on page 89.
For PSV see section 16.6 on page 91.
For SIMV see section 16.7 on page 93.
For HFO Only see section 16.8 on page 96.
For HFO+CMV see section 16.9 on page 98.
Warning: The ventilator must not be
connected to the patient during the general
set-up procedure.
Warning: The user should never enter
Ventilation Off mode when connected to a
patient. The ventilator does not ventilate in
this mode.
Note: The basic set-up routines described in
this chapter are only to allow the user (i.e.
clinician/medical staff) to enter each mode in
a safe manner. It is the responsibility of the
user to set safe ventilation parameters. The
ventilation parameters stated in this chapter
are used only to guide the user, if the user
deems these parameters unsuitable for the
patient then appropriate parameters should
be selected. The parameters stated in this
chapter should never override the user
choice of ventilator settings.
Note: Only SLE approved circuits should be
used with this ventilator.
Note: The O
2
% can be set in the preview of each
selected mode.
