Page 182

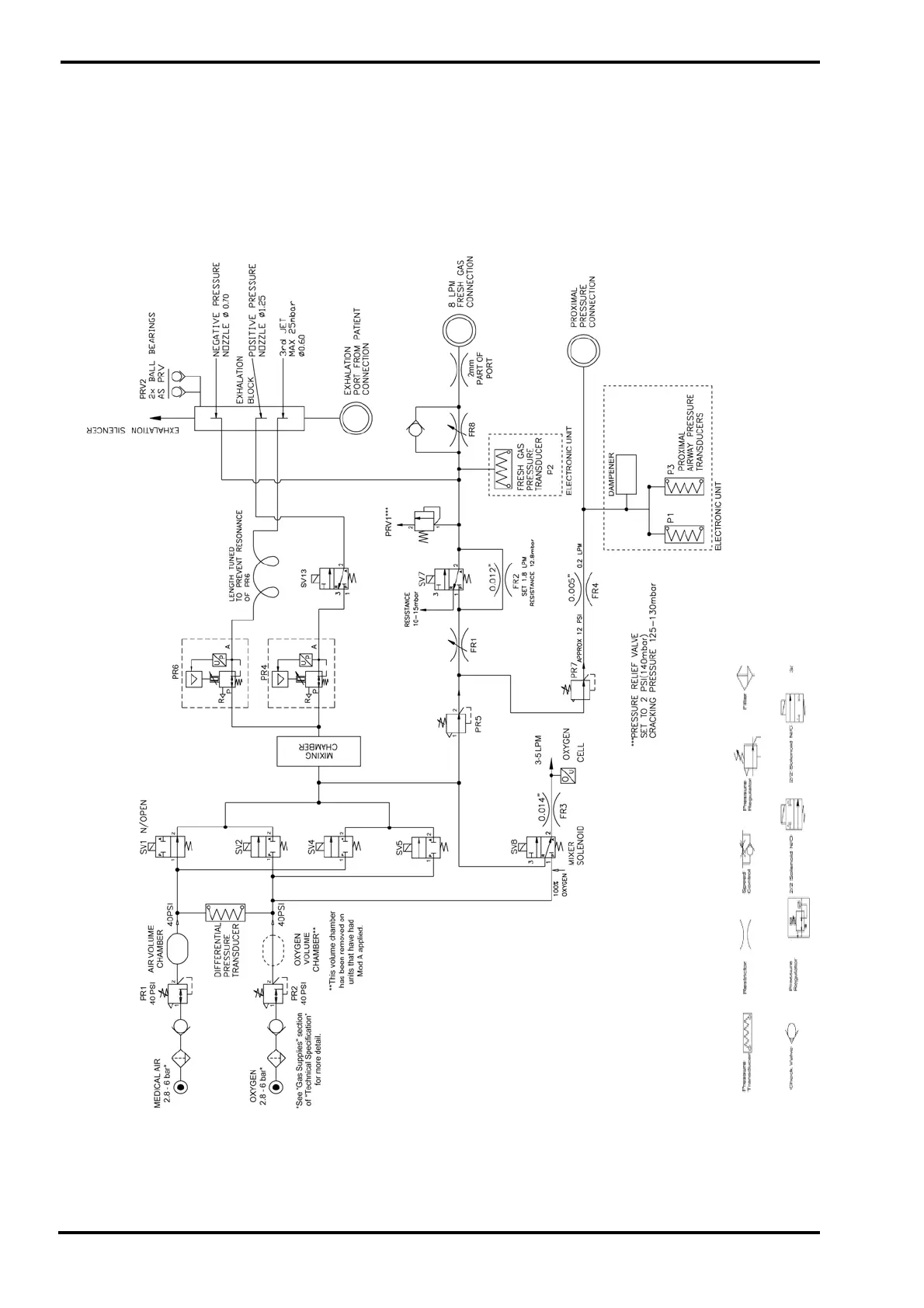

33. Pneumatic Unit Schematic

SLE4000 Model H, K & N

Below is a schematic representation of the

pneumatic unit of the ventilator.
