Page 59

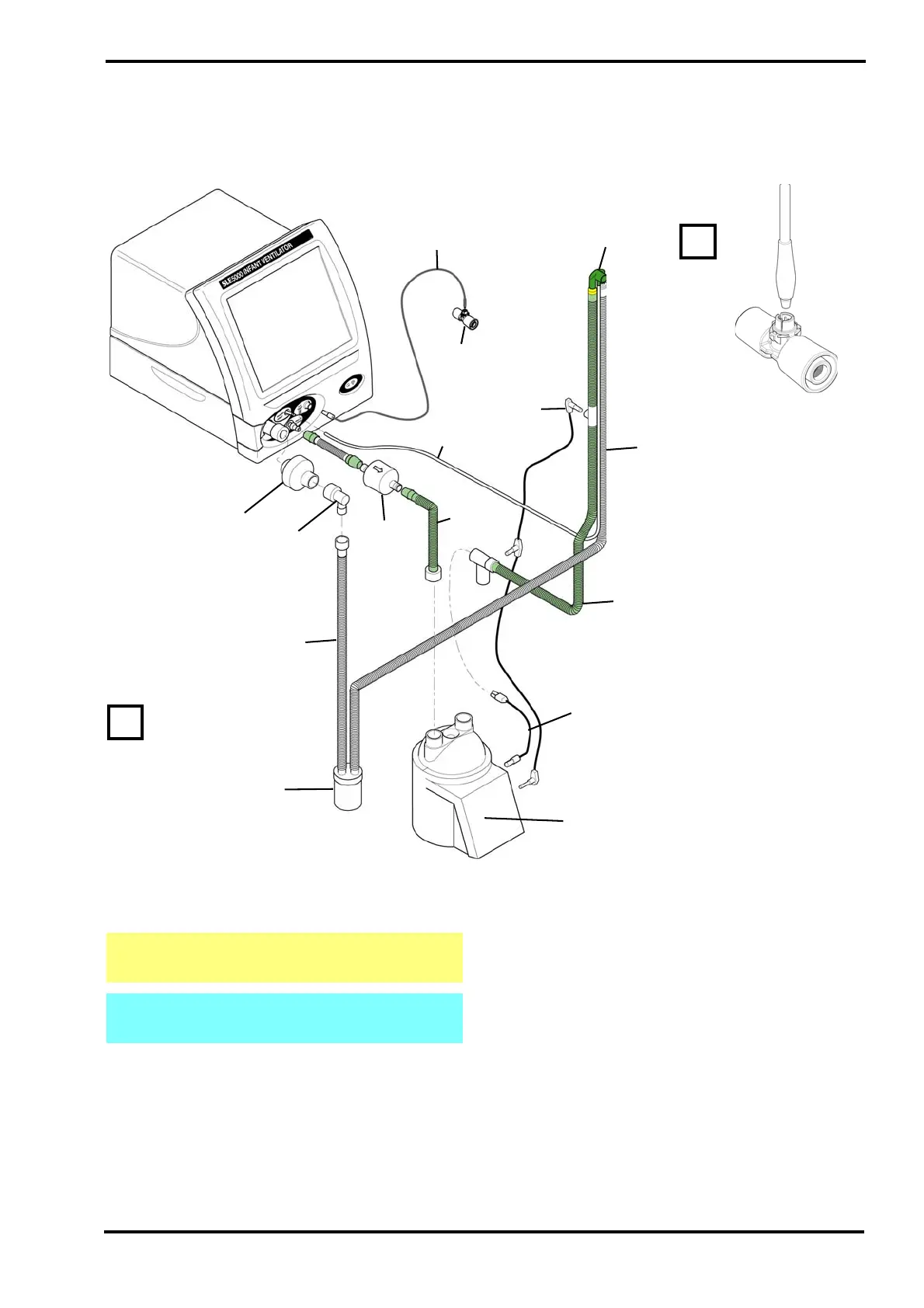

Step 4. Connect the Patient Circuit and Bacterial
Filters to the Ventilator
Connect the flow sensor cable to the sensor but do
not fit it into the patient circuit at this stage (D).
Connect the SLE approved patient circuit as shown
in the diagram above (E). Ensure the ET manifold is
occluded.
Setup the humidifier as per the manufacturer’s
instructions.
Step 5. Ventilator Setup Complete
If the ventilator is going to be used on a patient, the
user must carry out the Setup routine as described
in chapter ’13. Pre-use test’ on page 64.
E
Flow sensor
cable
Flow sensor
ET manifold
Temperature
probe
Expiratory
limb
Proximal airway tube
Inspiratory
limb
Heater wire
connector
Humidifier
Water trap
Humidifier
supply
line
Bacterial
Bacterial Filter
(SLE Nº:N2029)
(SLE Nº:N2587/000/001)
Expiratory
limb
Filter
90º Elbow
D
Caution: Ensure that all the conical
connectors are pushed together tightly.
Note: Patient circuit type and design may vary
from the diagram
