131
Basic Procedure for Wipe Settings
Chapter 5 Wipes
The buttons in the device control block are assigned to
the wipe position setting as follows.
2
Press the [MAIN] button or [SUB] button, turning it
on.
3
Press the [POS] button, turning Position on.
4
Move the trackball or joystick, to set the wipe position.
By pressing the [X] button, turning it on, you can
restrict movement to the horizontal direction, and by
pressing the [Y] button, turning it on, you can restrict
movement to the vertical direction.

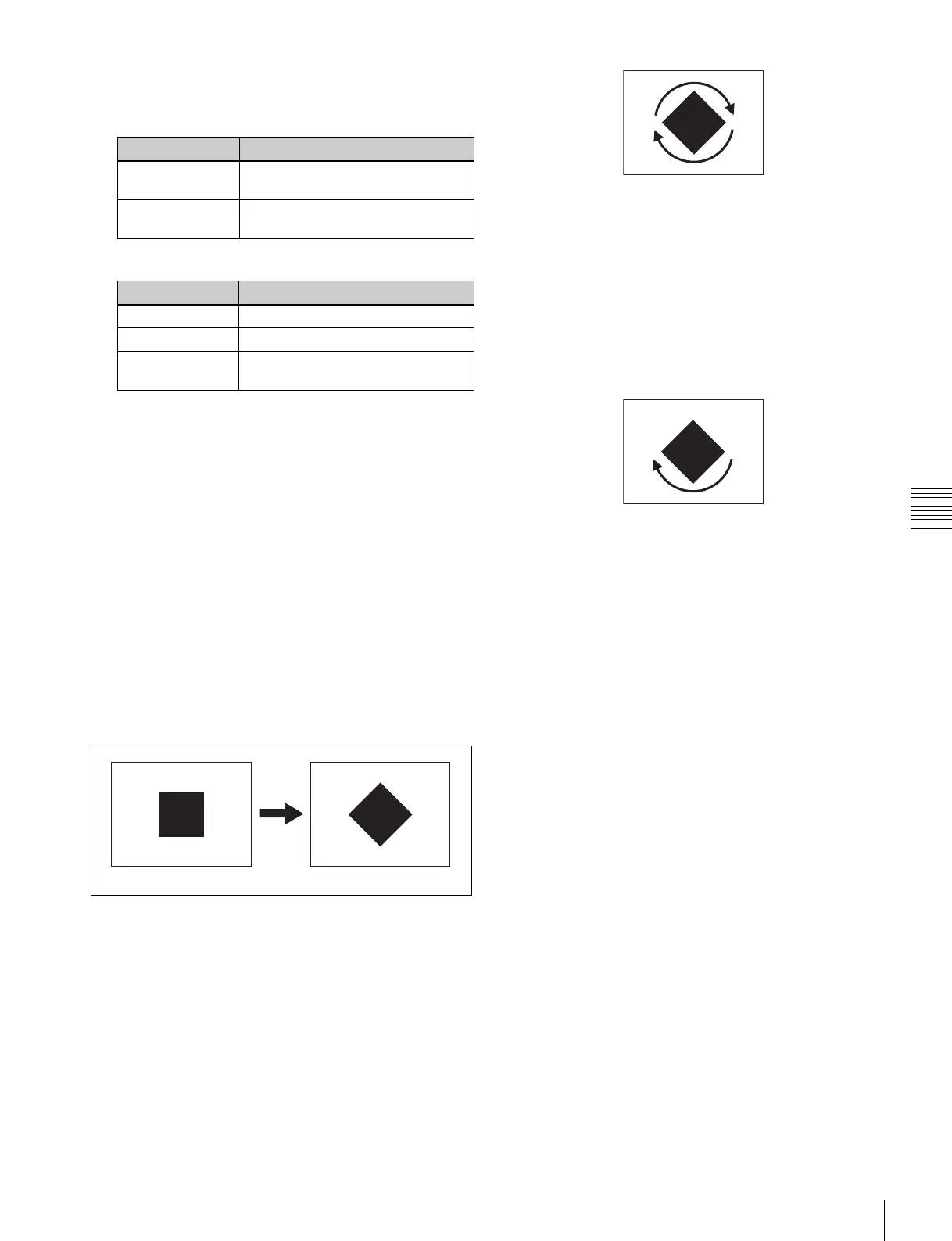

Rotating the wipe pattern (Rotation)
You can rotate the pattern. There are three rotation modes,
as follows.
Angle
This carries out a wipe with the pattern in a fixed angle.
The parameter Angle determines the angle of pattern
rotation.
• A value of –100.00 of the parameter Angle corresponds
to one whole turn counterclockwise.
• A value of +100.00 corresponds to one whole turn
clockwise.
• With a value of 0.00 there is no rotation.
Speed
Through the course of the transition the wipe pattern
rotates at a fixed specified speed.
The parameter Speed determines the speed of pattern
rotation.
• A value of –100.00 of the parameter Speed corresponds
to one turn per second counterclockwise.
• A value of +100.00 corresponds to one turn per second
clockwise.
• With a value of 0.00 the pattern is stationary.
Magnitude
Through the course of the transition the wipe pattern
rotates through the specified angle.
The parameter Angle determines an angle of pattern
inclination at the beginning of the transition.
• A value of –100.00 corresponds to the angle rotated one
whole turn counterclockwise.
• A value of +100.00 corresponds to the angle rotated one
whole turn clockwise.
• With a value of 0.00 the pattern is stationary.
The parameter Magnitude determines an angle of pattern
rotation through the course of the transition.
• A value of –200.00 corresponds to a rotation of two turns
counterclockwise.
• A value of +200.00 corresponds to a rotation of two turns
clockwise.
• With a value of 0.00 the pattern is stationary.
You can apply rotation independently to the main pattern
and sub pattern.
1
In the M/E-1 >Wipe menu, select HF5 ‘Main Modify.’
The Main Modify menu appears.
2
In the <Rotation> group, select the rotation type.
Angle: Incline the pattern through a fixed angle.
Speed: Rotate at a fixed rate.
Magnitude: Rotate through a particular angle during
the course of the transition.
3
According to the selection in step 2, set the following
parameters.
Table 1: Buttons and assigned settings
Button name Setting
MAIN Wipe position for common transition
(main pattern)
SUB Wipe position for common transition
(sub pattern)
Table 2: Buttons assigned to functions
Button name Function
POS Toggle Position on or off.
X, Y Fix the operating direction.
CTR Return the pattern position to the
center of the screen.
Angle Off
Angle On
